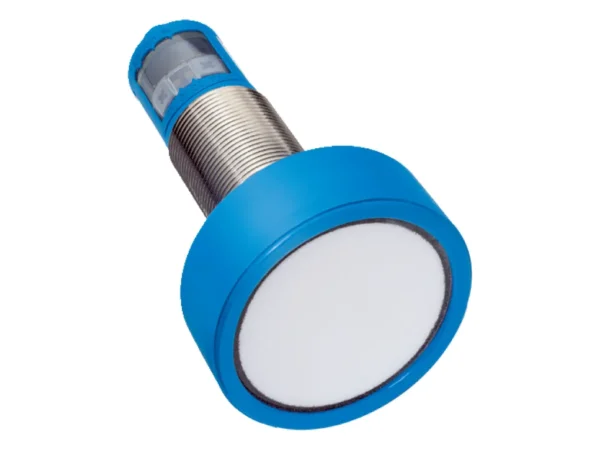

Name: SICK 6036920 | Ultrasonik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 6036920
Price: 4200.00 TRY
Availability: InStock

Tecnichal data

Mechanics/electronics

Supply voltage V_s	DC 9 V … 30 V
Power consumption	≤ 2.4 W
Initialization time	< 300 ms
Design	Cylindrical
Housing material	Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin)
Thread size	M30 x 1.5
Connection type	Male connector, M12, 5-pin
Indication	LED display, 2 x LED
Weight	270 g
Sending axis	Straight
Dimensions (W x H x D)	65 mm x 65 mm x 105 mm
Enclosure rating	IP65 / IP67
Protection class	III

Safety-related parameters

MTTF_D	101 years
DC_avg	0%

Performance

Operating range, limiting range	600 mm … 6,000 mm, 8,000 mm
Target	Natural objects
Resolution	≥ 0.18 mm
Repeatability	± 0.15 %
Accuracy	± 1 %
Temperature compensation	✔
Response time	240 ms
Output time	60 ms
Ultrasonic frequency (typical)	80 kHz
Detection area (typical)	See diagrams
Additional function	Teach-in of analog output Scaling of analog outputs Invertable analog output Automatic selection of analog current or voltage output Synchronization of up to 50 sensors Multiplexing: no cross talk of up to 50 sensors Adjustable measurement filters: Measured value filters/Filter strength/Foreground suppression/Detection area/Sensitivity and sound beam Display (can be deactivated) Reset to factory default

Interfaces

Analog output
Number	1
Type	Current output / voltage output
Function	Automatic selection of analog current or voltage output dependent on load
Current	4 mA … 20 mA, ≤ 500 Ω
Voltage	0 V … 10 V, ≥ 100,000 Ω
Resolution	12 bit

Multifunctional input (MF)

1 x MF

Ambient data

Ambient temperature, operation	–25 °C … +70 °C
Ambient temperature, storage	–40 °C … +85 °C

Classifications
