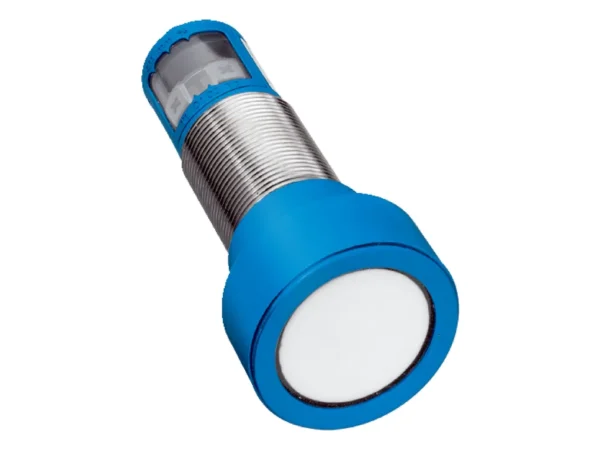

Home Ultrasonik Sensörler UM30-214111 ULTRASONIC SENSOR – 6037662 🔍 UM30-214111 ULTRASONIC SENSOR – 6037662 ✉ Teklif Al Teklif Al Stok kodu: 6037662 Kategoriler: Ultrasonik Sensörler Marka: SICK Açıklama Tecnichal data Mechanics/electronics Supply voltage Vs DC 9 V … 30 V Power consumption ≤ 2.4 W Initialization time < 300 ms Design Cylindrical Housing material Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) Thread size M30 x 1.5 Connection type Male connector, M12, 5-pin Indication LED display, 2 x LED Weight 210 g Sending axis Straight Dimensions (W x H x D) 47.5 mm x 47.5 mm x 102 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 350 mm … 3,400 mm, 5,000 mm Target Natural objects Resolution ≥ 0.18 mm Repeatability ± 0.15 % Accuracy ± 1 % Temperature compensation ✔ Response time 180 ms Switching frequency 4 Hz Output time 43 ms Ultrasonic frequency (typical) 120 kHz Detection area (typical) See diagrams Additional function Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB) Teach-in of digital output Set levels of digital outputs Invertable digital output Set on delay digital output Synchronization of up to 50 sensors Multiplexing: no cross talk of up to 50 sensors Adjustable measurement filters: Measured value filters/Filter strength/Foreground suppression/Detection area/Sensitivity and sound beam Display (can be deactivated) Reset to factory default Interfaces Digital output Number 1 Type PNP Maximum output current IA ≤ 200 mA Multifunctional input (MF) 1 x MF Hysteresis 50 mm Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960 İlgili ürünler UM30-212111 ULTRASONIC SENSOR – 6037661SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-212112 ULTRASONIC SENSOR – 6037665SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git 873P 400mm Ultrasonic Sensor – 873P-D18P2-400-D5ALLEN BRADLEYUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-211112 ULTRASONIC SENSOR – 6037664SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git
Tecnichal data Mechanics/electronics Supply voltage Vs DC 9 V … 30 V Power consumption ≤ 2.4 W Initialization time < 300 ms Design Cylindrical Housing material Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) Thread size M30 x 1.5 Connection type Male connector, M12, 5-pin Indication LED display, 2 x LED Weight 210 g Sending axis Straight Dimensions (W x H x D) 47.5 mm x 47.5 mm x 102 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 350 mm … 3,400 mm, 5,000 mm Target Natural objects Resolution ≥ 0.18 mm Repeatability ± 0.15 % Accuracy ± 1 % Temperature compensation ✔ Response time 180 ms Switching frequency 4 Hz Output time 43 ms Ultrasonic frequency (typical) 120 kHz Detection area (typical) See diagrams Additional function Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB) Teach-in of digital output Set levels of digital outputs Invertable digital output Set on delay digital output Synchronization of up to 50 sensors Multiplexing: no cross talk of up to 50 sensors Adjustable measurement filters: Measured value filters/Filter strength/Foreground suppression/Detection area/Sensitivity and sound beam Display (can be deactivated) Reset to factory default Interfaces Digital output Number 1 Type PNP Maximum output current IA ≤ 200 mA Multifunctional input (MF) 1 x MF Hysteresis 50 mm Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960
