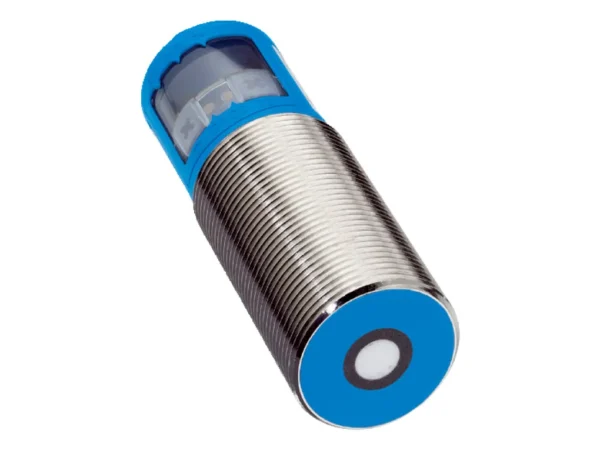

Home Ultrasonik Sensörler UM30-211113 ULTRASONIC SENSOR – 6036916 🔍 UM30-211113 ULTRASONIC SENSOR – 6036916 ✉ Teklif Al Teklif Al Stok kodu: 6036916 Kategoriler: Ultrasonik Sensörler Marka: SICK Açıklama Tecnichal data Mechanics/electronics Supply voltage Vs DC 9 V … 30 V Power consumption ≤ 2.4 W Initialization time < 300 ms Design Cylindrical Housing material Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) Thread size M30 x 1.5 Connection type Male connector, M12, 5-pin Indication LED display, 2 x LED Weight 150 g Sending axis Straight Dimensions (W x H x D) 30 mm x 30 mm x 84 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 30 mm … 250 mm, 350 mm Target Natural objects Resolution ≥ 0.18 mm Repeatability ± 0.15 % Accuracy ± 1 % Temperature compensation ✔ Response time 32 ms Output time 8 ms Ultrasonic frequency (typical) 320 kHz Detection area (typical) See diagrams Additional function Teach-in of analog output Scaling of analog outputs Invertable analog output Synchronization of up to 50 sensors Multiplexing: no cross talk of up to 50 sensors Adjustable measurement filters: Measured value filters/Filter strength/Foreground suppression/Detection area/Sensitivity and sound beam Display (can be deactivated) Reset to factory default Interfaces Analog output Number 1 Type Current output / voltage output Function Automatic selection of analog current or voltage output dependent on load Current 4 mA … 20 mA, ≤ 500 Ω Voltage 0 V … 10 V, ≥ 100,000 Ω Resolution 12 bit Multifunctional input (MF) 1 x MF Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960 İlgili ürünler UM30-215113 ULTRASONIC SENSOR – 6036920SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git 873P 900mm Ultrasonic Sensor – 873P-D18P2-900-D5ALLEN BRADLEYUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-213111 ULTRASONIC SENSOR – 6037537SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-213118 ULTRASONIC SENSOR – 6036923SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git
Tecnichal data Mechanics/electronics Supply voltage Vs DC 9 V … 30 V Power consumption ≤ 2.4 W Initialization time < 300 ms Design Cylindrical Housing material Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) Thread size M30 x 1.5 Connection type Male connector, M12, 5-pin Indication LED display, 2 x LED Weight 150 g Sending axis Straight Dimensions (W x H x D) 30 mm x 30 mm x 84 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 30 mm … 250 mm, 350 mm Target Natural objects Resolution ≥ 0.18 mm Repeatability ± 0.15 % Accuracy ± 1 % Temperature compensation ✔ Response time 32 ms Output time 8 ms Ultrasonic frequency (typical) 320 kHz Detection area (typical) See diagrams Additional function Teach-in of analog output Scaling of analog outputs Invertable analog output Synchronization of up to 50 sensors Multiplexing: no cross talk of up to 50 sensors Adjustable measurement filters: Measured value filters/Filter strength/Foreground suppression/Detection area/Sensitivity and sound beam Display (can be deactivated) Reset to factory default Interfaces Analog output Number 1 Type Current output / voltage output Function Automatic selection of analog current or voltage output dependent on load Current 4 mA … 20 mA, ≤ 500 Ω Voltage 0 V … 10 V, ≥ 100,000 Ω Resolution 12 bit Multifunctional input (MF) 1 x MF Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960
