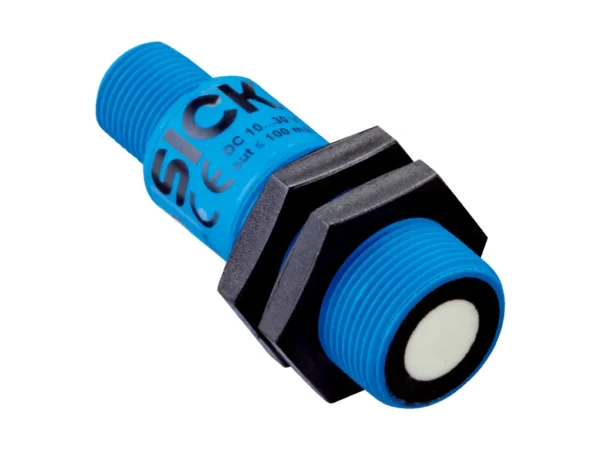

Home Ultrasonik Sensörler UM18-217167101 – 6072873 🔍 UM18-217167101 – 6072873 ✉ Teklif Al Teklif Al Stok kodu: 6072873 Kategoriler: Ultrasonik Sensörler Marka: SICK Açıklama Tecnichal data Mechanics/electronics Supply voltage Vs DC 15 V … 30 V Power consumption ≤ 1.2 W Initialization time < 300 ms Design Cylindrical Housing material Plastic (PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) Thread size M18 x 1 Connection type Male connector, M12, 4-pin Indication 2 x LED Weight 15 g Sending axis Straight Dimensions (W x H x D) 18 mm x 18 mm x 52.7 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 20 mm … 150 mm, 250 mm Target Natural objects Resolution ≥ 0.2 mm Repeatability ± 0.15 % Accuracy ± 1 % Response time 32 ms Output time 8 ms Ultrasonic frequency (typical) 380 kHz Detection area (typical) See diagrams Additional function Teach-in of analog output Invertable analog output Reset to factory default Interfaces Analog output Number 1 Type Voltage output Voltage 0 V … 10 V, ≥ 100,000 Ω Resolution 12 bit Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Temperature drift 0.17 % / K Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960 İlgili ürünler UM30-211113 ULTRASONIC SENSOR – 6036916SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-214111 ULTRASONIC SENSOR – 6037662SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-211112 ULTRASONIC SENSOR – 6037664SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-214113 ULTRASONIC SENSOR – 6036919SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git
Tecnichal data Mechanics/electronics Supply voltage Vs DC 15 V … 30 V Power consumption ≤ 1.2 W Initialization time < 300 ms Design Cylindrical Housing material Plastic (PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) Thread size M18 x 1 Connection type Male connector, M12, 4-pin Indication 2 x LED Weight 15 g Sending axis Straight Dimensions (W x H x D) 18 mm x 18 mm x 52.7 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 20 mm … 150 mm, 250 mm Target Natural objects Resolution ≥ 0.2 mm Repeatability ± 0.15 % Accuracy ± 1 % Response time 32 ms Output time 8 ms Ultrasonic frequency (typical) 380 kHz Detection area (typical) See diagrams Additional function Teach-in of analog output Invertable analog output Reset to factory default Interfaces Analog output Number 1 Type Voltage output Voltage 0 V … 10 V, ≥ 100,000 Ω Resolution 12 bit Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Temperature drift 0.17 % / K Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960
