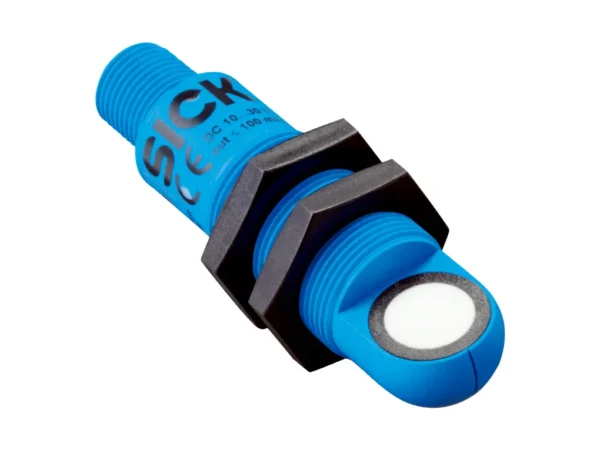

Home Ultrasonik Sensörler UM18-212167102 – 6072882 🔍 UM18-212167102 – 6072882 ✉ Teklif Al Teklif Al Stok kodu: 6072882 Kategoriler: Ultrasonik Sensörler Marka: SICK Açıklama Tecnichal data Mechanics/electronics Supply voltage Vs DC 15 V … 30 V Power consumption ≤ 1.2 W Initialization time < 300 ms Design Cylindrical Housing material Plastic (PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) Thread size M18 x 1 Connection type Male connector, M12, 4-pin Indication 2 x LED Weight 20 g Sending axis Angled Dimensions (W x H x D) 18 mm x 18 mm x 68.7 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 65 mm … 350 mm, 600 mm Target Natural objects Resolution ≥ 0.2 mm Repeatability ± 0.15 % Accuracy ± 1 % Response time 64 ms Output time 16 ms Ultrasonic frequency (typical) 400 kHz Detection area (typical) See diagrams Additional function Teach-in of analog output Invertable analog output Reset to factory default Interfaces Analog output Number 1 Type Voltage output Voltage 0 V … 10 V, ≥ 100,000 Ω Resolution 12 bit Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Temperature drift 0.17 % / K Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960 İlgili ürünler UM30-212112 ULTRASONIC SENSOR – 6037665SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-215118 ULTRASONIC SENSOR – 6036925SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-215113 ULTRASONIC SENSOR – 6036920SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-212111 ULTRASONIC SENSOR – 6037661SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git
Tecnichal data Mechanics/electronics Supply voltage Vs DC 15 V … 30 V Power consumption ≤ 1.2 W Initialization time < 300 ms Design Cylindrical Housing material Plastic (PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) Thread size M18 x 1 Connection type Male connector, M12, 4-pin Indication 2 x LED Weight 20 g Sending axis Angled Dimensions (W x H x D) 18 mm x 18 mm x 68.7 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 65 mm … 350 mm, 600 mm Target Natural objects Resolution ≥ 0.2 mm Repeatability ± 0.15 % Accuracy ± 1 % Response time 64 ms Output time 16 ms Ultrasonic frequency (typical) 400 kHz Detection area (typical) See diagrams Additional function Teach-in of analog output Invertable analog output Reset to factory default Interfaces Analog output Number 1 Type Voltage output Voltage 0 V … 10 V, ≥ 100,000 Ω Resolution 12 bit Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Temperature drift 0.17 % / K Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960
