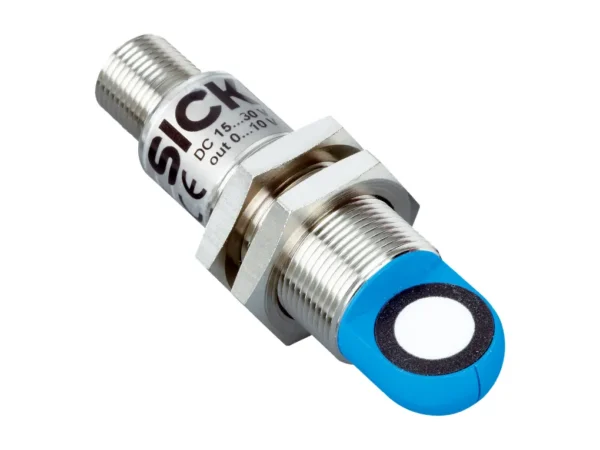

Home Ultrasonik Sensörler UM18-21112E212 – 6068442 🔍 UM18-21112E212 – 6068442 ✉ Teklif Al Teklif Al Stok kodu: 6068442 Kategoriler: Ultrasonik Sensörler Marka: SICK Açıklama Tecnichal data Mechanics/electronics Supply voltage Vs DC 10 V … 30 V Power consumption ≤ 1.2 W Initialization time < 300 ms Design Cylindrical Housing material Metal (nickel-plated brass, ultrasonic transducer: polyurethane foam, glass epoxy resin) Thread size M18 x 1 Connection type Male connector, M12, 5-pin Indication 2 x LED Weight 30 g Sending axis Angled Dimensions (W x H x D) 18 mm x 18 mm x 68.7 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 30 mm … 250 mm, 350 mm Target Natural objects Resolution ≥ 0.069 mm Repeatability ± 0.15 % Accuracy ± 1 % Temperature compensation ✔ Response time 32 ms Switching frequency 25 Hz Output time 8 ms Ultrasonic frequency (typical) 320 kHz Additional function Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB) Teach-in of digital output Invertible digital output Multifunctional input: external teach / synchronization / multiplexing Synchronization of up to 20 sensors Multiplexing: no cross talk of up to 20 sensors Reset to factory default Interfaces IO-Link ✔ , IO-Link V1.1 Function Process data, parameterization, diagnosis, data storage Digital output Number 2 Type Push-pull: PNP/NPN Maximum output current IA ≤ 100 mA Multifunctional input (MF) 1 x MF Hysteresis 3 mm Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960 İlgili ürünler UM30-215112 ULTRASONIC SENSOR – 6037668SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-211113 ULTRASONIC SENSOR – 6036916SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git ULTRASONIC REDIRECT.F. ULTRASONIC SENSOR – 5323658SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git RightSound Ultrasonic Sensor, Receiver, 4 Pin Micro QD on Pigtail – 873E-RDTT0750F4ALLEN BRADLEYUltrasonik Sensörler ₺4.200,00 Ürüne Git
Tecnichal data Mechanics/electronics Supply voltage Vs DC 10 V … 30 V Power consumption ≤ 1.2 W Initialization time < 300 ms Design Cylindrical Housing material Metal (nickel-plated brass, ultrasonic transducer: polyurethane foam, glass epoxy resin) Thread size M18 x 1 Connection type Male connector, M12, 5-pin Indication 2 x LED Weight 30 g Sending axis Angled Dimensions (W x H x D) 18 mm x 18 mm x 68.7 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 30 mm … 250 mm, 350 mm Target Natural objects Resolution ≥ 0.069 mm Repeatability ± 0.15 % Accuracy ± 1 % Temperature compensation ✔ Response time 32 ms Switching frequency 25 Hz Output time 8 ms Ultrasonic frequency (typical) 320 kHz Additional function Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB) Teach-in of digital output Invertible digital output Multifunctional input: external teach / synchronization / multiplexing Synchronization of up to 20 sensors Multiplexing: no cross talk of up to 20 sensors Reset to factory default Interfaces IO-Link ✔ , IO-Link V1.1 Function Process data, parameterization, diagnosis, data storage Digital output Number 2 Type Push-pull: PNP/NPN Maximum output current IA ≤ 100 mA Multifunctional input (MF) 1 x MF Hysteresis 3 mm Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960
