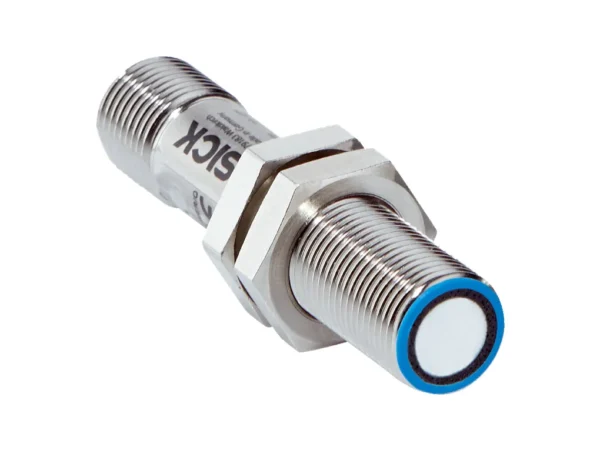

Home Ultrasonik Sensörler UM12-1192271 ULTRASONIC SENSOR – 6053549 🔍 UM12-1192271 ULTRASONIC SENSOR – 6053549 ✉ Teklif Al Teklif Al Stok kodu: 6053549 Kategoriler: Ultrasonik Sensörler Marka: SICK Açıklama Tecnichal data Mechanics/electronics Supply voltage Vs DC 15 V … 30 V Power consumption ≤ 1.2 W Initialization time < 300 ms Design Cylindrical Housing material Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) Thread size M12 x 1 Connection type Male connector, M12, 4-pin Indication 2 x LED Weight 15 g Sending axis Straight Dimensions (W x H x D) 12 mm x 12 mm x 60.1 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 40 mm … 240 mm, 350 mm Target Natural objects Resolution ≥ 0.069 mm Repeatability ± 0.15 % Accuracy ± 1 % Temperature compensation ✔ Response time 30 ms Output time 10 ms Ultrasonic frequency (typical) 500 kHz Additional function Teach-in of analog output Invertable analog output Reset to factory default Interfaces Analog output Number 1 Type Voltage output Voltage 0 V … 10 V, ≥ 100,000 Ω Resolution 12 bit Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960 İlgili ürünler UM30-214118 ULTRASONIC SENSOR – 6036924SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-212112 ULTRASONIC SENSOR – 6037665SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-211111 ULTRASONIC SENSOR – 6037660SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-213111 ULTRASONIC SENSOR – 6037537SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git
Tecnichal data Mechanics/electronics Supply voltage Vs DC 15 V … 30 V Power consumption ≤ 1.2 W Initialization time < 300 ms Design Cylindrical Housing material Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) Thread size M12 x 1 Connection type Male connector, M12, 4-pin Indication 2 x LED Weight 15 g Sending axis Straight Dimensions (W x H x D) 12 mm x 12 mm x 60.1 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 40 mm … 240 mm, 350 mm Target Natural objects Resolution ≥ 0.069 mm Repeatability ± 0.15 % Accuracy ± 1 % Temperature compensation ✔ Response time 30 ms Output time 10 ms Ultrasonic frequency (typical) 500 kHz Additional function Teach-in of analog output Invertable analog output Reset to factory default Interfaces Analog output Number 1 Type Voltage output Voltage 0 V … 10 V, ≥ 100,000 Ω Resolution 12 bit Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960
