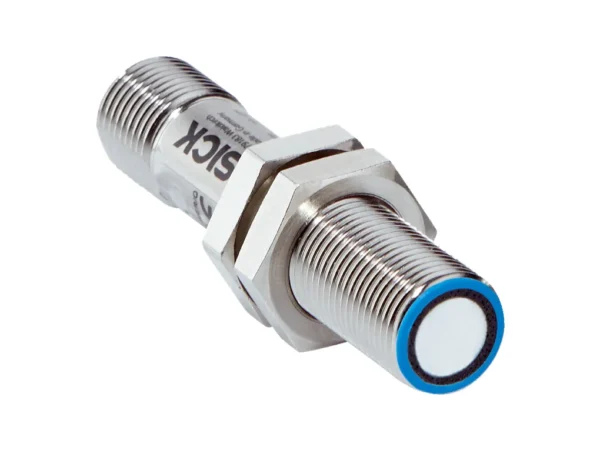

Home Ultrasonik Sensörler UM12-1192261 ULTRASONIC SENSOR – 6053548 🔍 UM12-1192261 ULTRASONIC SENSOR – 6053548 ✉ Teklif Al Teklif Al Stok kodu: 6053548 Kategoriler: Ultrasonik Sensörler Marka: SICK Açıklama Tecnichal data Mechanics/electronics Supply voltage Vs DC 10 V … 30 V Power consumption ≤ 1.2 W Initialization time < 300 ms Design Cylindrical Housing material Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) Thread size M12 x 1 Connection type Male connector, M12, 4-pin Indication 2 x LED Weight 15 g Sending axis Straight Dimensions (W x H x D) 12 mm x 12 mm x 60.1 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 40 mm … 240 mm, 350 mm Target Natural objects Resolution ≥ 0.069 mm Repeatability ± 0.15 % Accuracy ± 1 % Temperature compensation ✔ Response time 30 ms Output time 10 ms Ultrasonic frequency (typical) 500 kHz Additional function Teach-in of analog output Invertable analog output Reset to factory default Interfaces Analog output Number 1 Type Current output Current 4 mA … 20 mA, ≤ 500 Ω Resolution 12 bit Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960 İlgili ürünler UM30-211111 ULTRASONIC SENSOR – 6037660SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-211112 ULTRASONIC SENSOR – 6037664SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git 873P 400mm Ultrasonic Sensor – 873P-D18P2-400-D5ALLEN BRADLEYUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-213112 ULTRASONIC SENSOR – 6037666SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git
Tecnichal data Mechanics/electronics Supply voltage Vs DC 10 V … 30 V Power consumption ≤ 1.2 W Initialization time < 300 ms Design Cylindrical Housing material Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) Thread size M12 x 1 Connection type Male connector, M12, 4-pin Indication 2 x LED Weight 15 g Sending axis Straight Dimensions (W x H x D) 12 mm x 12 mm x 60.1 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 40 mm … 240 mm, 350 mm Target Natural objects Resolution ≥ 0.069 mm Repeatability ± 0.15 % Accuracy ± 1 % Temperature compensation ✔ Response time 30 ms Output time 10 ms Ultrasonic frequency (typical) 500 kHz Additional function Teach-in of analog output Invertable analog output Reset to factory default Interfaces Analog output Number 1 Type Current output Current 4 mA … 20 mA, ≤ 500 Ω Resolution 12 bit Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960
