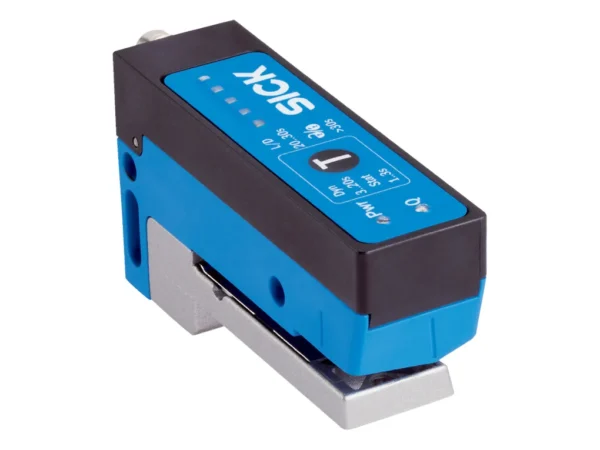

Home Çatal Sensörler UFS3-37N417 – 6075475 🔍 UFS3-37N417 – 6075475 ✉ Teklif Al Teklif Al Stok kodu: 6075475 Kategoriler: Çatal Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle detail Ultrasonic detection principle Dimensions (W x H x D) 20 mm x 37.4 mm x 70 mm Housing design Fork shaped Fork width 2.6 mm Fork depth 42.5 mm Minimum detectable object (MDO) Label size: 2 mm Label gap: 1 mm Label detection ✔ Adjustment Teach-in button, cable (Teach-in, sensitivity, light/dark switching, Teach-in dynamic) Teach-in mode 1-point teach-in 2-point teach-in Teach-in dynamic Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple < 10 % Current consumption 50 mA Switching frequency 1.1 kHz Response time 440 µs Jitter 40 µs Switching output NPN Switching output (voltage) NPN: HIGH = VS / LOW ≤ 3 V Switching mode Light/dark switching Output current Imax. 100 mA Input, teach-in (ET) Teach: U < 2 V: Run: U = 10 V … < UV Initialization time 100 ms Connection type Male connector M8, 4-pin Protection class III Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP65 Weight Approx. 100 g Housing material Metal, plastic, Zamak, Glass fiber reinforced plastic Indication LED indicator green: power on LED indicator, yellow: Status switching output Q Communication interface IO-Link ✔ , V1.1 Data transmission rate COM3 (230,4 kBaud) Cycle time 4 ms VendorID 26 DeviceID HEX 0x8002A6 DeviceID DEC 8389286 Process data length 16 Bit Process data structure A Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 = switching signal QInt1 Bit 3 = switching signal QInt2 Bit 4 = alarm QoR Bit 5 = Teach busy Bit 6 … 15 = measured value Digital output Q1 Number 1 Ambient data Ambient operating temperature +5 °C … +55 °C Ambient temperature, storage –20 °C … +70 °C Shock load According to EN 60068-2-27 EMC EN 60947-5-2 UL File No. NRKH.E191603 & NRKH7.E191603 Smart Task Smart Task name Base logics Classifications ECLASS 5.0 27270909 ECLASS 5.1.4 27270909 ECLASS 6.0 27270909 ECLASS 6.2 27270909 ECLASS 7.0 27270909 ECLASS 8.0 27270909 ECLASS 8.1 27270909 ECLASS 9.0 27270909 ECLASS 10.0 27270909 ECLASS 11.0 27270909 ECLASS 12.0 27270909 ETIM 5.0 EC002720 ETIM 6.0 EC002720 ETIM 7.0 EC002720 ETIM 8.0 EC002720 UNSPSC 16.0901 39121528 Connection/Pin assignment Connection type Male connector M8, 4-pin Pin assignment BN 1 + (L+) WH 2 MF BU 3 – (M) BK 4 Q/C İlgili ürünler WFL120-60B416 – 6036834SICKÇatal Sensörler ₺2.800,00 Ürüne Git WFE-030040B121 – 1106552SICKÇatal Sensörler ₺2.800,00 Ürüne Git WFL5-40B416 – 6036822SICKÇatal Sensörler ₺2.800,00 Ürüne Git WFL30-40B416 – 6036824SICKÇatal Sensörler ₺2.800,00 Ürüne Git
Tecnichal data Features Functional principle detail Ultrasonic detection principle Dimensions (W x H x D) 20 mm x 37.4 mm x 70 mm Housing design Fork shaped Fork width 2.6 mm Fork depth 42.5 mm Minimum detectable object (MDO) Label size: 2 mm Label gap: 1 mm Label detection ✔ Adjustment Teach-in button, cable (Teach-in, sensitivity, light/dark switching, Teach-in dynamic) Teach-in mode 1-point teach-in 2-point teach-in Teach-in dynamic Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple < 10 % Current consumption 50 mA Switching frequency 1.1 kHz Response time 440 µs Jitter 40 µs Switching output NPN Switching output (voltage) NPN: HIGH = VS / LOW ≤ 3 V Switching mode Light/dark switching Output current Imax. 100 mA Input, teach-in (ET) Teach: U < 2 V: Run: U = 10 V … < UV Initialization time 100 ms Connection type Male connector M8, 4-pin Protection class III Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP65 Weight Approx. 100 g Housing material Metal, plastic, Zamak, Glass fiber reinforced plastic Indication LED indicator green: power on LED indicator, yellow: Status switching output Q Communication interface IO-Link ✔ , V1.1 Data transmission rate COM3 (230,4 kBaud) Cycle time 4 ms VendorID 26 DeviceID HEX 0x8002A6 DeviceID DEC 8389286 Process data length 16 Bit Process data structure A Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 = switching signal QInt1 Bit 3 = switching signal QInt2 Bit 4 = alarm QoR Bit 5 = Teach busy Bit 6 … 15 = measured value Digital output Q1 Number 1 Ambient data Ambient operating temperature +5 °C … +55 °C Ambient temperature, storage –20 °C … +70 °C Shock load According to EN 60068-2-27 EMC EN 60947-5-2 UL File No. NRKH.E191603 & NRKH7.E191603 Smart Task Smart Task name Base logics Classifications ECLASS 5.0 27270909 ECLASS 5.1.4 27270909 ECLASS 6.0 27270909 ECLASS 6.2 27270909 ECLASS 7.0 27270909 ECLASS 8.0 27270909 ECLASS 8.1 27270909 ECLASS 9.0 27270909 ECLASS 10.0 27270909 ECLASS 11.0 27270909 ECLASS 12.0 27270909 ETIM 5.0 EC002720 ETIM 6.0 EC002720 ETIM 7.0 EC002720 ETIM 8.0 EC002720 UNSPSC 16.0901 39121528 Connection/Pin assignment Connection type Male connector M8, 4-pin Pin assignment BN 1 + (L+) WH 2 MF BU 3 – (M) BK 4 Q/C
