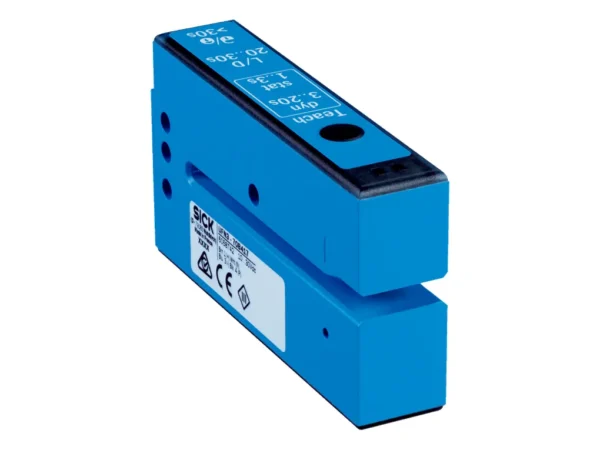

Home Çatal Sensörler UFN3-70N417 – 6058744 🔍 UFN3-70N417 – 6058744 ✉ Teklif Al Teklif Al Stok kodu: 6058744 Kategoriler: Çatal Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle detail Ultrasonic detection principle Dimensions (W x H x D) 18 mm x 47.5 mm x 92.5 mm Housing design Fork shaped Fork width 3 mm Fork depth 69 mm Minimum detectable object (MDO) Gap between Labels / Size of labels: 2 mm Label detection ✔ Adjustment Teach-in button, cable (Teach-in, sensitivity, light/dark switching, Teach-in dynamic) Teach-in mode 1-point teach-in 2-point teach-in Teach-in dynamic Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple < 10 % Current consumption 40 mA Switching frequency 1.5 kHz Response time 250 µs Switching output NPN Switching output (voltage) NPN: HIGH = approx. UV / LOW ≤ 2 V Switching mode Light/dark switching Output current Imax. 100 mA Input, teach-in (ET) Teach: U > 7 V … < UV Run: U < 2 V Initialization time 100 ms Connection type Male connector M8, 4-pin Protection class III Circuit protection Output Q short-circuit protected Interference pulse suppression Enclosure rating IP65 Weight 95 g Housing material Metal, Aluminum Safety-related parameters MTTFD 207 years DCavg 0 % Ambient data Ambient operating temperature +5 °C … +55 °C Ambient temperature, storage –20 °C … +70 °C Shock load According to EN 60068-2-27 EMC EN 60947-5-2 UL File No. NRKH.E191603 & NRKH7.E191603 Classifications ECLASS 5.0 27270909 ECLASS 5.1.4 27270909 ECLASS 6.0 27270909 ECLASS 6.2 27270909 ECLASS 7.0 27270909 ECLASS 8.0 27270909 ECLASS 8.1 27270909 ECLASS 9.0 27270909 ECLASS 10.0 27270909 ECLASS 11.0 27270909 ECLASS 12.0 27270909 ETIM 5.0 EC002720 ETIM 6.0 EC002720 ETIM 7.0 EC002720 ETIM 8.0 EC002720 UNSPSC 16.0901 39121528 İlgili ürünler WFL15-60B416 – 6036830SICKÇatal Sensörler ₺2.800,00 Ürüne Git WFL30-40B416 – 6036824SICKÇatal Sensörler ₺2.800,00 Ürüne Git WFE-050060B337 – 1106555SICKÇatal Sensörler ₺2.800,00 Ürüne Git WFL50-40B416 – 6036825SICKÇatal Sensörler ₺2.800,00 Ürüne Git
Tecnichal data Features Functional principle detail Ultrasonic detection principle Dimensions (W x H x D) 18 mm x 47.5 mm x 92.5 mm Housing design Fork shaped Fork width 3 mm Fork depth 69 mm Minimum detectable object (MDO) Gap between Labels / Size of labels: 2 mm Label detection ✔ Adjustment Teach-in button, cable (Teach-in, sensitivity, light/dark switching, Teach-in dynamic) Teach-in mode 1-point teach-in 2-point teach-in Teach-in dynamic Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple < 10 % Current consumption 40 mA Switching frequency 1.5 kHz Response time 250 µs Switching output NPN Switching output (voltage) NPN: HIGH = approx. UV / LOW ≤ 2 V Switching mode Light/dark switching Output current Imax. 100 mA Input, teach-in (ET) Teach: U > 7 V … < UV Run: U < 2 V Initialization time 100 ms Connection type Male connector M8, 4-pin Protection class III Circuit protection Output Q short-circuit protected Interference pulse suppression Enclosure rating IP65 Weight 95 g Housing material Metal, Aluminum Safety-related parameters MTTFD 207 years DCavg 0 % Ambient data Ambient operating temperature +5 °C … +55 °C Ambient temperature, storage –20 °C … +70 °C Shock load According to EN 60068-2-27 EMC EN 60947-5-2 UL File No. NRKH.E191603 & NRKH7.E191603 Classifications ECLASS 5.0 27270909 ECLASS 5.1.4 27270909 ECLASS 6.0 27270909 ECLASS 6.2 27270909 ECLASS 7.0 27270909 ECLASS 8.0 27270909 ECLASS 8.1 27270909 ECLASS 9.0 27270909 ECLASS 10.0 27270909 ECLASS 11.0 27270909 ECLASS 12.0 27270909 ETIM 5.0 EC002720 ETIM 6.0 EC002720 ETIM 7.0 EC002720 ETIM 8.0 EC002720 UNSPSC 16.0901 39121528
