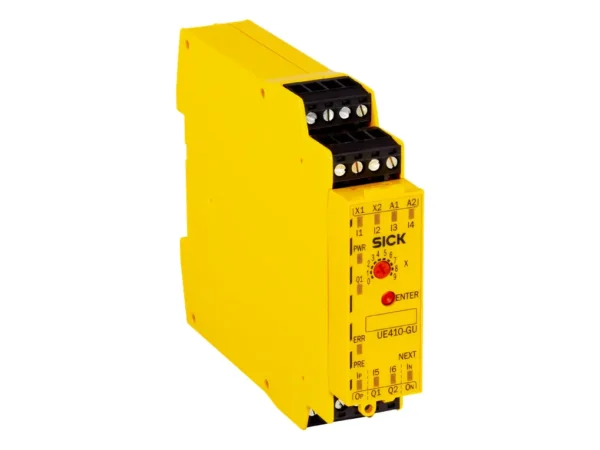

Home Emniyet Kontrol Cihazları UE410-GU3 – 1072177 🔍 UE410-GU3 – 1072177 ✉ Teklif Al Teklif Al Stok kodu: 1072177 Kategoriler: Emniyet Kontrol Cihazları Marka: SICK Açıklama Tecnichal data Features Module Main module Configuration method Via rotary switch Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 2.5 x 10-9 (EN ISO 13849) TM (mission time) 20 years (EN ISO 13849) Functions Restart interlock Manual / automatic (configurable) External device monitoring (EDM) ✔ AND operation ✔ Differentiation between man and material (muting) ✔ Global emergency stop ✔ Interfaces Inputs 4 safety inputs 2 switching inputs 2 inputs for the global emergency stop function Outputs 1 safety output 2 test outputs 1 diagnostic output 2 outputs for the global emergency stop function Connection type Plug-in screw-type terminals Display elements LEDs Electrical data Protection class III (EN 61140) Type of voltage supply PELV or SELV Supply voltage VS 24 V DC (19.2 V DC … 30 V DC) Residual ripple ≤ 10 % Power consumption ≤ 3 W (DC) Switch-on time ≤ 60 s Internal power consumption ≤ 3 W (DC) Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.8 mm Weight + 180 g Ambient data Enclosure rating Housing IP40 (EN 60529) Terminals IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Climate conditions according to EN 61131-2 (55 °C ambient operating temperature, 95% rel. humidity) Electromagnetic compatibility (EMC) Class A (EN 61000-6-2, EN 55011) Vibration resistance 5 g RMS, 5 Hz … 500 Hz (EN 60068-2-64) Classifications eCl@ss 5.0 27243001 eCl@ss 5.1.4 27243101 eCl@ss 6.0 27243101 eCl@ss 6.2 27243101 eCl@ss 7.0 27243101 eCl@ss 8.0 27243101 eCl@ss 8.1 27243101 eCl@ss 9.0 27243101 eCl@ss 10.0 27243101 eCl@ss 11.0 27243101 eCl@ss 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705 İlgili ürünler FLN-EMSS1100108 – 1061712SICKEmniyet Kontrol Cihazları ₺850,00 Ürüne Git FX3-MPL100011 – 1112303SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git FLN-EMSS0000105 – 1061711SICKEmniyet Kontrol Cihazları ₺850,00 Ürüne Git UE410-GU4 – 1094339SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git
Tecnichal data Features Module Main module Configuration method Via rotary switch Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 2.5 x 10-9 (EN ISO 13849) TM (mission time) 20 years (EN ISO 13849) Functions Restart interlock Manual / automatic (configurable) External device monitoring (EDM) ✔ AND operation ✔ Differentiation between man and material (muting) ✔ Global emergency stop ✔ Interfaces Inputs 4 safety inputs 2 switching inputs 2 inputs for the global emergency stop function Outputs 1 safety output 2 test outputs 1 diagnostic output 2 outputs for the global emergency stop function Connection type Plug-in screw-type terminals Display elements LEDs Electrical data Protection class III (EN 61140) Type of voltage supply PELV or SELV Supply voltage VS 24 V DC (19.2 V DC … 30 V DC) Residual ripple ≤ 10 % Power consumption ≤ 3 W (DC) Switch-on time ≤ 60 s Internal power consumption ≤ 3 W (DC) Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.8 mm Weight + 180 g Ambient data Enclosure rating Housing IP40 (EN 60529) Terminals IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Climate conditions according to EN 61131-2 (55 °C ambient operating temperature, 95% rel. humidity) Electromagnetic compatibility (EMC) Class A (EN 61000-6-2, EN 55011) Vibration resistance 5 g RMS, 5 Hz … 500 Hz (EN 60068-2-64) Classifications eCl@ss 5.0 27243001 eCl@ss 5.1.4 27243101 eCl@ss 6.0 27243101 eCl@ss 6.2 27243101 eCl@ss 7.0 27243101 eCl@ss 8.0 27243101 eCl@ss 8.1 27243101 eCl@ss 9.0 27243101 eCl@ss 10.0 27243101 eCl@ss 11.0 27243101 eCl@ss 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705
