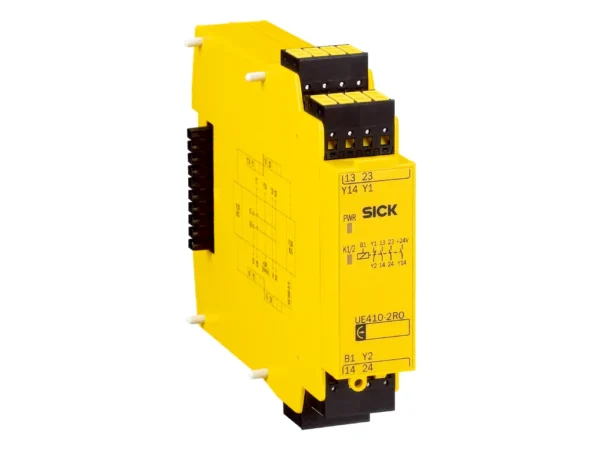

Home Emniyet Kontrol Cihazları UE410-2RO401 – 1118380 🔍 UE410-2RO401 – 1118380 ✉ Teklif Al Teklif Al Stok kodu: 1118380 Kategoriler: Emniyet Kontrol Cihazları Marka: SICK Açıklama Tecnichal data Features Module Relay module Configuration method Hard wired Specialty Protective coating for more challenging ambient conditions (e.g., resistance to sulfur). Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) Interfaces Outputs 2 enabling current paths Number of control inputs 1 (B1) Number of enable current contacts 2 (13/14, 23/24) Number of signaling current paths 1 (Y14) Number of signaling current contacts 1 (Y1/Y2) Connection type Plug-in spring terminals Display elements LEDs Electrical data Protection class III (EN 61140) Voltage supply Via FLEXBUS+ Power consumption ≤ 1.6 W Internal power consumption ≤ 1.6 W Overvoltage category II (EN 61131-2) Switching inputs Terminals B1 Input voltage 18 V DC … 30 V DC Enabling current paths Terminals 13/14, 23/24 Type of output Potential-free NO contacts, positively guided Switching voltage 5 V AC/DC … 253 V AC/DC Current-carrying capacity per OSSD 10 mA … 6 A Signaling current paths Terminals Y14 Type of output NO contact, connected to internal 24 V DC, positively guided, current-limited Output voltage 16 V DC … 30 V DC Output current ≤ 75 mA Check-back current paths Terminals Y1/Y2 Type of output Potential-free NC contacts, positively guided Switching voltage 5 V AC/DC … 253 V AC/DC Current-carrying capacity per OSSD 10 mA … 6 A Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.8 mm Weight 160 g (± 5 %) Ambient data Enclosure rating Housing IP40 (EN 60529) Terminals IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Climate conditions according to EN 61131-2 (55 °C ambient operating temperature, 95% rel. humidity) Electromagnetic compatibility (EMC) Class A (EN 61000-6-2, EN 55011) Vibration resistance 5 g RMS, 5 Hz … 500 Hz (EN 60068-2-64) Classifications eCl@ss 5.0 27243001 eCl@ss 5.1.4 27243101 eCl@ss 6.0 27243101 eCl@ss 6.2 27243101 eCl@ss 7.0 27243101 eCl@ss 8.0 27243101 eCl@ss 8.1 27243101 eCl@ss 9.0 27243101 eCl@ss 10.0 27243101 eCl@ss 11.0 27243101 eCl@ss 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705 İlgili ürünler FX0-GENT00030 FLEXISOFT EIP GATEW.V2 – 1099830SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git FLN-EMSS1100108 – 1061712SICKEmniyet Kontrol Cihazları ₺850,00 Ürüne Git UE410-GU3 – 1072177SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git FLN-EMSS0000105 – 1061711SICKEmniyet Kontrol Cihazları ₺850,00 Ürüne Git
Tecnichal data Features Module Relay module Configuration method Hard wired Specialty Protective coating for more challenging ambient conditions (e.g., resistance to sulfur). Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) Interfaces Outputs 2 enabling current paths Number of control inputs 1 (B1) Number of enable current contacts 2 (13/14, 23/24) Number of signaling current paths 1 (Y14) Number of signaling current contacts 1 (Y1/Y2) Connection type Plug-in spring terminals Display elements LEDs Electrical data Protection class III (EN 61140) Voltage supply Via FLEXBUS+ Power consumption ≤ 1.6 W Internal power consumption ≤ 1.6 W Overvoltage category II (EN 61131-2) Switching inputs Terminals B1 Input voltage 18 V DC … 30 V DC Enabling current paths Terminals 13/14, 23/24 Type of output Potential-free NO contacts, positively guided Switching voltage 5 V AC/DC … 253 V AC/DC Current-carrying capacity per OSSD 10 mA … 6 A Signaling current paths Terminals Y14 Type of output NO contact, connected to internal 24 V DC, positively guided, current-limited Output voltage 16 V DC … 30 V DC Output current ≤ 75 mA Check-back current paths Terminals Y1/Y2 Type of output Potential-free NC contacts, positively guided Switching voltage 5 V AC/DC … 253 V AC/DC Current-carrying capacity per OSSD 10 mA … 6 A Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.8 mm Weight 160 g (± 5 %) Ambient data Enclosure rating Housing IP40 (EN 60529) Terminals IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Climate conditions according to EN 61131-2 (55 °C ambient operating temperature, 95% rel. humidity) Electromagnetic compatibility (EMC) Class A (EN 61000-6-2, EN 55011) Vibration resistance 5 g RMS, 5 Hz … 500 Hz (EN 60068-2-64) Classifications eCl@ss 5.0 27243001 eCl@ss 5.1.4 27243101 eCl@ss 6.0 27243101 eCl@ss 6.2 27243101 eCl@ss 7.0 27243101 eCl@ss 8.0 27243101 eCl@ss 8.1 27243101 eCl@ss 9.0 27243101 eCl@ss 10.0 27243101 eCl@ss 11.0 27243101 eCl@ss 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705
