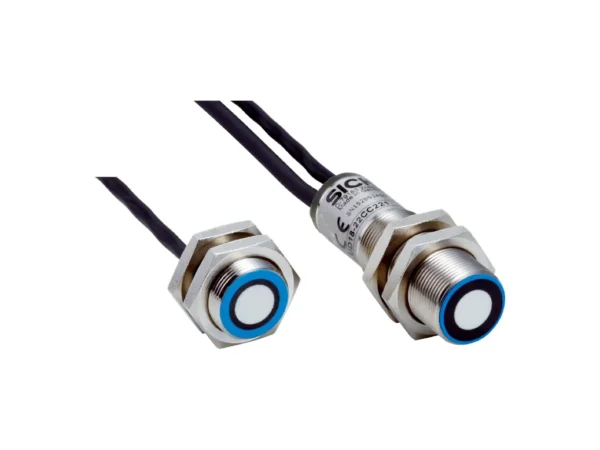

Home Ultrasonik Sensörler UD18-22CC241 ULTRASONIC SENSOR – 6058911 🔍 UD18-22CC241 ULTRASONIC SENSOR – 6058911 ✉ Teklif Al Teklif Al Stok kodu: 6058911 Kategoriler: Ultrasonik Sensörler Marka: SICK Açıklama Tecnichal data Mechanics/electronics Supply voltage Vs DC 20 V … 30 V Power consumption ≤ 1.5 W Initialization time < 750 ms Design Cylindrical Housing material Metal (Nickel-plated brass, PBT/PA, ultrasonic transducer: polyurethane foam, glass epoxy resin) Thread size M18 x 1 Connection type Connection cable with open end: 7 x 0,25 mm², 2 m, PUR Sender: connection cable to receiver with M8 male connector, 3-pin, 1 m, PUR Receiver: connection cable to sender with M8 female connector, 3-pin, 1.2 m, PUR Indication 2 x LED Weight 130 g Sending axis Straight Dimensions (W x H x D) 18 mm x 18 mm x 63.2 mm Enclosure rating IP65 Protection class III Performance Installation distance 20 mm … 60 mm, 40 mm ± 3 mm (default setting) Target Natural objects Resolution 1 material layer Response time 2.5 ms Switching frequency 250 Hz Output time 2 ms, trigger mode: < 0.5 ms Ultrasonic frequency (typical) 400 kHz Additional function 3 selectable sensitivity levels Teach-in of up to 4 individual sensitivity level Sensitivity level changeover during operation Set parameters via Connect+ Software Blind zone 7 mm … 7 mm (from sender and receiver) Permissible angle deviation ± 45° perpendicular to material layer Detectable material Paper with grammages: 20 g/m² … 2,000 g/m² Plastic sheets and foils: ≤ 0.4 mm Self-adhesive films, metal sheets: ≤ 0.3 mm Corrugated cardboard: single wall F, N and G flute sizes Washi Wafer PCB Interfaces Digital output Number 2 Type NPN Function Q1: switching output double layer, Q2: switching output single / no layer, normally closed Maximum output current IA ≤ 200 mA Control input 3 x Ambient data Ambient temperature, operation +5 °C … +60 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960 İlgili ürünler RightSound Ultrasonic Sensor, Receiver, 4 Pin Micro QD on Pigtail – 873E-RDTT0750F4ALLEN BRADLEYUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-215112 ULTRASONIC SENSOR – 6037668SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git ULTRASONIC REDIRECTION – 5312916SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-214118 ULTRASONIC SENSOR – 6036924SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git
Tecnichal data Mechanics/electronics Supply voltage Vs DC 20 V … 30 V Power consumption ≤ 1.5 W Initialization time < 750 ms Design Cylindrical Housing material Metal (Nickel-plated brass, PBT/PA, ultrasonic transducer: polyurethane foam, glass epoxy resin) Thread size M18 x 1 Connection type Connection cable with open end: 7 x 0,25 mm², 2 m, PUR Sender: connection cable to receiver with M8 male connector, 3-pin, 1 m, PUR Receiver: connection cable to sender with M8 female connector, 3-pin, 1.2 m, PUR Indication 2 x LED Weight 130 g Sending axis Straight Dimensions (W x H x D) 18 mm x 18 mm x 63.2 mm Enclosure rating IP65 Protection class III Performance Installation distance 20 mm … 60 mm, 40 mm ± 3 mm (default setting) Target Natural objects Resolution 1 material layer Response time 2.5 ms Switching frequency 250 Hz Output time 2 ms, trigger mode: < 0.5 ms Ultrasonic frequency (typical) 400 kHz Additional function 3 selectable sensitivity levels Teach-in of up to 4 individual sensitivity level Sensitivity level changeover during operation Set parameters via Connect+ Software Blind zone 7 mm … 7 mm (from sender and receiver) Permissible angle deviation ± 45° perpendicular to material layer Detectable material Paper with grammages: 20 g/m² … 2,000 g/m² Plastic sheets and foils: ≤ 0.4 mm Self-adhesive films, metal sheets: ≤ 0.3 mm Corrugated cardboard: single wall F, N and G flute sizes Washi Wafer PCB Interfaces Digital output Number 2 Type NPN Function Q1: switching output double layer, Q2: switching output single / no layer, normally closed Maximum output current IA ≤ 200 mA Control input 3 x Ambient data Ambient temperature, operation +5 °C … +60 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960
