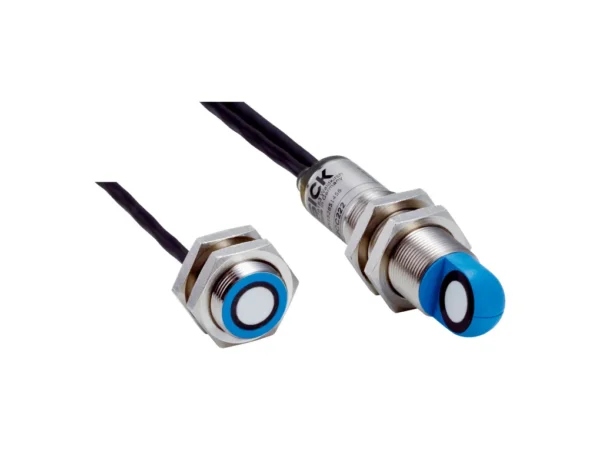

Name: SICK 6058912 | Ultrasonik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 6058912
Price: 4200.00 TRY
Availability: InStock

Tecnichal data

Mechanics/electronics

Supply voltage V_s	DC 20 V … 30 V
Power consumption	≤ 1.5 W
Initialization time	< 300 ms
Design	Cylindrical
Housing material	Metal (Nickel-plated brass, PBT/PA, ultrasonic transducer: polyurethane foam, glass epoxy resin)
Thread size	M18 x 1
Connection type	Connection cable with open end: 7 x 0,25 mm², 2 m, PUR Sender: connection cable to receiver with M8 male connector, 3-pin, 1 m, PUR Receiver: connection cable to sender with M8 female connector, 3-pin, 1.2 m, PUR
Indication	2 x LED
Weight	130 g
Sending axis	Angled
Dimensions (W x H x D)	18 mm x 18 mm x 79.2 mm
Enclosure rating	IP65
Protection class	III

Performance

Installation distance	20 mm … 60 mm, 40 mm ± 3 mm (default setting)
Target	Natural objects
Resolution	1 material layer
Response time	2.5 ms
Switching frequency	250 Hz
Output time	2 ms, trigger mode: < 0.5 ms
Ultrasonic frequency (typical)	400 kHz
Additional function	3 selectable sensitivity levels Teach-in of up to 4 individual sensitivity level Sensitivity level changeover during operation Set parameters via Connect+ Software
Blind zone	7 mm … 7 mm (from sender and receiver)
Permissible angle deviation	± 45° perpendicular to material layer
Detectable material	Paper with grammages: 20 g/m² … 2,000 g/m² Plastic sheets and foils: ≤ 0.4 mm Self-adhesive films, metal sheets: ≤ 0.3 mm Corrugated cardboard: single wall F, N and G flute sizes Washi Wafer PCB

Interfaces

Digital output
Number	2
Type	PNP
Function	Q₁: switching output double layer, Q₂: switching output single / no layer, normally closed
Maximum output current I_A	≤ 200 mA

Control input

3 x

Ambient data

Ambient temperature, operation	+5 °C … +60 °C
Ambient temperature, storage	–40 °C … +85 °C
