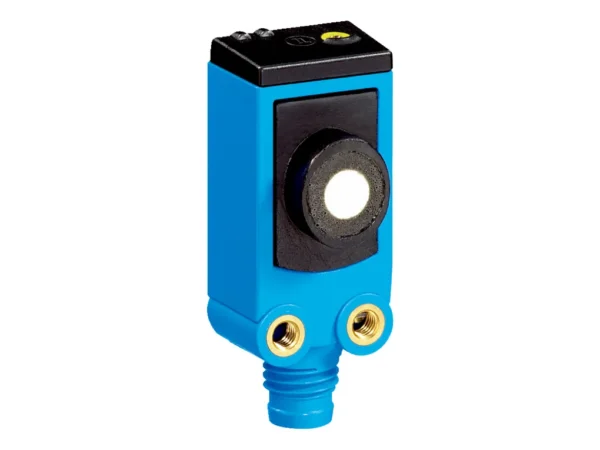

Home Ultrasonik Sensörler UC4-13347 ULTRASONIC SENSOR – 6054709 🔍 UC4-13347 ULTRASONIC SENSOR – 6054709 ✉ Teklif Al Teklif Al Stok kodu: 6054709 Kategoriler: Ultrasonik Sensörler Marka: SICK Açıklama Tecnichal data Mechanics/electronics Supply voltage Vs DC 15 V … 30 V Power consumption ≤ 0.75 W Initialization time < 300 ms Design Rectangular Housing material Plastic (ABS, ultrasonic transducer: polyurethane foam, glass epoxy resin) Connection type Male connector, M8, 3-pin Indication 2 x LED Weight 10 g Sending axis Straight Dimensions (W x H x D) 16 mm x 40.1 mm x 16.7 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 20 mm … 150 mm, 250 mm Target Natural objects Resolution ≥ 0.1 mm Repeatability ± 0.15 % Accuracy ± 1 % Temperature compensation ✔ Response time 24 ms Output time 8 ms Ultrasonic frequency (typical) 380 kHz Detection area (typical) See diagrams Additional function Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB) Teach-in of digital output Invertable digital output Teach-in button(s) (can be deactivated) Reset to factory default Interfaces Analog output Number 1 Type Voltage output Voltage 0 V … 10 V, ≥ 100,000 Ω Resolution 12 bit Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960 İlgili ürünler ULTRASONIC REDIRECT.F. ULTRASONIC SENSOR – 5323658SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-215118 ULTRASONIC SENSOR – 6036925SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-212112 ULTRASONIC SENSOR – 6037665SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-213112 ULTRASONIC SENSOR – 6037666SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git
Tecnichal data Mechanics/electronics Supply voltage Vs DC 15 V … 30 V Power consumption ≤ 0.75 W Initialization time < 300 ms Design Rectangular Housing material Plastic (ABS, ultrasonic transducer: polyurethane foam, glass epoxy resin) Connection type Male connector, M8, 3-pin Indication 2 x LED Weight 10 g Sending axis Straight Dimensions (W x H x D) 16 mm x 40.1 mm x 16.7 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 20 mm … 150 mm, 250 mm Target Natural objects Resolution ≥ 0.1 mm Repeatability ± 0.15 % Accuracy ± 1 % Temperature compensation ✔ Response time 24 ms Output time 8 ms Ultrasonic frequency (typical) 380 kHz Detection area (typical) See diagrams Additional function Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB) Teach-in of digital output Invertable digital output Teach-in button(s) (can be deactivated) Reset to factory default Interfaces Analog output Number 1 Type Voltage output Voltage 0 V … 10 V, ≥ 100,000 Ω Resolution 12 bit Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960
