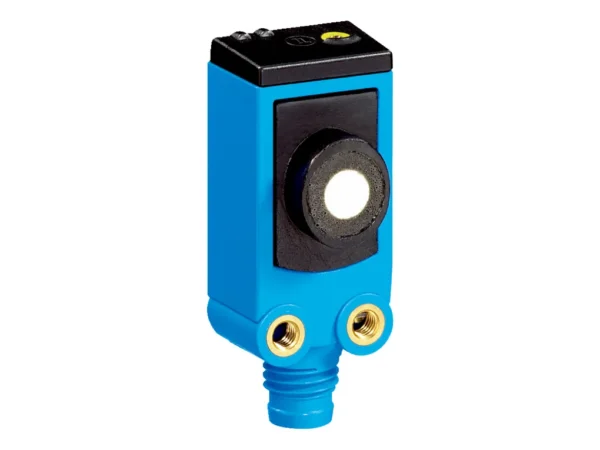

Home Ultrasonik Sensörler UC4-13341S01 ULTRASONIC SENSOR – 6049509 🔍 UC4-13341S01 ULTRASONIC SENSOR – 6049509 ✉ Teklif Al Teklif Al Stok kodu: 6049509 Kategoriler: Ultrasonik Sensörler Marka: SICK Açıklama Tecnichal data Mechanics/electronics Supply voltage Vs DC 15 V … 30 V Power consumption ≤ 0.9 W Initialization time < 300 ms Design Rectangular Housing material Plastic (ABS, ultrasonic transducer: polyurethane foam, glass epoxy resin) Connection type Male connector, M8, 3-pin Indication 2 x LED Weight 10 g Sending axis Straight Dimensions (W x H x D) 16 mm x 40.1 mm x 16.7 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 13 mm … 150 mm, 250 mm Target Natural objects Resolution ≥ 0.1 mm Repeatability ± 0.15 % Accuracy ± 1 % Response time 10 ms Switching frequency 100 Hz Output time 5 ms Ultrasonic frequency (typical) 380 kHz Detection area (typical) See diagrams Additional function Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB) Teach-in of digital output Invertable digital output Teach-in button(s) (can be deactivated) Reset to factory default Interfaces Digital output Number 1 Type PNP Maximum output current IA ≤ 200 mA Hysteresis 2 mm Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Temperature drift 0.17 % / K Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960 İlgili ürünler UM30-212112 ULTRASONIC SENSOR – 6037665SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-211111 ULTRASONIC SENSOR – 6037660SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git ULTRASONIC REDIRECTION – 5312916SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git RightSound Ultrasonic Sensor, Receiver, 4 Pin Micro QD on Pigtail – 873E-RDTT0750F4ALLEN BRADLEYUltrasonik Sensörler ₺4.200,00 Ürüne Git
Tecnichal data Mechanics/electronics Supply voltage Vs DC 15 V … 30 V Power consumption ≤ 0.9 W Initialization time < 300 ms Design Rectangular Housing material Plastic (ABS, ultrasonic transducer: polyurethane foam, glass epoxy resin) Connection type Male connector, M8, 3-pin Indication 2 x LED Weight 10 g Sending axis Straight Dimensions (W x H x D) 16 mm x 40.1 mm x 16.7 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 13 mm … 150 mm, 250 mm Target Natural objects Resolution ≥ 0.1 mm Repeatability ± 0.15 % Accuracy ± 1 % Response time 10 ms Switching frequency 100 Hz Output time 5 ms Ultrasonic frequency (typical) 380 kHz Detection area (typical) See diagrams Additional function Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB) Teach-in of digital output Invertable digital output Teach-in button(s) (can be deactivated) Reset to factory default Interfaces Digital output Number 1 Type PNP Maximum output current IA ≤ 200 mA Hysteresis 2 mm Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Temperature drift 0.17 % / K Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960
