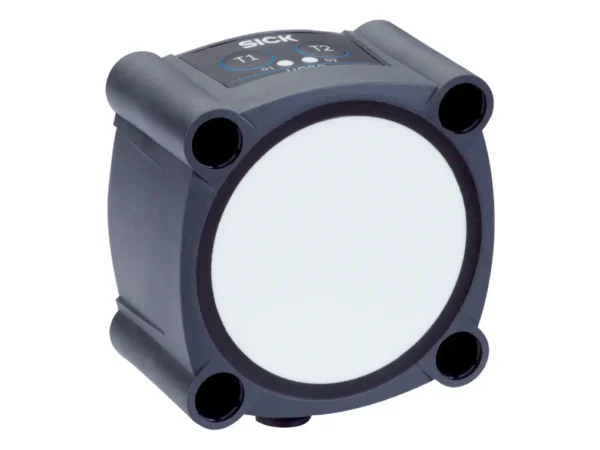

Home Ultrasonik Sensörler UC30-215163 ULTRASONIC SENSOR – 6054716 🔍 UC30-215163 ULTRASONIC SENSOR – 6054716 ✉ Teklif Al Teklif Al Stok kodu: 6054716 Kategoriler: Ultrasonik Sensörler Marka: SICK Açıklama Tecnichal data Mechanics/electronics Supply voltage Vs DC 9 V … 30 V Power consumption ≤ 1.2 W Initialization time < 450 ms Design Rectangular Housing material Plastic (PBT/PET, ultrasonic transducer: polyurethane foam, glass epoxy resin) Connection type Male connector, M12, 5-pin Indication 2 x LED Weight 240 g Sending axis Straight Dimensions (W x H x D) 62 mm x 62 mm x 37.2 mm 62 mm x 62 mm x 36.7 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 600 mm … 6,000 mm, 8,000 mm Target Natural objects Resolution ≥ 0.18 mm Repeatability ± 0.15 % Accuracy ± 1 % Temperature compensation ✔ Response time 240 ms Output time 60 ms Ultrasonic frequency (typical) 80 kHz Detection area (typical) See diagrams Additional function Teach-in of analog output Scaling of analog outputs Invertable analog output Synchronization of up to 50 sensors Multiplexing: no cross talk of up to 50 sensors Adjustable measurement filters: Measured value filters/Filter strength/Foreground suppression/Detection area/Sensitivity and sound beam Reset to factory default Interfaces Analog output Number 1 Type Current output / voltage output Function Automatic selection of analog current or voltage output dependent on load Current 4 mA … 20 mA, ≤ 500 Ω Voltage 0 V … 10 V, ≥ 100,000 Ω Resolution 12 bit Multifunctional input (MF) 1 x MF Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960 İlgili ürünler UM30-215111 ULTRASONIC SENSOR – 6037663SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-211113 ULTRASONIC SENSOR – 6036916SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-212111 ULTRASONIC SENSOR – 6037661SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git ULTRASONIC REDIRECTION – 5312916SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git
Tecnichal data Mechanics/electronics Supply voltage Vs DC 9 V … 30 V Power consumption ≤ 1.2 W Initialization time < 450 ms Design Rectangular Housing material Plastic (PBT/PET, ultrasonic transducer: polyurethane foam, glass epoxy resin) Connection type Male connector, M12, 5-pin Indication 2 x LED Weight 240 g Sending axis Straight Dimensions (W x H x D) 62 mm x 62 mm x 37.2 mm 62 mm x 62 mm x 36.7 mm Enclosure rating IP65 / IP67 Protection class III Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 600 mm … 6,000 mm, 8,000 mm Target Natural objects Resolution ≥ 0.18 mm Repeatability ± 0.15 % Accuracy ± 1 % Temperature compensation ✔ Response time 240 ms Output time 60 ms Ultrasonic frequency (typical) 80 kHz Detection area (typical) See diagrams Additional function Teach-in of analog output Scaling of analog outputs Invertable analog output Synchronization of up to 50 sensors Multiplexing: no cross talk of up to 50 sensors Adjustable measurement filters: Measured value filters/Filter strength/Foreground suppression/Detection area/Sensitivity and sound beam Reset to factory default Interfaces Analog output Number 1 Type Current output / voltage output Function Automatic selection of analog current or voltage output dependent on load Current 4 mA … 20 mA, ≤ 500 Ω Voltage 0 V … 10 V, ≥ 100,000 Ω Resolution 12 bit Multifunctional input (MF) 1 x MF Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960
