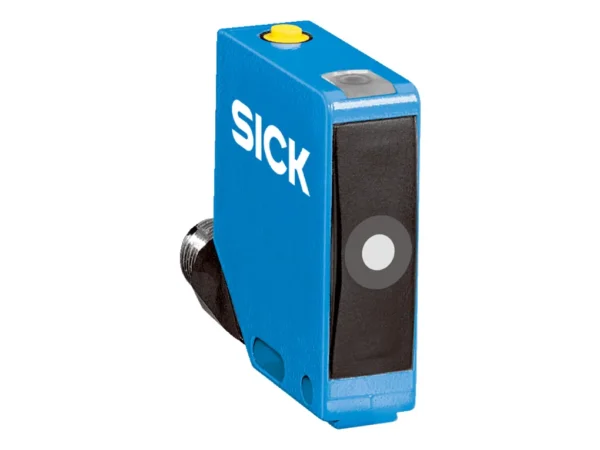

Home Ultrasonik Sensörler UC12-1223E ULTRASONIC SENSOR – 6077703 🔍 UC12-1223E ULTRASONIC SENSOR – 6077703 ✉ Teklif Al Teklif Al Stok kodu: 6077703 Kategoriler: Ultrasonik Sensörler Marka: SICK Açıklama Tecnichal data Mechanics/electronics Supply voltage Vs DC 10 V … 30 V Power consumption ≤ 1.2 W Initialization time < 300 ms Design Rectangular Housing material Metal (zinc diecast, ultrasonic transducer: polyurethane foam, glass epoxy resin) Connection type Male connector, M12, 4-pin Indication 1 x LED Weight 75 g Sending axis Straight Dimensions (W x H x D) 15 mm x 48.8 mm x 43.5 mm Enclosure rating IP65 / IP67 Protection class III Performance Operating range, limiting range 55 mm … 250 mm, 350 mm Target Natural objects Resolution ≥ 0.1 mm Repeatability ± 0.15 % Accuracy ± 1 % Temperature compensation ✔ Response time 30 ms Switching frequency 25 Hz Output time 8 ms Ultrasonic frequency (typical) 500 kHz Detection area (typical) See diagrams Additional function Set switching mode: Distance to object (DtO) / Window (Wnd) / Object between sensor and background (ObSB) Teach-in of digital output Teach-in button(s) (can be deactivated) Reset to factory default Interfaces IO-Link ✔ , IO-Link V1.1 Function Process data, parameterization, diagnosis, data storage Digital output Number 2 Type Push-pull: PNP/NPN Function Complementary digital outputs (Q, Ǭ) Maximum output current IA ≤ 100 mA Hysteresis 2 mm Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960 İlgili ürünler UM30-213112 ULTRASONIC SENSOR – 6037666SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-214118 ULTRASONIC SENSOR – 6036924SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-212113 ULTRASONIC SENSOR – 6036917SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-211112 ULTRASONIC SENSOR – 6037664SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git
Tecnichal data Mechanics/electronics Supply voltage Vs DC 10 V … 30 V Power consumption ≤ 1.2 W Initialization time < 300 ms Design Rectangular Housing material Metal (zinc diecast, ultrasonic transducer: polyurethane foam, glass epoxy resin) Connection type Male connector, M12, 4-pin Indication 1 x LED Weight 75 g Sending axis Straight Dimensions (W x H x D) 15 mm x 48.8 mm x 43.5 mm Enclosure rating IP65 / IP67 Protection class III Performance Operating range, limiting range 55 mm … 250 mm, 350 mm Target Natural objects Resolution ≥ 0.1 mm Repeatability ± 0.15 % Accuracy ± 1 % Temperature compensation ✔ Response time 30 ms Switching frequency 25 Hz Output time 8 ms Ultrasonic frequency (typical) 500 kHz Detection area (typical) See diagrams Additional function Set switching mode: Distance to object (DtO) / Window (Wnd) / Object between sensor and background (ObSB) Teach-in of digital output Teach-in button(s) (can be deactivated) Reset to factory default Interfaces IO-Link ✔ , IO-Link V1.1 Function Process data, parameterization, diagnosis, data storage Digital output Number 2 Type Push-pull: PNP/NPN Function Complementary digital outputs (Q, Ǭ) Maximum output current IA ≤ 100 mA Hysteresis 2 mm Ambient data Ambient temperature, operation –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960
