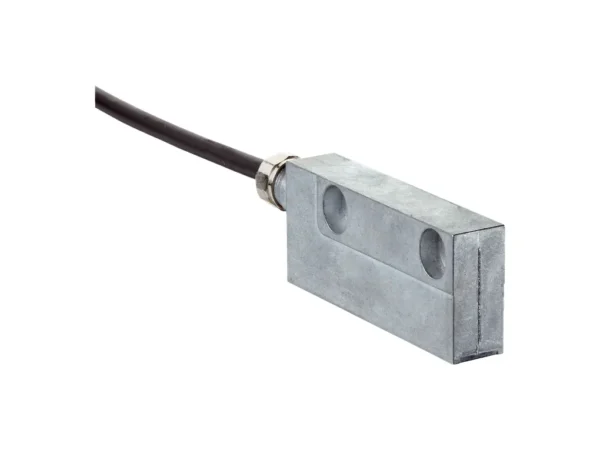

Home Proses Transmitterleri TTK70S-HXJ0-K02 – 1099701 🔍 TTK70S-HXJ0-K02 – 1099701 ✉ Teklif Al Teklif Al Stok kodu: 1099701 Kategoriler: Proses Transmitterleri Marka: SICK Açıklama Tecnichal data Features Items supplied Magnetic tape not included with delivery Safety-related parameters Safety integrity level SIL 2 (IEC 61508), SILCL2 (EN 62061) Category 3 (EN ISO 13849) Maximum demand rate Continuous (analog signals) Performance level PL d (EN ISO 13849) PFHD: Probability of dangerous failure per hour 2.02 x 10-8 TM (mission time) 20 years (EN ISO 13849) Safety-related accuracy ± 25 mm, = ± 1/4 pin length Safety-related measuring step 0.25 mm Performance Measuring step 0.244 µm For interpolation of the sine/cosine signals with, e. g., 12 bits Measuring range 0 mm … 3,920 mm Resolution 1 µm Length of period 1 mm Traversing speed ≤ 10 m/s, 1.3 m/s up to which the absolute position can be reliably produced Repeatability < 5 µm System accuracy ± 10 µm (+20 °C) Measured value backlash < 10 µm Interfaces Communication interface HIPERFACE® Code type Binary Available memory area 1,792 Byte (E2PROM 2048) Electrical data Supply voltage 7 V DC … 12 V DC Recommended supply voltage 8 V DC Operating current ≤ 65 mA (without load) Connection type Cable, 8-wire (4 x 2 x 0.15 mm²), 0.5 m Mechanical data Dimensions See dimensional drawing Scope of delivery Magnetic tape not included with delivery Weight 0.08 kg Read head material Zinc diecast Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP67, with mating connector inserted (IEC 60529) Operating temperature range –30 °C … +80 °C Storage temperature range –40 °C … +85 °C, without package Permissible relative humidity 100 %, condensation permitted Resistance to shocks 30 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Maximum permitted ambient field strength < 3 kA/m … 4 kA/m (3.8 mT … 5 mT), to guarantee compliance with the quoted accuracy values Maximum permitted field strength < 150 kA/m (< 190 mT), to ensure that the magnetic tape is not permanently damaged Classifications eCl@ss 5.0 27270705 eCl@ss 5.1.4 27270705 eCl@ss 6.0 27270705 eCl@ss 6.2 27270705 eCl@ss 7.0 27270705 eCl@ss 8.0 27270705 eCl@ss 8.1 27270705 eCl@ss 9.0 27270705 eCl@ss 10.0 27270705 eCl@ss 11.0 27270705 eCl@ss 12.0 27274304 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 41111613 İlgili ürünler TTK50S-HXJ0-K02 – 1099696SICKProses Transmitterleri ₺8.500,00 Ürüne Git TTK50S-HXQ0-K02 – 1099698SICKProses Transmitterleri ₺8.500,00 Ürüne Git TTK70S-HXA0-K02 – 1099700SICKProses Transmitterleri ₺8.500,00 Ürüne Git TTK70-HXJ0-K02 – 1063567SICKProses Transmitterleri ₺8.500,00 Ürüne Git
Tecnichal data Features Items supplied Magnetic tape not included with delivery Safety-related parameters Safety integrity level SIL 2 (IEC 61508), SILCL2 (EN 62061) Category 3 (EN ISO 13849) Maximum demand rate Continuous (analog signals) Performance level PL d (EN ISO 13849) PFHD: Probability of dangerous failure per hour 2.02 x 10-8 TM (mission time) 20 years (EN ISO 13849) Safety-related accuracy ± 25 mm, = ± 1/4 pin length Safety-related measuring step 0.25 mm Performance Measuring step 0.244 µm For interpolation of the sine/cosine signals with, e. g., 12 bits Measuring range 0 mm … 3,920 mm Resolution 1 µm Length of period 1 mm Traversing speed ≤ 10 m/s, 1.3 m/s up to which the absolute position can be reliably produced Repeatability < 5 µm System accuracy ± 10 µm (+20 °C) Measured value backlash < 10 µm Interfaces Communication interface HIPERFACE® Code type Binary Available memory area 1,792 Byte (E2PROM 2048) Electrical data Supply voltage 7 V DC … 12 V DC Recommended supply voltage 8 V DC Operating current ≤ 65 mA (without load) Connection type Cable, 8-wire (4 x 2 x 0.15 mm²), 0.5 m Mechanical data Dimensions See dimensional drawing Scope of delivery Magnetic tape not included with delivery Weight 0.08 kg Read head material Zinc diecast Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP67, with mating connector inserted (IEC 60529) Operating temperature range –30 °C … +80 °C Storage temperature range –40 °C … +85 °C, without package Permissible relative humidity 100 %, condensation permitted Resistance to shocks 30 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Maximum permitted ambient field strength < 3 kA/m … 4 kA/m (3.8 mT … 5 mT), to guarantee compliance with the quoted accuracy values Maximum permitted field strength < 150 kA/m (< 190 mT), to ensure that the magnetic tape is not permanently damaged Classifications eCl@ss 5.0 27270705 eCl@ss 5.1.4 27270705 eCl@ss 6.0 27270705 eCl@ss 6.2 27270705 eCl@ss 7.0 27270705 eCl@ss 8.0 27270705 eCl@ss 8.1 27270705 eCl@ss 9.0 27270705 eCl@ss 10.0 27270705 eCl@ss 11.0 27270705 eCl@ss 12.0 27274304 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 41111613
