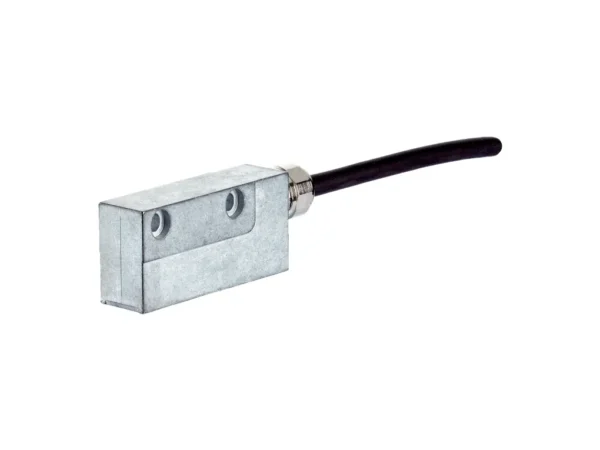

Home Proses Transmitterleri TTK50S-HXJ0-K02 – 1099696 🔍 TTK50S-HXJ0-K02 – 1099696 ✉ Teklif Al Teklif Al Stok kodu: 1099696 Kategoriler: Proses Transmitterleri Marka: SICK Açıklama Tecnichal data Features Items supplied Magnetic tape not included with delivery Safety-related parameters Safety integrity level SIL 2 (IEC 61508), SILCL2 (EN 62061) Category 3 (EN ISO 13849) Maximum demand rate Continuous (analog signals) Performance level PL d (EN ISO 13849) PFHD: Probability of dangerous failure per hour 2.02 x 10-8 TM (mission time) 20 years (EN ISO 13849) Safety-related accuracy ± 25 mm, = ± 1/4 pin length Safety-related measuring step 0.25 mm Performance Measuring step 0.244 µm For interpolation of the sine/cosine signals with, e. g., 12 bits Measuring range 0 mm … 940 mm Resolution 1 µm Length of period 1 mm Traversing speed 1.3 m/s, ≤ 10 m/s up to which the absolute position can be reliably produced, dynamic operation (Sin/Cos) Repeatability < 5 µm System accuracy ± 10 µm (+20 °C) Measured value backlash < 10 µm Interfaces Code type Binary Available memory area 1,972 Byte (E2PROM 2048) Electrical data Supply voltage 7 V DC … 12 V DC Recommended supply voltage 8 V DC Operating current ≤ 55 mA (without load) Connection type Cable, 8-wire (4 x 2 x 0.15 mm²), 0.5 m Mechanical data Dimensions See dimensional drawing Scope of delivery Magnetic tape not included with delivery Weight 0.06 kg, without cable Read head material Zinc diecast Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP67, with mating connector inserted (IEC 60529) Operating temperature range –30 °C … +80 °C Storage temperature range –40 °C … +85 °C, without package Permissible relative humidity 100 %, condensation permitted Resistance to shocks 30 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Maximum permitted ambient field strength < 3 kA/m … 4 kA/m (3.8 mT … 5 mT), to guarantee compliance with the quoted accuracy values Maximum permitted field strength < 150 kA/m (< 190 mT), to ensure that the magnetic tape is not permanently damaged Classifications eCl@ss 5.0 27270590 eCl@ss 5.1.4 27270590 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270590 eCl@ss 8.0 27270590 eCl@ss 8.1 27270590 eCl@ss 9.0 27270590 eCl@ss 10.0 27273805 eCl@ss 11.0 27273902 eCl@ss 12.0 27273902 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler TTK70S-HXJ0-K02 – 1099701SICKProses Transmitterleri ₺8.500,00 Ürüne Git TTK70-HXJ0-K02 – 1063567SICKProses Transmitterleri ₺8.500,00 Ürüne Git TTK50S-HXQ0-K02 – 1099698SICKProses Transmitterleri ₺8.500,00 Ürüne Git TTK70S-HXA0-K02 – 1099700SICKProses Transmitterleri ₺8.500,00 Ürüne Git
Tecnichal data Features Items supplied Magnetic tape not included with delivery Safety-related parameters Safety integrity level SIL 2 (IEC 61508), SILCL2 (EN 62061) Category 3 (EN ISO 13849) Maximum demand rate Continuous (analog signals) Performance level PL d (EN ISO 13849) PFHD: Probability of dangerous failure per hour 2.02 x 10-8 TM (mission time) 20 years (EN ISO 13849) Safety-related accuracy ± 25 mm, = ± 1/4 pin length Safety-related measuring step 0.25 mm Performance Measuring step 0.244 µm For interpolation of the sine/cosine signals with, e. g., 12 bits Measuring range 0 mm … 940 mm Resolution 1 µm Length of period 1 mm Traversing speed 1.3 m/s, ≤ 10 m/s up to which the absolute position can be reliably produced, dynamic operation (Sin/Cos) Repeatability < 5 µm System accuracy ± 10 µm (+20 °C) Measured value backlash < 10 µm Interfaces Code type Binary Available memory area 1,972 Byte (E2PROM 2048) Electrical data Supply voltage 7 V DC … 12 V DC Recommended supply voltage 8 V DC Operating current ≤ 55 mA (without load) Connection type Cable, 8-wire (4 x 2 x 0.15 mm²), 0.5 m Mechanical data Dimensions See dimensional drawing Scope of delivery Magnetic tape not included with delivery Weight 0.06 kg, without cable Read head material Zinc diecast Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP67, with mating connector inserted (IEC 60529) Operating temperature range –30 °C … +80 °C Storage temperature range –40 °C … +85 °C, without package Permissible relative humidity 100 %, condensation permitted Resistance to shocks 30 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Maximum permitted ambient field strength < 3 kA/m … 4 kA/m (3.8 mT … 5 mT), to guarantee compliance with the quoted accuracy values Maximum permitted field strength < 150 kA/m (< 190 mT), to ensure that the magnetic tape is not permanently damaged Classifications eCl@ss 5.0 27270590 eCl@ss 5.1.4 27270590 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270590 eCl@ss 8.0 27270590 eCl@ss 8.1 27270590 eCl@ss 9.0 27270590 eCl@ss 10.0 27273805 eCl@ss 11.0 27273902 eCl@ss 12.0 27273902 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
