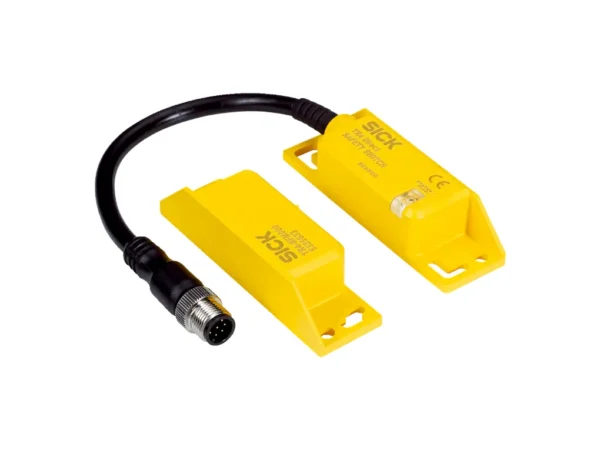

Home Emniyet Switchleri TR4-SFM02CB TRANSPONDER SAFETY Switch – 6070825 🔍 TR4-SFM02CB TRANSPONDER SAFETY Switch – 6070825 ✉ Teklif Al Teklif Al Stok kodu: 6070825 Kategoriler: Emniyet Switchleri Marka: SICK Açıklama Tecnichal data Features System part Sensor with actuator Sensor principle RFID Number of safe outputs 2 Safe switch on distance Sao 15 mm Safe switch off distance Sar 25 mm Active sensor surfaces 2 Actuation directions 5 Retaining force ≤ 10 N Boundary area indication ✔ Coding Universally coded Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 6.03 * 10-10 TM (mission time) 20 years (EN ISO 13849) Type Type 4 (EN ISO 14119) Actuator coding level Low coding level (EN ISO 14119) Classification in compliance with IEC/EN 60947-5-3 PDF-M Safe state in the event of a fault At least one safety-related semiconductor output (OSSD) is in the OFF state. Functions Safe series connection With Flexi Loop (with diagnostics) Interfaces Connection type Cable with plug M12, 5-pin Length of cable 0.2 m Long connecting cable ≤ 200 m Cable diameter 6.5 mm Conductor cross section 0.25 mm² Bend radius (with fixed installation) > 7 x cable diameter Bend radius (with moving cable) > 14 x cable diameter Cable material PVC Conductor material Copper Coupling nut material Nickel-plated brass IO-Link Safety OFDT ≤ 100 ms Display elements LEDs Status display ✔ Electrical data Protection class III (EN 50178) Classification according to cULus Class 2 Supply voltage Vs 24 V DC (20.4 V DC … 26.4 V DC) Power consumption ≤ 50 mA Type of output Self-monitoring semiconductor outputs (OSSDs) Output current ≤ 200 mA Response time 45 ms Release time 360 ms Risk time ≤ 100 ms Switch-on time 2 s Electrical life 10 x 106 switching cycles Mechanical data Design Rectangular Dimensions (W x H x D) 25 mm x 88 mm x 20 mm Weight 112 g Housing material Valox® DR48 Ambient data Enclosure rating IP67 (IEC 60529) IP69K (ISO 20653) Ambient operating temperature –25 °C … +70 °C Vibration resistance 10 Hz … 55 Hz, 3.5 mm (IEC 60068-2-6) Shock resistance 30 g, 11 ms (EN 60068-2-27) Classifications ECLASS 5.0 27272403 ECLASS 5.1.4 27272403 ECLASS 6.0 27272403 ECLASS 6.2 27272403 ECLASS 7.0 27272403 ECLASS 8.0 27272403 ECLASS 8.1 27272403 ECLASS 9.0 27272403 ECLASS 10.0 27272403 ECLASS 11.0 27272403 ECLASS 12.0 27274601 ETIM 5.0 EC001829 ETIM 6.0 EC001829 ETIM 7.0 EC001829 ETIM 8.0 EC001829 UNSPSC 16.0901 39122205 İlgili ürünler STR1-SAFM0AC8 – 1069566SICKEmniyet Switchleri ₺3.200,00 Ürüne Git RE23-SA03 – 1061725SICKEmniyet Switchleri ₺3.200,00 Ürüne Git RE13-SA64 – 1062540SICKEmniyet Switchleri ₺3.200,00 Ürüne Git STR1-SAFM10P5 – 1069568SICKEmniyet Switchleri ₺3.200,00 Ürüne Git
Tecnichal data Features System part Sensor with actuator Sensor principle RFID Number of safe outputs 2 Safe switch on distance Sao 15 mm Safe switch off distance Sar 25 mm Active sensor surfaces 2 Actuation directions 5 Retaining force ≤ 10 N Boundary area indication ✔ Coding Universally coded Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 6.03 * 10-10 TM (mission time) 20 years (EN ISO 13849) Type Type 4 (EN ISO 14119) Actuator coding level Low coding level (EN ISO 14119) Classification in compliance with IEC/EN 60947-5-3 PDF-M Safe state in the event of a fault At least one safety-related semiconductor output (OSSD) is in the OFF state. Functions Safe series connection With Flexi Loop (with diagnostics) Interfaces Connection type Cable with plug M12, 5-pin Length of cable 0.2 m Long connecting cable ≤ 200 m Cable diameter 6.5 mm Conductor cross section 0.25 mm² Bend radius (with fixed installation) > 7 x cable diameter Bend radius (with moving cable) > 14 x cable diameter Cable material PVC Conductor material Copper Coupling nut material Nickel-plated brass IO-Link Safety OFDT ≤ 100 ms Display elements LEDs Status display ✔ Electrical data Protection class III (EN 50178) Classification according to cULus Class 2 Supply voltage Vs 24 V DC (20.4 V DC … 26.4 V DC) Power consumption ≤ 50 mA Type of output Self-monitoring semiconductor outputs (OSSDs) Output current ≤ 200 mA Response time 45 ms Release time 360 ms Risk time ≤ 100 ms Switch-on time 2 s Electrical life 10 x 106 switching cycles Mechanical data Design Rectangular Dimensions (W x H x D) 25 mm x 88 mm x 20 mm Weight 112 g Housing material Valox® DR48 Ambient data Enclosure rating IP67 (IEC 60529) IP69K (ISO 20653) Ambient operating temperature –25 °C … +70 °C Vibration resistance 10 Hz … 55 Hz, 3.5 mm (IEC 60068-2-6) Shock resistance 30 g, 11 ms (EN 60068-2-27) Classifications ECLASS 5.0 27272403 ECLASS 5.1.4 27272403 ECLASS 6.0 27272403 ECLASS 6.2 27272403 ECLASS 7.0 27272403 ECLASS 8.0 27272403 ECLASS 8.1 27272403 ECLASS 9.0 27272403 ECLASS 10.0 27272403 ECLASS 11.0 27272403 ECLASS 12.0 27274601 ETIM 5.0 EC001829 ETIM 6.0 EC001829 ETIM 7.0 EC001829 ETIM 8.0 EC001829 UNSPSC 16.0901 39122205
