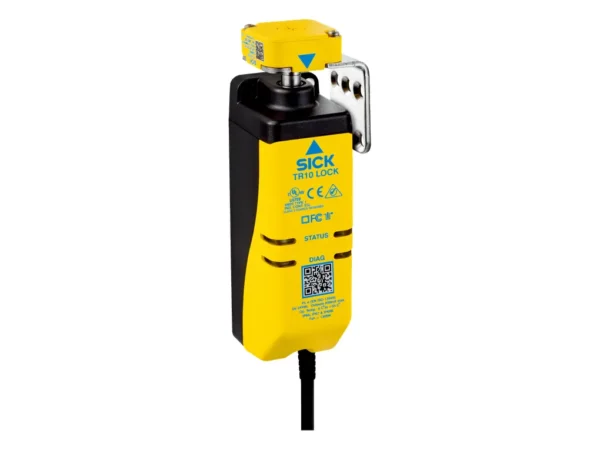

Home Emniyet Switchleri TR10-SRU10P TRANSPONDER SAFETY Switch – 6054763 🔍 TR10-SRU10P TRANSPONDER SAFETY Switch – 6054763 ✉ Teklif Al Teklif Al Stok kodu: 6054763 Kategoriler: Emniyet Switchleri Marka: SICK Açıklama Tecnichal data Features Sensor principle RFID Locking principle Power to release Number of safe outputs 2 Coding Uniquely coded Locking force Fmax 1,690 N (EN ISO 14119) Locking force FZh 1,300 N (EN ISO 14119) Retaining force 0 N Actuation directions 4 Approach speed ≥ 2 mm/s Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 9.1 x 10-10 TM (mission time) 20 years (EN ISO 13849) Type Type 4 (EN ISO 14119) Actuator coding level High coding level (EN ISO 14119) Safe state in the event of a fault At least one safety-related semiconductor output (OSSD) is in the OFF state. Functions Switching behavior of the OSSDs Locking monitoring Safe series connection In control cabinet (with diagnostics) Interfaces Connection type Cable Length of cable 10 m Long connecting cable ≤ 200 m Cable diameter 6.5 mm Conductor cross section 0.25 mm² Bend radius (with fixed installation) > 7 x cable diameter Bend radius (with moving cable) > 14 x cable diameter Cable material PVC Conductor material Copper Coupling nut material Stainless steel Display elements LEDs Diagnostics indicator ✔ Status display ✔ Electrical data Protection class II (IEC 61140) Contamination rating 3 Classification according to cULus Class 2 Usage category DC-13 (IEC 60947-5-1) Rated operating current (voltage) 200 mA (24 V DC) Rated insulation voltage Ui 75 V Rated impulse withstand voltage Uimp 1,000 V Supply voltage VS 24 V DC (20.4 V DC … 26.4 V DC) Type of output Self-monitoring semiconductor outputs (OSSDs) Output current ≤ 200 mA Peak current 400 mA, 100 ms Power consumption 2.5 W Response time 100 ms for the first switch, 50 ms for each subsequent switch Release time 600 ms Risk time 100 ms Switch-on time 7 s Locking principle Power to release Mechanical data Weight 0.4 kg Housing material ABS Locking bolt material Stainless steel 304 Mechanical life 5 x 105 switching cycles Ambient data Enclosure rating IP66, IP67, IP69K (IEC 60529, IEC 60529, IEC 60529) Ambient operating temperature 0 °C … +55 °C Storage temperature –25 °C … +75 °C Vibration resistance 10 Hz … 55 Hz (IEC 60068-2-6) Shock resistance 30 g, 11 ms (EN 60068-2-27) EMC IEC 60947-5-3 Classifications ECLASS 5.0 27272603 ECLASS 5.1.4 27272603 ECLASS 6.0 27272603 ECLASS 6.2 27272603 ECLASS 7.0 27272603 ECLASS 8.0 27272603 ECLASS 8.1 27272603 ECLASS 9.0 27272603 ECLASS 10.0 27272603 ECLASS 11.0 27272603 ECLASS 12.0 27272603 ETIM 5.0 EC002593 ETIM 6.0 EC002593 ETIM 7.0 EC002593 ETIM 8.0 EC002593 UNSPSC 16.0901 39122205 İlgili ürünler RE27-SA68LS04 – 1065233SICKEmniyet Switchleri ₺3.200,00 Ürüne Git STR1-SASM10P5 – 1069563SICKEmniyet Switchleri ₺3.200,00 Ürüne Git STR1-SAMM10P5 – 1069573SICKEmniyet Switchleri ₺3.200,00 Ürüne Git RE13-SA05 – 1062011SICKEmniyet Switchleri ₺3.200,00 Ürüne Git
Tecnichal data Features Sensor principle RFID Locking principle Power to release Number of safe outputs 2 Coding Uniquely coded Locking force Fmax 1,690 N (EN ISO 14119) Locking force FZh 1,300 N (EN ISO 14119) Retaining force 0 N Actuation directions 4 Approach speed ≥ 2 mm/s Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 9.1 x 10-10 TM (mission time) 20 years (EN ISO 13849) Type Type 4 (EN ISO 14119) Actuator coding level High coding level (EN ISO 14119) Safe state in the event of a fault At least one safety-related semiconductor output (OSSD) is in the OFF state. Functions Switching behavior of the OSSDs Locking monitoring Safe series connection In control cabinet (with diagnostics) Interfaces Connection type Cable Length of cable 10 m Long connecting cable ≤ 200 m Cable diameter 6.5 mm Conductor cross section 0.25 mm² Bend radius (with fixed installation) > 7 x cable diameter Bend radius (with moving cable) > 14 x cable diameter Cable material PVC Conductor material Copper Coupling nut material Stainless steel Display elements LEDs Diagnostics indicator ✔ Status display ✔ Electrical data Protection class II (IEC 61140) Contamination rating 3 Classification according to cULus Class 2 Usage category DC-13 (IEC 60947-5-1) Rated operating current (voltage) 200 mA (24 V DC) Rated insulation voltage Ui 75 V Rated impulse withstand voltage Uimp 1,000 V Supply voltage VS 24 V DC (20.4 V DC … 26.4 V DC) Type of output Self-monitoring semiconductor outputs (OSSDs) Output current ≤ 200 mA Peak current 400 mA, 100 ms Power consumption 2.5 W Response time 100 ms for the first switch, 50 ms for each subsequent switch Release time 600 ms Risk time 100 ms Switch-on time 7 s Locking principle Power to release Mechanical data Weight 0.4 kg Housing material ABS Locking bolt material Stainless steel 304 Mechanical life 5 x 105 switching cycles Ambient data Enclosure rating IP66, IP67, IP69K (IEC 60529, IEC 60529, IEC 60529) Ambient operating temperature 0 °C … +55 °C Storage temperature –25 °C … +75 °C Vibration resistance 10 Hz … 55 Hz (IEC 60068-2-6) Shock resistance 30 g, 11 ms (EN 60068-2-27) EMC IEC 60947-5-3 Classifications ECLASS 5.0 27272603 ECLASS 5.1.4 27272603 ECLASS 6.0 27272603 ECLASS 6.2 27272603 ECLASS 7.0 27272603 ECLASS 8.0 27272603 ECLASS 8.1 27272603 ECLASS 9.0 27272603 ECLASS 10.0 27272603 ECLASS 11.0 27272603 ECLASS 12.0 27272603 ETIM 5.0 EC002593 ETIM 6.0 EC002593 ETIM 7.0 EC002593 ETIM 8.0 EC002593 UNSPSC 16.0901 39122205
