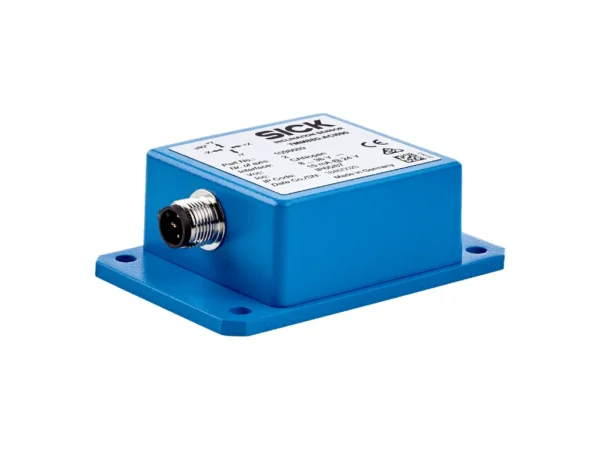

Home Eğim Sensörleri TMM88D-AJI090 – 1098671 🔍 TMM88D-AJI090 – 1098671 ✉ Teklif Al Teklif Al Stok kodu: 1098671 Kategoriler: Eğim Sensörleri Marka: SICK Açıklama Tecnichal data Performance Number of axis 2 Measuring range ± 90° Resolution 0.01° Static measurement accuracy ± 0.3° Dynamic measurement accuracy ± 0.5° Temperature coefficient (zero point) Typ. ±0.01°/K Limit frequency 0.1 Hz … 25 Hz, 8. range (with digital filter) Interference suppression time for sensor fusion filter 100 ms … 10,000 ms Sampling rate 200 Hz Additional information Pitch (Euler angle) ± 90° (Pitch) ± 180° (Roll) Pitch (quaternion) Scalar parts w, vector parts x, y, z Acceleration ± 8 g (x-, y-, z-axis) Turning rate ± 250 °/s (x-, y-, z-axis) Interfaces Communication interface SAE J1939 Address setting 0…253 (Address Claiming: 0…240), default: 128 Data transmission rate (baud rate) 250 kbit/s … 500 kbit/s, default: 250 kbit/s Status information Via status LED Bus termination Via external terminator Parameterising data Zeroset Limit frequency Interference suppression time Sensor fusion Preset value Inverting of counting direction Programmable/configurable Over PGT-12-Pro Initialization time 120 ms Electrical data Connection type Male connector, 1x, M12, 5-pin Female connector, 1x, M12, 5-pin Supply voltage 8 V DC … 36 V DC Current consumption < 15 mA @ 24 V Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 619 years (EN ISO 13849-1) Mechanical data Dimensions 58 mm x 90 mm x 31 m Weight 200 g Housing material Aluminum Ambient data EMC EN 61326-1, EN ISO 14982, EN ISO 13309 Enclosure rating IP67 IP69K Operating temperature range –40 °C … +80 °C Storage temperature range –40 °C … +85 °C Resistance to shocks 100 g, 6 ms (according to EN 60068-2-27) Resistance to vibration 10 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270790 eCl@ss 5.1.4 27270790 eCl@ss 6.0 27270790 eCl@ss 6.2 27270790 eCl@ss 7.0 27270790 eCl@ss 8.0 27270790 eCl@ss 8.1 27270790 eCl@ss 9.0 27270790 eCl@ss 10.0 27271101 eCl@ss 11.0 27271101 eCl@ss 12.0 27271101 ETIM 5.0 EC001852 ETIM 6.0 EC001852 ETIM 7.0 EC001852 ETIM 8.0 EC001852 UNSPSC 16.0901 41111613 İlgili ürünler PM3C15-00030000 – 1077525SICKEğim Sensörleri ₺850,00 Ürüne Git TMS88A-PCI360 – 1073802SICKEğim Sensörleri ₺5.500,00 Ürüne Git TMS88A-PKC360 – 1073798SICKEğim Sensörleri ₺5.500,00 Ürüne Git TMS88B-PKC360 – 1073794SICKEğim Sensörleri ₺5.500,00 Ürüne Git
Tecnichal data Performance Number of axis 2 Measuring range ± 90° Resolution 0.01° Static measurement accuracy ± 0.3° Dynamic measurement accuracy ± 0.5° Temperature coefficient (zero point) Typ. ±0.01°/K Limit frequency 0.1 Hz … 25 Hz, 8. range (with digital filter) Interference suppression time for sensor fusion filter 100 ms … 10,000 ms Sampling rate 200 Hz Additional information Pitch (Euler angle) ± 90° (Pitch) ± 180° (Roll) Pitch (quaternion) Scalar parts w, vector parts x, y, z Acceleration ± 8 g (x-, y-, z-axis) Turning rate ± 250 °/s (x-, y-, z-axis) Interfaces Communication interface SAE J1939 Address setting 0…253 (Address Claiming: 0…240), default: 128 Data transmission rate (baud rate) 250 kbit/s … 500 kbit/s, default: 250 kbit/s Status information Via status LED Bus termination Via external terminator Parameterising data Zeroset Limit frequency Interference suppression time Sensor fusion Preset value Inverting of counting direction Programmable/configurable Over PGT-12-Pro Initialization time 120 ms Electrical data Connection type Male connector, 1x, M12, 5-pin Female connector, 1x, M12, 5-pin Supply voltage 8 V DC … 36 V DC Current consumption < 15 mA @ 24 V Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 619 years (EN ISO 13849-1) Mechanical data Dimensions 58 mm x 90 mm x 31 m Weight 200 g Housing material Aluminum Ambient data EMC EN 61326-1, EN ISO 14982, EN ISO 13309 Enclosure rating IP67 IP69K Operating temperature range –40 °C … +80 °C Storage temperature range –40 °C … +85 °C Resistance to shocks 100 g, 6 ms (according to EN 60068-2-27) Resistance to vibration 10 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270790 eCl@ss 5.1.4 27270790 eCl@ss 6.0 27270790 eCl@ss 6.2 27270790 eCl@ss 7.0 27270790 eCl@ss 8.0 27270790 eCl@ss 8.1 27270790 eCl@ss 9.0 27270790 eCl@ss 10.0 27271101 eCl@ss 11.0 27271101 eCl@ss 12.0 27271101 ETIM 5.0 EC001852 ETIM 6.0 EC001852 ETIM 7.0 EC001852 ETIM 8.0 EC001852 UNSPSC 16.0901 41111613
