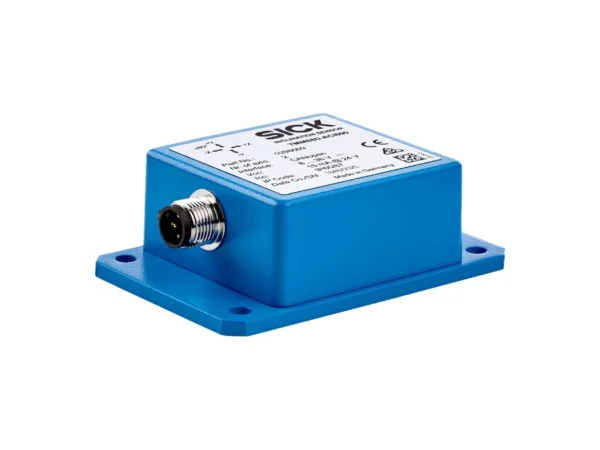

Home Eğim Sensörleri TMM88D-ACI090 – 1098669 🔍 TMM88D-ACI090 – 1098669 ✉ Teklif Al Teklif Al Stok kodu: 1098669 Kategoriler: Eğim Sensörleri Marka: SICK Açıklama Tecnichal data Performance Number of axis 2 Measuring range ± 90° Resolution 0.01° Static measurement accuracy ± 0.3° Dynamic measurement accuracy ± 0.5° Temperature coefficient (zero point) Typ. ±0.01°/K Limit frequency 0.1 Hz … 25 Hz, 8. range (with digital filter) Interference suppression time for sensor fusion filter 100 ms … 10,000 ms Sampling rate 200 Hz Additional information Pitch (Euler angle) ± 90° (Pitch) ± 180° (Roll) Pitch (quaternion) Scalar parts w, vector parts x, y, z Acceleration ± 8 g (x-, y-, z-axis) Turning rate ± 250 °/s (x-, y-, z-axis) Interfaces Communication interface CANopen Device profile CiA DSP-410 Address setting 0…127, default: 10 Data transmission rate (baud rate) 10 kbit/s … 1,000 kbit/s, Default: automatic baud rate detection Status information Via status LED Bus termination Via external terminator Parameterising data Zeroset Limit frequency Interference suppression time Sensor fusion Preset value Inverting of counting direction Programmable/configurable Over PGT-12-Pro Initialization time 120 ms Electrical data Connection type Male connector, 1x, M12, 5-pin Female connector, 1x, M12, 5-pin Supply voltage 8 V DC … 36 V DC Current consumption < 15 mA @ 24 V Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 619 years (EN ISO 13849-1) Mechanical data Dimensions 58 mm x 90 mm x 31 m Weight 200 g Housing material Aluminum Ambient data EMC EN 61326-1, EN ISO 14982, EN ISO 13309 Enclosure rating IP67 IP69K Operating temperature range –40 °C … +80 °C Storage temperature range –40 °C … +85 °C Resistance to shocks 100 g, 6 ms (according to EN 60068-2-27) Resistance to vibration 10 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270790 eCl@ss 5.1.4 27270790 eCl@ss 6.0 27270790 eCl@ss 6.2 27270790 eCl@ss 7.0 27270790 eCl@ss 8.0 27270790 eCl@ss 8.1 27270790 eCl@ss 9.0 27270790 eCl@ss 10.0 27271101 eCl@ss 11.0 27271101 eCl@ss 12.0 27271101 ETIM 5.0 EC001852 ETIM 6.0 EC001852 ETIM 7.0 EC001852 ETIM 8.0 EC001852 UNSPSC 16.0901 41111613 İlgili ürünler TMS88D-ACI360 – 1098668SICKEğim Sensörleri ₺5.500,00 Ürüne Git TMM88B-ACC090 – 1073789SICKEğim Sensörleri ₺5.500,00 Ürüne Git TMM88B-AKC090 – 1073791SICKEğim Sensörleri ₺5.500,00 Ürüne Git TMS88B-ACC360 – 1073788SICKEğim Sensörleri ₺5.500,00 Ürüne Git
Tecnichal data Performance Number of axis 2 Measuring range ± 90° Resolution 0.01° Static measurement accuracy ± 0.3° Dynamic measurement accuracy ± 0.5° Temperature coefficient (zero point) Typ. ±0.01°/K Limit frequency 0.1 Hz … 25 Hz, 8. range (with digital filter) Interference suppression time for sensor fusion filter 100 ms … 10,000 ms Sampling rate 200 Hz Additional information Pitch (Euler angle) ± 90° (Pitch) ± 180° (Roll) Pitch (quaternion) Scalar parts w, vector parts x, y, z Acceleration ± 8 g (x-, y-, z-axis) Turning rate ± 250 °/s (x-, y-, z-axis) Interfaces Communication interface CANopen Device profile CiA DSP-410 Address setting 0…127, default: 10 Data transmission rate (baud rate) 10 kbit/s … 1,000 kbit/s, Default: automatic baud rate detection Status information Via status LED Bus termination Via external terminator Parameterising data Zeroset Limit frequency Interference suppression time Sensor fusion Preset value Inverting of counting direction Programmable/configurable Over PGT-12-Pro Initialization time 120 ms Electrical data Connection type Male connector, 1x, M12, 5-pin Female connector, 1x, M12, 5-pin Supply voltage 8 V DC … 36 V DC Current consumption < 15 mA @ 24 V Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 619 years (EN ISO 13849-1) Mechanical data Dimensions 58 mm x 90 mm x 31 m Weight 200 g Housing material Aluminum Ambient data EMC EN 61326-1, EN ISO 14982, EN ISO 13309 Enclosure rating IP67 IP69K Operating temperature range –40 °C … +80 °C Storage temperature range –40 °C … +85 °C Resistance to shocks 100 g, 6 ms (according to EN 60068-2-27) Resistance to vibration 10 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270790 eCl@ss 5.1.4 27270790 eCl@ss 6.0 27270790 eCl@ss 6.2 27270790 eCl@ss 7.0 27270790 eCl@ss 8.0 27270790 eCl@ss 8.1 27270790 eCl@ss 9.0 27270790 eCl@ss 10.0 27271101 eCl@ss 11.0 27271101 eCl@ss 12.0 27271101 ETIM 5.0 EC001852 ETIM 6.0 EC001852 ETIM 7.0 EC001852 ETIM 8.0 EC001852 UNSPSC 16.0901 41111613
