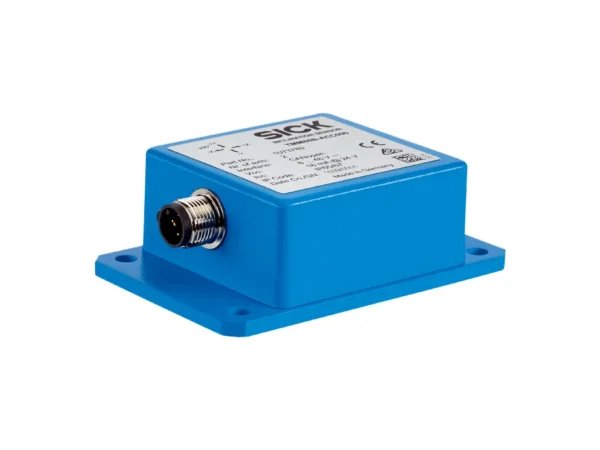

Home Eğim Sensörleri TMM88B-ALC090 – 1073793 🔍 TMM88B-ALC090 – 1073793 ✉ Teklif Al Teklif Al Stok kodu: 1073793 Kategoriler: Eğim Sensörleri Marka: SICK Açıklama Tecnichal data Performance Number of axis 2 Measuring range ± 90° Resolution 0.01° Static measurement accuracy ≤ ± 60°, typ. ± 0.1°, max. ± 0.2° ≤ ± 80°, typ. ± 0.2°, max. ± 0.4° Compensated cross-sensitivity (2-dimensional) Typ. ± 0.1°, max. ± 0.2° Temperature coefficient (zero point) Typ. ±0.01°/K Limit frequency 0.1 Hz … 25 Hz, 8. range (with digital filter) Sampling rate 80 Hz Interfaces Communication interface Analog / Voltage Voltage output 0 V … 10 V Parameterising data Measuring range Zeroset Limit frequency Preset value Inverting of counting direction Axis assignment Free adjustable outbound Programmable/configurable Over PGT-12-Pro Initialization time 270 ms Electrical data Connection type Male connector, M12, 5-pin Supply voltage 17 V DC … 35 V DC Current consumption < 35 mA @ 24 V Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 348 years (EN ISO 13849-1) Mechanical data Dimensions 58 mm x 90 mm x 31 mm Weight 200 g Housing material Aluminum Ambient data EMC EN 61326-1, EN ISO 14982, EN ISO 13309 Enclosure rating IP65 IP67 Operating temperature range –40 °C … +80 °C Storage temperature range –40 °C … +85 °C Resistance to shocks 100 g, 6 ms (according to EN 60068-2-27) Resistance to vibration 10 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270790 eCl@ss 5.1.4 27270790 eCl@ss 6.0 27270790 eCl@ss 6.2 27270790 eCl@ss 7.0 27270790 eCl@ss 8.0 27270790 eCl@ss 8.1 27270790 eCl@ss 9.0 27270790 eCl@ss 10.0 27271101 eCl@ss 11.0 27271101 eCl@ss 12.0 27271101 ETIM 5.0 EC001852 ETIM 6.0 EC001852 ETIM 7.0 EC001852 ETIM 8.0 EC001852 UNSPSC 16.0901 41111613 İlgili ürünler TMS88A-PKC360 – 1073798SICKEğim Sensörleri ₺5.500,00 Ürüne Git TMS88D-PJI360 – 1094486SICKEğim Sensörleri ₺5.500,00 Ürüne Git TMM88B-ACC090 – 1073789SICKEğim Sensörleri ₺5.500,00 Ürüne Git TMM88D-ACI090 – 1098669SICKEğim Sensörleri ₺5.500,00 Ürüne Git
Tecnichal data Performance Number of axis 2 Measuring range ± 90° Resolution 0.01° Static measurement accuracy ≤ ± 60°, typ. ± 0.1°, max. ± 0.2° ≤ ± 80°, typ. ± 0.2°, max. ± 0.4° Compensated cross-sensitivity (2-dimensional) Typ. ± 0.1°, max. ± 0.2° Temperature coefficient (zero point) Typ. ±0.01°/K Limit frequency 0.1 Hz … 25 Hz, 8. range (with digital filter) Sampling rate 80 Hz Interfaces Communication interface Analog / Voltage Voltage output 0 V … 10 V Parameterising data Measuring range Zeroset Limit frequency Preset value Inverting of counting direction Axis assignment Free adjustable outbound Programmable/configurable Over PGT-12-Pro Initialization time 270 ms Electrical data Connection type Male connector, M12, 5-pin Supply voltage 17 V DC … 35 V DC Current consumption < 35 mA @ 24 V Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 348 years (EN ISO 13849-1) Mechanical data Dimensions 58 mm x 90 mm x 31 mm Weight 200 g Housing material Aluminum Ambient data EMC EN 61326-1, EN ISO 14982, EN ISO 13309 Enclosure rating IP65 IP67 Operating temperature range –40 °C … +80 °C Storage temperature range –40 °C … +85 °C Resistance to shocks 100 g, 6 ms (according to EN 60068-2-27) Resistance to vibration 10 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270790 eCl@ss 5.1.4 27270790 eCl@ss 6.0 27270790 eCl@ss 6.2 27270790 eCl@ss 7.0 27270790 eCl@ss 8.0 27270790 eCl@ss 8.1 27270790 eCl@ss 9.0 27270790 eCl@ss 10.0 27271101 eCl@ss 11.0 27271101 eCl@ss 12.0 27271101 ETIM 5.0 EC001852 ETIM 6.0 EC001852 ETIM 7.0 EC001852 ETIM 8.0 EC001852 UNSPSC 16.0901 41111613
