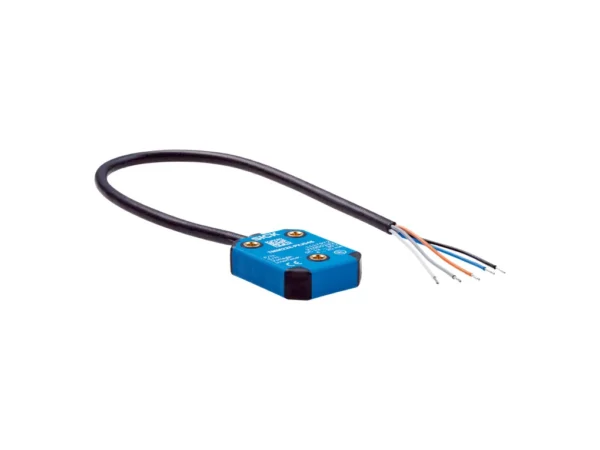

Home Eğim Sensörleri TMM22E-PKJ090 – 1118561 🔍 TMM22E-PKJ090 – 1118561 ✉ Teklif Al Teklif Al Stok kodu: 1118561 Kategoriler: Eğim Sensörleri Marka: SICK Açıklama Tecnichal data Performance Number of axis 2 Measuring range ± 90° Resolution ≤ 0.015° Static measurement accuracy Typ. 0.25°, max. 0.6° Repeatability 30 μA Compensated cross-sensitivity (2-dimensional) Typ. ± 0.5°, max. ± 0.9° Temperature coefficient (zero point) ±0.03°/K Limit frequency 2 Hz Sampling rate 400 Hz Interfaces Communication interface Analog / Current Current output 4 mA … 20 mA 0-set function via hardware pin ✔ Load resistance 200 Ω … 900 Ω Status information LED 2x (green/red) Output signal (error state) 2…3 mA Initialization time 250 ms Electrical data Connection type Cable, 5-wire, 0.3 m Supply voltage 12 V DC … 30 V DC Current consumption < 30 mA (+ Iloop) @ 24 V Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 961 years (EN ISO 13849-1) Mechanical data Dimensions 38.8 mm x 30 mm x 10.4 mm Weight Approx. 60 g Housing material Plastic (PA12), glass-fiber reinforced Material, cable PUR Ambient data EMC EN 61326-1 Enclosure rating IP66 IP67 IP68 IP69K Operating temperature range –40 °C … +80 °C Storage temperature range –40 °C … +85 °C Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 10 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270790 eCl@ss 5.1.4 27270790 eCl@ss 6.0 27270790 eCl@ss 6.2 27270790 eCl@ss 7.0 27270790 eCl@ss 8.0 27270790 eCl@ss 8.1 27270790 eCl@ss 9.0 27270790 eCl@ss 10.0 27271101 eCl@ss 11.0 27271101 eCl@ss 12.0 27271101 ETIM 5.0 EC001852 ETIM 6.0 EC001852 ETIM 7.0 EC001852 ETIM 8.0 EC001852 UNSPSC 16.0901 41111613 İlgili ürünler TMM61B-PCH090 – 1073787SICKEğim Sensörleri ₺5.500,00 Ürüne Git TMS88A-PCI360 – 1073802SICKEğim Sensörleri ₺5.500,00 Ürüne Git TMS88D-ACI360 – 1098668SICKEğim Sensörleri ₺5.500,00 Ürüne Git TMM88B-PLC090 – 1073797SICKEğim Sensörleri ₺5.500,00 Ürüne Git
Tecnichal data Performance Number of axis 2 Measuring range ± 90° Resolution ≤ 0.015° Static measurement accuracy Typ. 0.25°, max. 0.6° Repeatability 30 μA Compensated cross-sensitivity (2-dimensional) Typ. ± 0.5°, max. ± 0.9° Temperature coefficient (zero point) ±0.03°/K Limit frequency 2 Hz Sampling rate 400 Hz Interfaces Communication interface Analog / Current Current output 4 mA … 20 mA 0-set function via hardware pin ✔ Load resistance 200 Ω … 900 Ω Status information LED 2x (green/red) Output signal (error state) 2…3 mA Initialization time 250 ms Electrical data Connection type Cable, 5-wire, 0.3 m Supply voltage 12 V DC … 30 V DC Current consumption < 30 mA (+ Iloop) @ 24 V Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 961 years (EN ISO 13849-1) Mechanical data Dimensions 38.8 mm x 30 mm x 10.4 mm Weight Approx. 60 g Housing material Plastic (PA12), glass-fiber reinforced Material, cable PUR Ambient data EMC EN 61326-1 Enclosure rating IP66 IP67 IP68 IP69K Operating temperature range –40 °C … +80 °C Storage temperature range –40 °C … +85 °C Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 10 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270790 eCl@ss 5.1.4 27270790 eCl@ss 6.0 27270790 eCl@ss 6.2 27270790 eCl@ss 7.0 27270790 eCl@ss 8.0 27270790 eCl@ss 8.1 27270790 eCl@ss 9.0 27270790 eCl@ss 10.0 27271101 eCl@ss 11.0 27271101 eCl@ss 12.0 27271101 ETIM 5.0 EC001852 ETIM 6.0 EC001852 ETIM 7.0 EC001852 ETIM 8.0 EC001852 UNSPSC 16.0901 41111613
