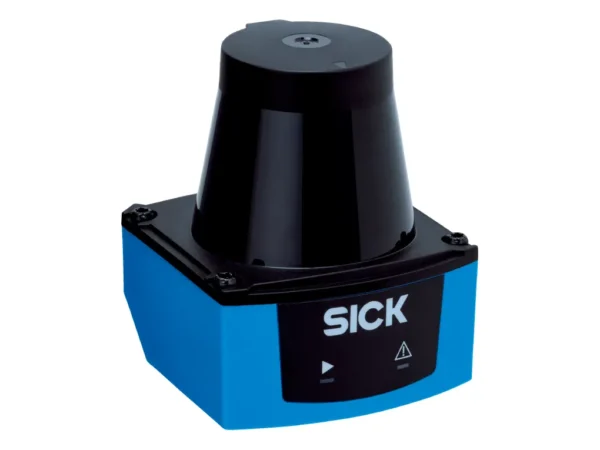

Home Alan Tarayıcılar (LiDAR) TIM100-3010200 – 1077524 🔍 TIM100-3010200 – 1077524 ✉ Teklif Al Teklif Al Stok kodu: 1077524 Kategoriler: Alan Tarayıcılar (LiDAR) Marka: SICK Açıklama Tecnichal data Features Measurement principle HDDM+ Application Indoor Light source Infrared (850 nm) Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014) Aperture angle Horizontal 200° Scanning frequency 14.5 Hz Angular resolution 1° Working range 0.05 m … 3 m Scanning range At 10% remission factor 1.2 m … 1.5 m, depending on the angle Mechanics/electronics Connection type 1 x 5-pin M12 male device connector (rotatable) Supply voltage 9 V DC … 28 V DC Power consumption Typ. 2.2 W Output current ≤ 100 mA Housing color Light blue (RAL 5012) Enclosure rating IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013) Protection class III (IEC 61140:2016-1) Weight 90 g, without connecting cables Dimensions (L x W x H) 60 mm x 60 mm x 75.8 mm MTBF 50 years Safety-related parameters MTTFD > 100 years Performance Response time Typ. 70 ms Detectable object shape Almost any Systematic error ± 50 mm Statistical error 20 mm Integrated application Field evaluation Number of field sets 1 field set Simultaneous evaluation cases 1 (2 fields) Interfaces IO-Link ✔ Function Service interface, parameterization Digital inputs 1 Digital outputs 2 (Push-pull) Delay time 69 ms … 30,015 ms (configurable) Dwell time 69 ms … 30,015 ms (configurable) Optical indicators 2 LEDs (ON, switching status) Ambient data Object remission 4 % … 1,000 % (reflectors) Electromagnetic compatibility (EMC) IEC 61000-6-3:2006+AMD1:2010 / IEC 61000-6-2:2005 Vibration resistance Sine resonance scan 10 Hz … 500 Hz Sine test 10 Hz … 500 Hz, 5 g, 10 frequency cycles Noise test 10 Hz … 500 Hz, 5 g RMS, 2 h Ambient operating temperature –10 °C … +50 °C Storage temperature –30 °C … +70 °C Permissible relative humidity ≤ 95 %, Non-condensing Ambient light immunity 80,000 lx General notes Note on use The sensor does not constitute a safety component as defined by relevant legislation on machine safety. Classifications ECLASS 5.0 27270990 ECLASS 5.1.4 27270990 ECLASS 6.0 27270913 ECLASS 6.2 27270913 ECLASS 7.0 27270913 ECLASS 8.0 27270913 ECLASS 8.1 27270913 ECLASS 9.0 27270913 ECLASS 10.0 27270913 ECLASS 11.0 27270913 ECLASS 12.0 27270913 ETIM 5.0 EC002550 ETIM 6.0 EC002550 ETIM 7.0 EC002550 ETIM 8.0 EC002550 UNSPSC 16.0901 41111615 İlgili ürünler TIM581-2050101 – 1099504SICKAlan Tarayıcılar (LiDAR) ₺55.000,00 Ürüne Git TIM320-1031000 – 1063467SICKAlan Tarayıcılar (LiDAR) ₺55.000,00 Ürüne Git TIM310-1030000S02 – 1062221SICKAlan Tarayıcılar (LiDAR) ₺55.000,00 Ürüne Git TIM361-2134101S02 – 1080182SICKAlan Tarayıcılar (LiDAR) ₺55.000,00 Ürüne Git
Tecnichal data Features Measurement principle HDDM+ Application Indoor Light source Infrared (850 nm) Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014) Aperture angle Horizontal 200° Scanning frequency 14.5 Hz Angular resolution 1° Working range 0.05 m … 3 m Scanning range At 10% remission factor 1.2 m … 1.5 m, depending on the angle Mechanics/electronics Connection type 1 x 5-pin M12 male device connector (rotatable) Supply voltage 9 V DC … 28 V DC Power consumption Typ. 2.2 W Output current ≤ 100 mA Housing color Light blue (RAL 5012) Enclosure rating IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013) Protection class III (IEC 61140:2016-1) Weight 90 g, without connecting cables Dimensions (L x W x H) 60 mm x 60 mm x 75.8 mm MTBF 50 years Safety-related parameters MTTFD > 100 years Performance Response time Typ. 70 ms Detectable object shape Almost any Systematic error ± 50 mm Statistical error 20 mm Integrated application Field evaluation Number of field sets 1 field set Simultaneous evaluation cases 1 (2 fields) Interfaces IO-Link ✔ Function Service interface, parameterization Digital inputs 1 Digital outputs 2 (Push-pull) Delay time 69 ms … 30,015 ms (configurable) Dwell time 69 ms … 30,015 ms (configurable) Optical indicators 2 LEDs (ON, switching status) Ambient data Object remission 4 % … 1,000 % (reflectors) Electromagnetic compatibility (EMC) IEC 61000-6-3:2006+AMD1:2010 / IEC 61000-6-2:2005 Vibration resistance Sine resonance scan 10 Hz … 500 Hz Sine test 10 Hz … 500 Hz, 5 g, 10 frequency cycles Noise test 10 Hz … 500 Hz, 5 g RMS, 2 h Ambient operating temperature –10 °C … +50 °C Storage temperature –30 °C … +70 °C Permissible relative humidity ≤ 95 %, Non-condensing Ambient light immunity 80,000 lx General notes Note on use The sensor does not constitute a safety component as defined by relevant legislation on machine safety. Classifications ECLASS 5.0 27270990 ECLASS 5.1.4 27270990 ECLASS 6.0 27270913 ECLASS 6.2 27270913 ECLASS 7.0 27270913 ECLASS 8.0 27270913 ECLASS 8.1 27270913 ECLASS 9.0 27270913 ECLASS 10.0 27270913 ECLASS 11.0 27270913 ECLASS 12.0 27270913 ETIM 5.0 EC002550 ETIM 6.0 EC002550 ETIM 7.0 EC002550 ETIM 8.0 EC002550 UNSPSC 16.0901 41111615
