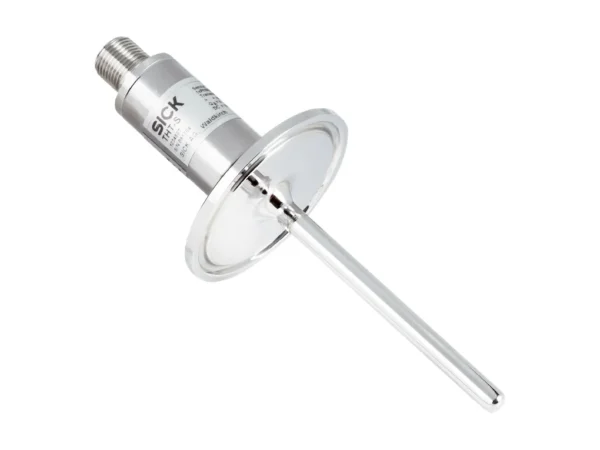

Home Sıcaklık Sensörleri THTS-1PAD20256MZ – 6071587 🔍 THTS-1PAD20256MZ – 6071587 ✉ Teklif Al Teklif Al Stok kodu: 6071587 Kategoriler: Sıcaklık Sensörleri Marka: SICK Açıklama Tecnichal data Features Measuring range –50 °C … +150 °C Sensor element Pt100, Pt1000 (for 4 mA … 20 mA version) Output signal Pt100, 4-wire Mechanics/electronics Process connection Clamp (DIN 32676) DN 10, DN 15, DN 20 Insertion length/diameter of probe 25 mm / 6 mm Wetted parts Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm Pressure resistance Max. 16 bar at room temperature Housing material Stainless steel (CrNi) Connection type M12 round connector x 1, 4-pin Enclosure rating IP67 IP69 Measuring current 0.1 mA … 1 mA Electrical safety Protection class: III, dielectric strength: 500 V AC Protection class III ✔ RoHS certificate ✔ Initialization time Max. 4 s Performance Accuracy of sensor element Class A according to IEC 60751 Transmitter accuracy ± 0,25 K Transmitter linearity ≤ ± 0.1 % of span Response time t50 ≤ 3,3 s t90 ≤ 9,7 s Ambient data Ambient temperature –40 °C … +85 °C Storage and transport temperature –40 °C … +85 °C Shock resistance 50 g, 6ms (according to IEC 60068-2-27) Relative humidity 100 % Classifications eCl@ss 5.0 27200208 eCl@ss 5.1.4 27200208 eCl@ss 6.0 27200208 eCl@ss 6.2 27200208 eCl@ss 7.0 27200208 eCl@ss 8.0 27200208 eCl@ss 8.1 27200208 eCl@ss 9.0 27200208 eCl@ss 10.0 27200208 eCl@ss 11.0 27200208 eCl@ss 12.0 27200208 ETIM 5.0 EC002994 ETIM 6.0 EC002994 ETIM 7.0 EC002994 ETIM 8.0 EC002994 UNSPSC 16.0901 41112211 İlgili ürünler THTE-1PAC30256MZ – 6067146SICKSıcaklık Sensörleri ₺2.800,00 Ürüne Git THTS-1ABT10756MZ – 6067348SICKSıcaklık Sensörleri ₺2.800,00 Ürüne Git TCT-2PBN21006MZ – 6081746SICKSıcaklık Sensörleri ₺2.800,00 Ürüne Git THTS-1AAT50256MZ – 6068281SICKSıcaklık Sensörleri ₺2.800,00 Ürüne Git
Tecnichal data Features Measuring range –50 °C … +150 °C Sensor element Pt100, Pt1000 (for 4 mA … 20 mA version) Output signal Pt100, 4-wire Mechanics/electronics Process connection Clamp (DIN 32676) DN 10, DN 15, DN 20 Insertion length/diameter of probe 25 mm / 6 mm Wetted parts Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm Pressure resistance Max. 16 bar at room temperature Housing material Stainless steel (CrNi) Connection type M12 round connector x 1, 4-pin Enclosure rating IP67 IP69 Measuring current 0.1 mA … 1 mA Electrical safety Protection class: III, dielectric strength: 500 V AC Protection class III ✔ RoHS certificate ✔ Initialization time Max. 4 s Performance Accuracy of sensor element Class A according to IEC 60751 Transmitter accuracy ± 0,25 K Transmitter linearity ≤ ± 0.1 % of span Response time t50 ≤ 3,3 s t90 ≤ 9,7 s Ambient data Ambient temperature –40 °C … +85 °C Storage and transport temperature –40 °C … +85 °C Shock resistance 50 g, 6ms (according to IEC 60068-2-27) Relative humidity 100 % Classifications eCl@ss 5.0 27200208 eCl@ss 5.1.4 27200208 eCl@ss 6.0 27200208 eCl@ss 6.2 27200208 eCl@ss 7.0 27200208 eCl@ss 8.0 27200208 eCl@ss 8.1 27200208 eCl@ss 9.0 27200208 eCl@ss 10.0 27200208 eCl@ss 11.0 27200208 eCl@ss 12.0 27200208 ETIM 5.0 EC002994 ETIM 6.0 EC002994 ETIM 7.0 EC002994 ETIM 8.0 EC002994 UNSPSC 16.0901 41112211
