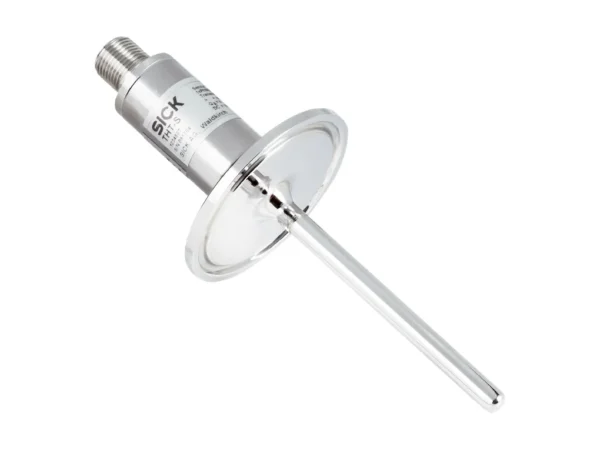

Home Sıcaklık Sensörleri THTS-1AAT21506MZ – 6071363 🔍 THTS-1AAT21506MZ – 6071363 ✉ Teklif Al Teklif Al Stok kodu: 6071363 Kategoriler: Sıcaklık Sensörleri Marka: SICK Açıklama Tecnichal data Features Measuring range –50 °C … +150 °C Sensor element Pt100, Pt1000 (for 4 mA … 20 mA version) Output signal 4 mA … 20 mA, 2-wire Maximum ohmic load RA RA ≤ (L+ – 10 V) / 0.023 A [Ohm] Mechanics/electronics Process connection Tri-Clamp 2″ Insertion length/diameter of probe 150 mm / 6 mm Wetted parts Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm Pressure resistance Max. 16 bar at room temperature Housing material Stainless steel (CrNi) Connection type M12 round connector x 1, 4-pin Enclosure rating IP67 IP69 Supply voltage 10 V DC … 35 V DC Maximum current consumption Ca. 30 mA Electrical safety Protection class: III, dielectric strength: 500 V AC, Reverse polarity protection: L+ to M Protection class III ✔ CE-conformity 2004/108/EC, EN 61326-2-3 RoHS certificate ✔ Initialization time Max. 4 s Performance Accuracy of sensor element Class A according to IEC 60751 Transmitter accuracy ± 0,25 K Transmitter linearity ≤ ± 0.1 % of span Response time t50 ≤ 3,3 s t90 ≤ 9,7 s Ambient data Ambient temperature –40 °C … +85 °C Storage and transport temperature –40 °C … +85 °C Shock resistance 50 g, 6ms (according to IEC 60068-2-27) Relative humidity 100 % Classifications eCl@ss 5.0 27200208 eCl@ss 5.1.4 27200208 eCl@ss 6.0 27200208 eCl@ss 6.2 27200208 eCl@ss 7.0 27200208 eCl@ss 8.0 27200208 eCl@ss 8.1 27200208 eCl@ss 9.0 27200208 eCl@ss 10.0 27200208 eCl@ss 11.0 27200208 eCl@ss 12.0 27200208 ETIM 5.0 EC002994 ETIM 6.0 EC002994 ETIM 7.0 EC002994 ETIM 8.0 EC002994 UNSPSC 16.0901 41112211 İlgili ürünler THTS-1ABT10756MZ – 6067348SICKSıcaklık Sensörleri ₺2.800,00 Ürüne Git TCT-2PAZZ2506MZ – 6081750SICKSıcaklık Sensörleri ₺2.800,00 Ürüne Git THTS-1PBT51506MZ – 6067239SICKSıcaklık Sensörleri ₺2.800,00 Ürüne Git TCT-2ABGE1506MZ – 6081743SICKSıcaklık Sensörleri ₺2.800,00 Ürüne Git
Tecnichal data Features Measuring range –50 °C … +150 °C Sensor element Pt100, Pt1000 (for 4 mA … 20 mA version) Output signal 4 mA … 20 mA, 2-wire Maximum ohmic load RA RA ≤ (L+ – 10 V) / 0.023 A [Ohm] Mechanics/electronics Process connection Tri-Clamp 2″ Insertion length/diameter of probe 150 mm / 6 mm Wetted parts Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm Pressure resistance Max. 16 bar at room temperature Housing material Stainless steel (CrNi) Connection type M12 round connector x 1, 4-pin Enclosure rating IP67 IP69 Supply voltage 10 V DC … 35 V DC Maximum current consumption Ca. 30 mA Electrical safety Protection class: III, dielectric strength: 500 V AC, Reverse polarity protection: L+ to M Protection class III ✔ CE-conformity 2004/108/EC, EN 61326-2-3 RoHS certificate ✔ Initialization time Max. 4 s Performance Accuracy of sensor element Class A according to IEC 60751 Transmitter accuracy ± 0,25 K Transmitter linearity ≤ ± 0.1 % of span Response time t50 ≤ 3,3 s t90 ≤ 9,7 s Ambient data Ambient temperature –40 °C … +85 °C Storage and transport temperature –40 °C … +85 °C Shock resistance 50 g, 6ms (according to IEC 60068-2-27) Relative humidity 100 % Classifications eCl@ss 5.0 27200208 eCl@ss 5.1.4 27200208 eCl@ss 6.0 27200208 eCl@ss 6.2 27200208 eCl@ss 7.0 27200208 eCl@ss 8.0 27200208 eCl@ss 8.1 27200208 eCl@ss 9.0 27200208 eCl@ss 10.0 27200208 eCl@ss 11.0 27200208 eCl@ss 12.0 27200208 ETIM 5.0 EC002994 ETIM 6.0 EC002994 ETIM 7.0 EC002994 ETIM 8.0 EC002994 UNSPSC 16.0901 41112211
