Technical Specs
Basic Block Features
Wire Range (Rated Cross Section):10 mm² ( AWG 20 – AWG 6)
UL/CSA Voltage Rating:150V AC/DC
UL/CSA Current Rating:51 A
Width:10 mm
Electrical Standards/ Certifications:IEC / UL / CSA / ATEX / IECEx
Color:Grey
Detail Data

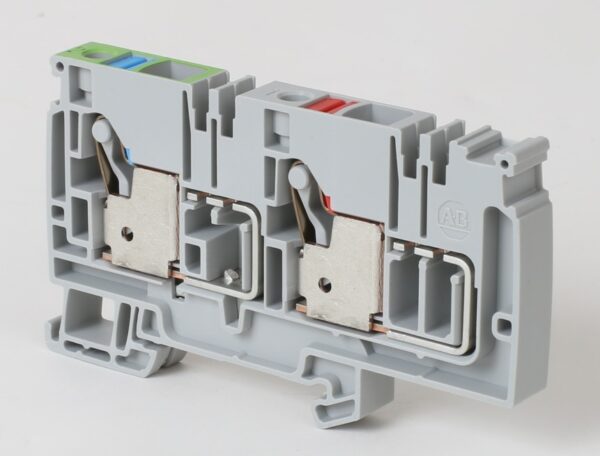

Block Type:Control Power Distribution Block
Circuit per Block:Two-Circuits
Connection Points:1 Point Red, 1 Point Blue
Number of Levels:Starter Block Ground
Wiring Diagram:1492-P10PD3S-1RE1G
Wire Range (Rated Cross Section):10 mm² ( AWG 20 – AWG 6)
UL/CSA Voltage Rating:150V AC/DC
UL/CSA Current Rating:51 A
Width:10 mm
Electrical Standards/ Certifications:IEC / UL / CSA / ATEX / IECEx
Color:Grey
Detail Data
Block Type:Control Power Distribution Block
Circuit per Block:Two-Circuits
Connection Points:1 Point Red, 1 Point Blue
Number of Levels:Starter Block Ground
Wiring Diagram:1492-P10PD3S-1RE1G
