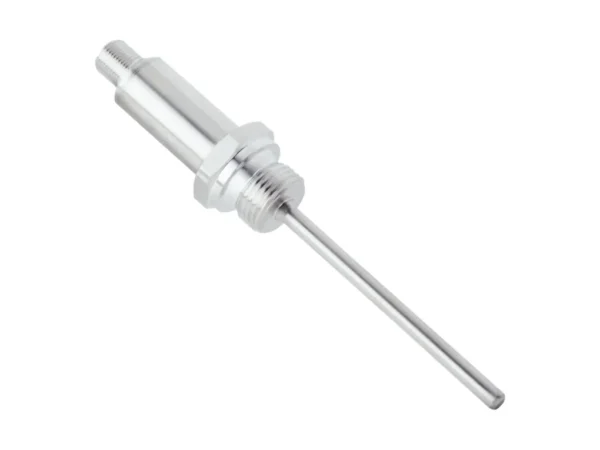

Home Sıcaklık Sensörleri TCT-2AAGE2506MZ – 6081760 🔍 TCT-2AAGE2506MZ – 6081760 ✉ Teklif Al Teklif Al Stok kodu: 6081760 Kategoriler: Sıcaklık Sensörleri Marka: SICK Açıklama Tecnichal data Features Measuring range –50 °C … +150 °C Sensor element Pt100 Output signal 4 mA … 20 mA, 2-wire Maximum ohmic load RA RA ≤ (L+ – 9 V) / 0.023 A [Ohm] Mechanics/electronics Process connection Thread G ½ B Insertion length/diameter of probe 250 mm / 6 mm Wetted parts Stainless steel 1.4571 Pressure resistance Max. 120 bar Housing material Stainless steel 1.4571 Connection type M12 round connector x 1, 4-pin Enclosure rating IP67 Measuring current 0.3 mA … 1 mA Supply voltage 10 V DC … 36 V DC Maximum current consumption Ca. 30 mA Electrical safety Protection class: III, insulation voltage: 500 V, reverse polarity protection: L+ to M Protection class III ✔ RoHS certificate ✔ Weight Ca. 145 g (depending on configuration) Initialization time < 10 ms Performance Accuracy of sensor element Class A according to IEC 60751 Transmitter accuracy ≤ ± 1,0 % of span Transmitter linearity ≤ 0.1 % of span Response time T50: ≤ 2.8 s t90 ≤ 9,1 s Ambient data Ambient temperature –40 °C … +85 °C Storage and transport temperature –40 °C … +85 °C Shock resistance according to IEC 60751 500 g Vibration resistance according to IEC 60751 3 g Classifications eCl@ss 5.0 27200208 eCl@ss 5.1.4 27200208 eCl@ss 6.0 27200208 eCl@ss 6.2 27200208 eCl@ss 7.0 27200208 eCl@ss 8.0 27200208 eCl@ss 8.1 27200208 eCl@ss 9.0 27200208 eCl@ss 10.0 27200208 eCl@ss 11.0 27200208 eCl@ss 12.0 27200208 ETIM 5.0 EC002994 ETIM 6.0 EC002994 ETIM 7.0 EC002994 ETIM 8.0 EC002994 UNSPSC 16.0901 41112211 İlgili ürünler TCT-2ABGE1506MZ – 6081743SICKSıcaklık Sensörleri ₺2.800,00 Ürüne Git TCT-2AAGE1506MZ – 6081749SICKSıcaklık Sensörleri ₺2.800,00 Ürüne Git TCT-2AAGE1006MZ – 6081744SICKSıcaklık Sensörleri ₺2.800,00 Ürüne Git THTS-1PAC30256MZ – 6067145SICKSıcaklık Sensörleri ₺2.800,00 Ürüne Git
Tecnichal data Features Measuring range –50 °C … +150 °C Sensor element Pt100 Output signal 4 mA … 20 mA, 2-wire Maximum ohmic load RA RA ≤ (L+ – 9 V) / 0.023 A [Ohm] Mechanics/electronics Process connection Thread G ½ B Insertion length/diameter of probe 250 mm / 6 mm Wetted parts Stainless steel 1.4571 Pressure resistance Max. 120 bar Housing material Stainless steel 1.4571 Connection type M12 round connector x 1, 4-pin Enclosure rating IP67 Measuring current 0.3 mA … 1 mA Supply voltage 10 V DC … 36 V DC Maximum current consumption Ca. 30 mA Electrical safety Protection class: III, insulation voltage: 500 V, reverse polarity protection: L+ to M Protection class III ✔ RoHS certificate ✔ Weight Ca. 145 g (depending on configuration) Initialization time < 10 ms Performance Accuracy of sensor element Class A according to IEC 60751 Transmitter accuracy ≤ ± 1,0 % of span Transmitter linearity ≤ 0.1 % of span Response time T50: ≤ 2.8 s t90 ≤ 9,1 s Ambient data Ambient temperature –40 °C … +85 °C Storage and transport temperature –40 °C … +85 °C Shock resistance according to IEC 60751 500 g Vibration resistance according to IEC 60751 3 g Classifications eCl@ss 5.0 27200208 eCl@ss 5.1.4 27200208 eCl@ss 6.0 27200208 eCl@ss 6.2 27200208 eCl@ss 7.0 27200208 eCl@ss 8.0 27200208 eCl@ss 8.1 27200208 eCl@ss 9.0 27200208 eCl@ss 10.0 27200208 eCl@ss 11.0 27200208 eCl@ss 12.0 27200208 ETIM 5.0 EC002994 ETIM 6.0 EC002994 ETIM 7.0 EC002994 ETIM 8.0 EC002994 UNSPSC 16.0901 41112211
