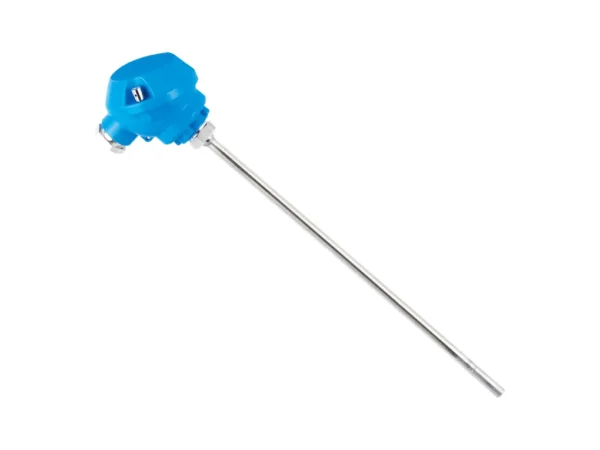

Home Diğer (Montaj / Aksesuar) TBT-1PBG13506PZ – 6066287 🔍 TBT-1PBG13506PZ – 6066287 ✉ Teklif Al Teklif Al Stok kodu: 6066287 Kategoriler: Diğer (Montaj / Aksesuar) Marka: SICK Açıklama Tecnichal data Features Measuring range –50 °C … +250 °C Sensor element Pt100 Output signal Pt100, 4-wire Mechanics/electronics Process connection Thread G ¼ B Insertion length/diameter of probe 350 mm / 6 mm Wetted parts Stainless steel 1.4571 Pressure resistance Max. 120 bar Housing material Aluminum Connection type Cable gland M16 x 1.5 Enclosure rating IP67 Measuring current 0.3 mA … 1 mA Electrical safety Protection class: III, dielectric strength: 100 V Protection class III ✔ CE-conformity 2004/108/EC, EN 61326-2-3 RoHS certificate ✔ Weight Ca. 155 g (depending on configuration) Initialization time < 1 ms Performance Accuracy of sensor element Class A according to IEC 60751 Transmitter accuracy ≤ ± 0.1 % of span Transmitter linearity ≤ 0.1 % of span Response time Response time t50: ≤ 5.8 s Response time t90: ≤ 15.5 s Ambient data Ambient temperature –40 °C … +125 °C Storage and transport temperature –40 °C … +60 °C Shock resistance according to IEC 60751 500 g Vibration resistance according to IEC 60751 3 g Classifications eCl@ss 5.0 27200208 eCl@ss 5.1.4 27200208 eCl@ss 6.0 27200208 eCl@ss 6.2 27200208 eCl@ss 7.0 27200208 eCl@ss 8.0 27200208 eCl@ss 8.1 27200208 eCl@ss 9.0 27200208 eCl@ss 10.0 27200208 eCl@ss 11.0 27200208 eCl@ss 12.0 27200208 ETIM 5.0 EC002994 ETIM 6.0 EC002994 ETIM 7.0 EC002994 ETIM 8.0 EC002994 UNSPSC 16.0901 41112211 İlgili ürünler IE-SFP/1250-ED SSBX-SM1490-LC – 808-38728AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED MM850-LC – SFP-GMM-550AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git Ağ Modülleri IE-SFP/1250-ED, MM1310-LC – SFP-GMM-2KAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSBX-SM1310-LC – 808-38727AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git
Tecnichal data Features Measuring range –50 °C … +250 °C Sensor element Pt100 Output signal Pt100, 4-wire Mechanics/electronics Process connection Thread G ¼ B Insertion length/diameter of probe 350 mm / 6 mm Wetted parts Stainless steel 1.4571 Pressure resistance Max. 120 bar Housing material Aluminum Connection type Cable gland M16 x 1.5 Enclosure rating IP67 Measuring current 0.3 mA … 1 mA Electrical safety Protection class: III, dielectric strength: 100 V Protection class III ✔ CE-conformity 2004/108/EC, EN 61326-2-3 RoHS certificate ✔ Weight Ca. 155 g (depending on configuration) Initialization time < 1 ms Performance Accuracy of sensor element Class A according to IEC 60751 Transmitter accuracy ≤ ± 0.1 % of span Transmitter linearity ≤ 0.1 % of span Response time Response time t50: ≤ 5.8 s Response time t90: ≤ 15.5 s Ambient data Ambient temperature –40 °C … +125 °C Storage and transport temperature –40 °C … +60 °C Shock resistance according to IEC 60751 500 g Vibration resistance according to IEC 60751 3 g Classifications eCl@ss 5.0 27200208 eCl@ss 5.1.4 27200208 eCl@ss 6.0 27200208 eCl@ss 6.2 27200208 eCl@ss 7.0 27200208 eCl@ss 8.0 27200208 eCl@ss 8.1 27200208 eCl@ss 9.0 27200208 eCl@ss 10.0 27200208 eCl@ss 11.0 27200208 eCl@ss 12.0 27200208 ETIM 5.0 EC002994 ETIM 6.0 EC002994 ETIM 7.0 EC002994 ETIM 8.0 EC002994 UNSPSC 16.0901 41112211
