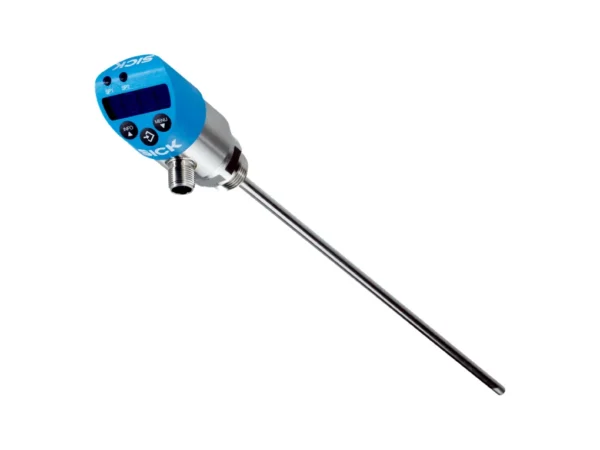

Home Akış (Flow) Sensörleri TBS-1DES23506CE – 6069271 🔍 TBS-1DES23506CE – 6069271 ✉ Teklif Al Teklif Al Stok kodu: 6069271 Kategoriler: Akış (Flow) Sensörleri Marka: SICK Açıklama Tecnichal data Features Temperature measuring range –20 °C … +120 °C Sensor element Pt1000, 2-wire, class A according to IEC 60751 Output signals 2 x PNP + 4 mA … 20 mA Switching output Transistor Switching voltage Supply voltage [V DC] – 1 V DC Maximum switching current ≤ 250 mA Switching delay 0 s … 50 s, programmable Setting accuracy of switching outputs +0.1 °C Switching output Transistor Number 2 Switching voltage Supply voltage [V DC] – 1 V DC Maximum switching current ≤ 250 mA Switching delay 0 s … 50 s, programmable Setting accuracy of switching outputs +0.1 °C Scaling of measuring range Zero point: max. +25 % of span Full scale: max. –25 % of span Scaling of measuring range Max. +25 % of span, max. –25 % of span Display 14-segment LED, blue, 4-digits, height 9 mm, Display electronically turnable by 180 °, update: 200 ms Rotatable housing Display against housing with electrical connection: 330 ° Housing against process connection: 320 ° Mechanics/electronics Process connection Compression fitting G ½ A according to DIN 3852-A Insertion length/diameter of probe 350 mm / 6 mm Seal Copper Wetted parts Stainless steel 1.4571 (AISI 316Ti) Maximum process pressure ≤ 150 bar Housing material Lower body: stainless steel 1.4301 (AISI 304) Plastic head: PC + ABS Input keypad: TPE-E Display window: PC Connection type Round connector M12 x 1, 5-pin Enclosure rating IP65 IP67 Maximum ohmic load RA ≤ 100 kΩ (Switching outputs) < 0.5 kΩ (output signal 4 mA … 20 mA) Supply voltage 15 V DC … 35 V DC Maximum current consumption 45 mA Total current consumption 570 mA (incl. switching current) 320 mA Protection class III Isolation voltage 500 V DC Overvoltage protection 40 V DC Short-circuit protection Outputs QA, Q1, Q2 towards M Reverse polarity protection L+ towards M Electrical safety Protection class III Isolation voltage 500 V DC Overvoltage protection 40 V DC Short-circuit protection Outputs QA, Q1, Q2 towards M Reverse polarity protection L+ towards M CE-conformity 2004/108/EC, EN 61326-1 emission (group 1, class B) and interference immunity (industrial application) RoHS certificate ✔ MTTF 283 years Performance Accuracy of sensor element ≤ ± (0.15 °C + 0.002 |t|) Accuracy of switching output ≤ ± 0.8 % of span Display accuracy ≤ ± 0.8 % of span ± 1 digit Accuracy of analog output ≤ ± 0.5 % of span Response time t50 ≤ 5 s Response time t90 ≤ 10 s Ambient data Ambient temperature –20 °C … +80 °C Storage and transport temperature –20 °C … +80 °C Relative humidity 45 % … 75 % Classifications eCl@ss 5.0 27200208 eCl@ss 5.1.4 27200208 eCl@ss 6.0 27200208 eCl@ss 6.2 27200208 eCl@ss 7.0 27200208 eCl@ss 8.0 27200208 eCl@ss 8.1 27200208 eCl@ss 9.0 27200208 eCl@ss 10.0 27200208 eCl@ss 11.0 27200208 eCl@ss 12.0 27200208 ETIM 5.0 EC002994 ETIM 6.0 EC002994 ETIM 7.0 EC002994 ETIM 8.0 EC002994 UNSPSC 16.0901 41112211 İlgili ürünler FUM-H025F1GE80000 – 1082033SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git SES70-HN025AK22 – 1074671SICKAkış (Flow) Sensörleri ₺850,00 Ürüne Git FUM-H025F1NE80000 – 1082035SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git FUM-H025F1GE50000 – 1082028SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git
Tecnichal data Features Temperature measuring range –20 °C … +120 °C Sensor element Pt1000, 2-wire, class A according to IEC 60751 Output signals 2 x PNP + 4 mA … 20 mA Switching output Transistor Switching voltage Supply voltage [V DC] – 1 V DC Maximum switching current ≤ 250 mA Switching delay 0 s … 50 s, programmable Setting accuracy of switching outputs +0.1 °C Switching output Transistor Number 2 Switching voltage Supply voltage [V DC] – 1 V DC Maximum switching current ≤ 250 mA Switching delay 0 s … 50 s, programmable Setting accuracy of switching outputs +0.1 °C Scaling of measuring range Zero point: max. +25 % of span Full scale: max. –25 % of span Scaling of measuring range Max. +25 % of span, max. –25 % of span Display 14-segment LED, blue, 4-digits, height 9 mm, Display electronically turnable by 180 °, update: 200 ms Rotatable housing Display against housing with electrical connection: 330 ° Housing against process connection: 320 ° Mechanics/electronics Process connection Compression fitting G ½ A according to DIN 3852-A Insertion length/diameter of probe 350 mm / 6 mm Seal Copper Wetted parts Stainless steel 1.4571 (AISI 316Ti) Maximum process pressure ≤ 150 bar Housing material Lower body: stainless steel 1.4301 (AISI 304) Plastic head: PC + ABS Input keypad: TPE-E Display window: PC Connection type Round connector M12 x 1, 5-pin Enclosure rating IP65 IP67 Maximum ohmic load RA ≤ 100 kΩ (Switching outputs) < 0.5 kΩ (output signal 4 mA … 20 mA) Supply voltage 15 V DC … 35 V DC Maximum current consumption 45 mA Total current consumption 570 mA (incl. switching current) 320 mA Protection class III Isolation voltage 500 V DC Overvoltage protection 40 V DC Short-circuit protection Outputs QA, Q1, Q2 towards M Reverse polarity protection L+ towards M Electrical safety Protection class III Isolation voltage 500 V DC Overvoltage protection 40 V DC Short-circuit protection Outputs QA, Q1, Q2 towards M Reverse polarity protection L+ towards M CE-conformity 2004/108/EC, EN 61326-1 emission (group 1, class B) and interference immunity (industrial application) RoHS certificate ✔ MTTF 283 years Performance Accuracy of sensor element ≤ ± (0.15 °C + 0.002 |t|) Accuracy of switching output ≤ ± 0.8 % of span Display accuracy ≤ ± 0.8 % of span ± 1 digit Accuracy of analog output ≤ ± 0.5 % of span Response time t50 ≤ 5 s Response time t90 ≤ 10 s Ambient data Ambient temperature –20 °C … +80 °C Storage and transport temperature –20 °C … +80 °C Relative humidity 45 % … 75 % Classifications eCl@ss 5.0 27200208 eCl@ss 5.1.4 27200208 eCl@ss 6.0 27200208 eCl@ss 6.2 27200208 eCl@ss 7.0 27200208 eCl@ss 8.0 27200208 eCl@ss 8.1 27200208 eCl@ss 9.0 27200208 eCl@ss 10.0 27200208 eCl@ss 11.0 27200208 eCl@ss 12.0 27200208 ETIM 5.0 EC002994 ETIM 6.0 EC002994 ETIM 7.0 EC002994 ETIM 8.0 EC002994 UNSPSC 16.0901 41112211
