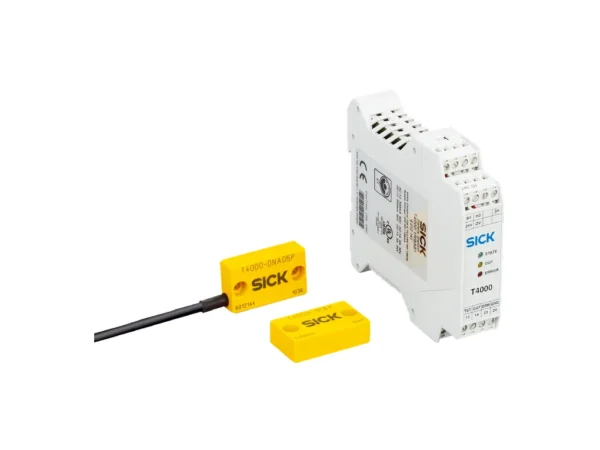

Home Diğer (Montaj / Aksesuar) T4000-DNA10P SENSOR MIT LEITUNG 10M – 6012145 🔍 T4000-DNA10P SENSOR MIT LEITUNG 10M – 6012145 ✉ Teklif Al Teklif Al Stok kodu: 6012145 Kategoriler: Diğer (Montaj / Aksesuar) Marka: SICK Açıklama Tecnichal data Features System part Sensor Sensor principle RFID Safe switch on distance Sao 5 mm 10 mm Safe switch off distance Sar 23 mm 32 mm Active sensor surfaces 1 Actuation directions 5 Monitoring time minimum dwell time ≥ 0.5 s Coding Uniquely coded Functions Safe series connection None, only individual wiring (with diagnostics) Interfaces Connection type Cable Length of cable 10 m Cable diameter 4.6 mm Conductor cross section 0.25 mm² Bend radius (with fixed installation) > 5 x cable diameter Bend radius (with moving cable) > 10 x cable diameter Cable material PVC Conductor material Copper Mechanical data Design Rectangular Dimensions (W x H x D) 25 mm x 42 mm x 12 mm Weight 0.39 kg Housing material Fortron, glass-fiber reinforced thermoplastic Ambient data Enclosure rating IP67 Ambient operating temperature –25 °C … +70 °C Storage temperature –25 °C … +70 °C Classifications ECLASS 5.0 27272403 ECLASS 5.1.4 27272403 ECLASS 6.0 27272403 ECLASS 6.2 27272403 ECLASS 7.0 27272403 ECLASS 8.0 27272403 ECLASS 8.1 27272403 ECLASS 9.0 27272403 ECLASS 10.0 27272403 ECLASS 11.0 27272403 ECLASS 12.0 27274601 ETIM 5.0 EC001829 ETIM 6.0 EC001829 ETIM 7.0 EC001829 ETIM 8.0 EC001829 UNSPSC 16.0901 39122205 İlgili ürünler SFP MODULE 100BASE-FX, MM 2KM – SFP-100FX-M-2KM-TAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP+-10G-SR-IT, 850nm, MM, 400m – 40 85? – SFP-XMM-LCI-400AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSLX-SM1310-SC – 808-38221AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSLX-SM1550/PLUS-LC – 808-38724AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git
Tecnichal data Features System part Sensor Sensor principle RFID Safe switch on distance Sao 5 mm 10 mm Safe switch off distance Sar 23 mm 32 mm Active sensor surfaces 1 Actuation directions 5 Monitoring time minimum dwell time ≥ 0.5 s Coding Uniquely coded Functions Safe series connection None, only individual wiring (with diagnostics) Interfaces Connection type Cable Length of cable 10 m Cable diameter 4.6 mm Conductor cross section 0.25 mm² Bend radius (with fixed installation) > 5 x cable diameter Bend radius (with moving cable) > 10 x cable diameter Cable material PVC Conductor material Copper Mechanical data Design Rectangular Dimensions (W x H x D) 25 mm x 42 mm x 12 mm Weight 0.39 kg Housing material Fortron, glass-fiber reinforced thermoplastic Ambient data Enclosure rating IP67 Ambient operating temperature –25 °C … +70 °C Storage temperature –25 °C … +70 °C Classifications ECLASS 5.0 27272403 ECLASS 5.1.4 27272403 ECLASS 6.0 27272403 ECLASS 6.2 27272403 ECLASS 7.0 27272403 ECLASS 8.0 27272403 ECLASS 8.1 27272403 ECLASS 9.0 27272403 ECLASS 10.0 27272403 ECLASS 11.0 27272403 ECLASS 12.0 27274601 ETIM 5.0 EC001829 ETIM 6.0 EC001829 ETIM 7.0 EC001829 ETIM 8.0 EC001829 UNSPSC 16.0901 39122205
