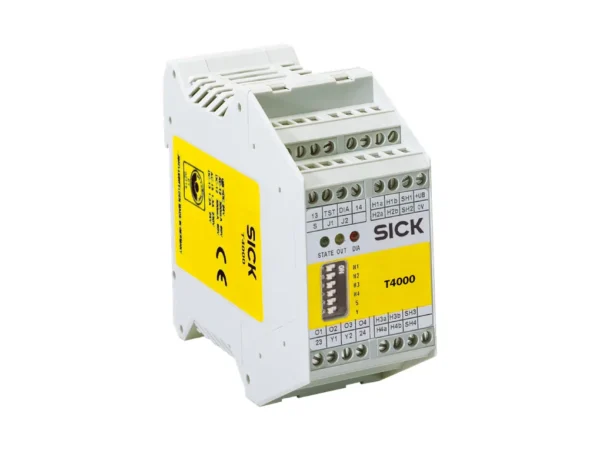

Home Diğer (Montaj / Aksesuar) T4000-1RCA04 SAFETY INTERLOOK – 6029947 🔍 T4000-1RCA04 SAFETY INTERLOOK – 6029947 ✉ Teklif Al Teklif Al Stok kodu: 6029947 Kategoriler: Diğer (Montaj / Aksesuar) Marka: SICK Açıklama Tecnichal data Features System part Evaluation unit Safety-related parameters Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 15 * 10-9 9.6 x 10-8 TM (mission time) 20 years (EN ISO 13849) 2 years (EN ISO 13849) Type Type 4 (EN ISO 14119) Actuator coding level High coding level (EN ISO 14119) Classification in compliance with IEC/EN 60947-5-3 PDF-M Functions Safe series connection None, only individual wiring (with diagnostics) Interfaces IO-Link Safety WCDT ≤ 450 ms Number of non-contact safety switches 1 … 4 Display elements Power indication ✔ Out indication ✔ Error indication ✔ Status display ✔ Electrical data Protection class III (EN 50178) Contamination rating 2 Classification according to cULus Class 2 Note on supply voltage US Operation with UL-class 2 power supply only External fuse At supply voltage Vs 0.4 A … 8 A Switching voltage 60 V DC / 30 V AC Usage category AC-12/DC-12, AC-14/DC-13 (EN 60947-5-1) Rated operating current (voltage) 0.3 A (60 V AC) 50 Hz 6 A (30 V AC) 50 Hz 0.3 A (60 V DC) 6 A (30 V DC) 1.5 A (230 V AC) 50 Hz 1.2 A (24 V DC) Rated insulation voltage Ui 250 V Rated impulse withstand voltage Uimp 4,000 V AC Supply voltage Vs 24 V DC (21 V DC … 27 V DC) Short-circuit protection 6 A gG Type of output Relays Switching voltage ≥ 1 V DC Response time ≤ 450 ms Switch-on time ≤ 10 s Number of application diagnostic outputs 4 semiconductor, p-switching Number of safe outputs (N/O) 2 Mechanical data Design Rectangular Dimensions (W x H x D) 45 mm x 114 mm x 99 mm Weight 250 g Housing material Plastic PA6.6 Mechanical life 10 x 106 switching cycles Ambient data Enclosure rating IP20 Ambient operating temperature 0 °C … +55 °C Storage temperature 0 °C … +70 °C Classifications ECLASS 5.0 27272403 ECLASS 5.1.4 27272403 ECLASS 6.0 27272403 ECLASS 6.2 27272403 ECLASS 7.0 27272403 ECLASS 8.0 27272403 ECLASS 8.1 27272403 ECLASS 9.0 27272403 ECLASS 10.0 27272403 ECLASS 11.0 27272403 ECLASS 12.0 27274601 ETIM 5.0 EC001829 ETIM 6.0 EC001829 ETIM 7.0 EC001829 ETIM 8.0 EC001829 UNSPSC 16.0901 39122205 İlgili ürünler IE-SFP/1250-ED SSLX-SM1550/PLUS-LC – 808-38724AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP MODULE 100BASE-FX, MM 2KM – SFP-100FX-M-2KM-TAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP MODULE 1000BASE-LX, SM 10KM – SFP-1000LX-S-10KM-TAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP MODULE 1000BASE-SX, MM 550M – SFP-1000SX-M-550M-TAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git
Tecnichal data Features System part Evaluation unit Safety-related parameters Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 15 * 10-9 9.6 x 10-8 TM (mission time) 20 years (EN ISO 13849) 2 years (EN ISO 13849) Type Type 4 (EN ISO 14119) Actuator coding level High coding level (EN ISO 14119) Classification in compliance with IEC/EN 60947-5-3 PDF-M Functions Safe series connection None, only individual wiring (with diagnostics) Interfaces IO-Link Safety WCDT ≤ 450 ms Number of non-contact safety switches 1 … 4 Display elements Power indication ✔ Out indication ✔ Error indication ✔ Status display ✔ Electrical data Protection class III (EN 50178) Contamination rating 2 Classification according to cULus Class 2 Note on supply voltage US Operation with UL-class 2 power supply only External fuse At supply voltage Vs 0.4 A … 8 A Switching voltage 60 V DC / 30 V AC Usage category AC-12/DC-12, AC-14/DC-13 (EN 60947-5-1) Rated operating current (voltage) 0.3 A (60 V AC) 50 Hz 6 A (30 V AC) 50 Hz 0.3 A (60 V DC) 6 A (30 V DC) 1.5 A (230 V AC) 50 Hz 1.2 A (24 V DC) Rated insulation voltage Ui 250 V Rated impulse withstand voltage Uimp 4,000 V AC Supply voltage Vs 24 V DC (21 V DC … 27 V DC) Short-circuit protection 6 A gG Type of output Relays Switching voltage ≥ 1 V DC Response time ≤ 450 ms Switch-on time ≤ 10 s Number of application diagnostic outputs 4 semiconductor, p-switching Number of safe outputs (N/O) 2 Mechanical data Design Rectangular Dimensions (W x H x D) 45 mm x 114 mm x 99 mm Weight 250 g Housing material Plastic PA6.6 Mechanical life 10 x 106 switching cycles Ambient data Enclosure rating IP20 Ambient operating temperature 0 °C … +55 °C Storage temperature 0 °C … +70 °C Classifications ECLASS 5.0 27272403 ECLASS 5.1.4 27272403 ECLASS 6.0 27272403 ECLASS 6.2 27272403 ECLASS 7.0 27272403 ECLASS 8.0 27272403 ECLASS 8.1 27272403 ECLASS 9.0 27272403 ECLASS 10.0 27272403 ECLASS 11.0 27272403 ECLASS 12.0 27274601 ETIM 5.0 EC001829 ETIM 6.0 EC001829 ETIM 7.0 EC001829 ETIM 8.0 EC001829 UNSPSC 16.0901 39122205
