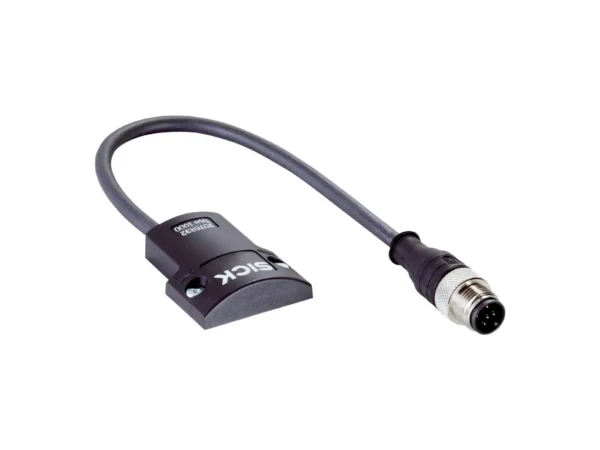

Home Konnektörler SYSTEM PLUG SP1, M12-5 W/O EXTENSION – 2076832 🔍 SYSTEM PLUG SP1, M12-5 W/O EXTENSION – 2076832 ✉ Teklif Al Teklif Al Stok kodu: 2076832 Kategoriler: Konnektörler Marka: SICK Açıklama Tecnichal data Features System part System plug Function range SP1 Items supplied System plug Functions Protective operation ✔ Automatic calibration of the protective field width ✔ Interfaces System connection Male connector M12, 5-pin PIN assignment See table in “Pin assignment” graphic Length of cable 200 mm Cable diameter 5 mm Extension connection – Configuration method DIP switch Electrical data Protection class III (IEC 61140) Supply voltage VS 24 V DC (19.2 V … 28.8 V) Ripple ≤ 10 % Ambient data Ambient operating temperature –30 °C … +55 °C Storage temperature –30 °C … +70 °C Air humidity 15 % … 95 %, Non-condensing Vibration resistance 5 g, 10 Hz … 55 Hz (IEC 60068-2-6) Shock resistance 10 g, 16 ms (IEC 60068-2-27) Classifications ECLASS 5.0 27272704 ECLASS 5.1.4 27272704 ECLASS 6.0 27272704 ECLASS 6.2 27272704 ECLASS 7.0 27272704 ECLASS 8.0 27272704 ECLASS 8.1 27272704 ECLASS 9.0 27272704 ECLASS 10.0 27272704 ECLASS 11.0 27272704 ECLASS 12.0 27272704 ETIM 5.0 EC002549 ETIM 6.0 EC002549 ETIM 7.0 EC002549 ETIM 8.0 EC002549 UNSPSC 16.0901 46171620 İlgili ürünler SCREW TERMINAL SOCKET FLARE MOVE SF38 12V – 80.063.4021.1WIELANDKonnektörler ₺450,00 Ürüne Git Busbar Connector – 141A-VC5GALLEN BRADLEYKonnektörler ₺450,00 Ürüne Git Ethernet Medya, RJ45, Standard, Right Angle Male, 4 conductors (2-pair), Teal 24 AWG Highflex TPE, Unshielded, 100BASE-TX, 100 Mbit/s, RJ45 Connector, Straight Male, standard, 5 Meters, Standard – 1585J-E4TBJM-5ALLEN BRADLEYKonnektörler ₺450,00 Ürüne Git Ethernet Medya, RJ45, Standard, Straight Male, 4 conductors (2-pair), Teal, Shielded, 22AWG 600V PVC, 100BASE-TX, 100 Mbit/s, RJ45 Connector, Straight Male, standard, 10 Meters, Standard – 1585J-M4HBJM-10ALLEN BRADLEYKonnektörler ₺450,00 Ürüne Git
Tecnichal data Features System part System plug Function range SP1 Items supplied System plug Functions Protective operation ✔ Automatic calibration of the protective field width ✔ Interfaces System connection Male connector M12, 5-pin PIN assignment See table in “Pin assignment” graphic Length of cable 200 mm Cable diameter 5 mm Extension connection – Configuration method DIP switch Electrical data Protection class III (IEC 61140) Supply voltage VS 24 V DC (19.2 V … 28.8 V) Ripple ≤ 10 % Ambient data Ambient operating temperature –30 °C … +55 °C Storage temperature –30 °C … +70 °C Air humidity 15 % … 95 %, Non-condensing Vibration resistance 5 g, 10 Hz … 55 Hz (IEC 60068-2-6) Shock resistance 10 g, 16 ms (IEC 60068-2-27) Classifications ECLASS 5.0 27272704 ECLASS 5.1.4 27272704 ECLASS 6.0 27272704 ECLASS 6.2 27272704 ECLASS 7.0 27272704 ECLASS 8.0 27272704 ECLASS 8.1 27272704 ECLASS 9.0 27272704 ECLASS 10.0 27272704 ECLASS 11.0 27272704 ECLASS 12.0 27272704 ETIM 5.0 EC002549 ETIM 6.0 EC002549 ETIM 7.0 EC002549 ETIM 8.0 EC002549 UNSPSC 16.0901 46171620
