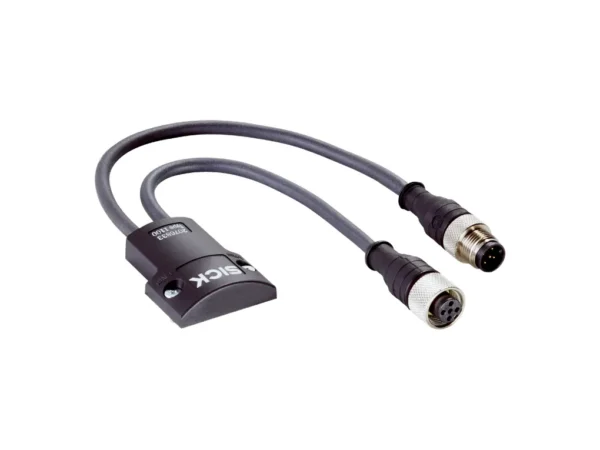

Home Konnektörler SYSTEM PLUG SP1, M12-5 W.EXTENSION – 2076833 🔍 SYSTEM PLUG SP1, M12-5 W.EXTENSION – 2076833 ✉ Teklif Al Teklif Al Stok kodu: 2076833 Kategoriler: Konnektörler Marka: SICK Açıklama Tecnichal data Features System part System plug Function range SP1 Items supplied System plug Functions Protective operation ✔ Automatic calibration of the protective field width ✔ Restart interlock ✔ External device monitoring (EDM) ✔ Cascading ✔ Interfaces System connection Male connector M12, 5-pin PIN assignment See table in “Pin assignment” graphic Length of cable 200 mm Cable diameter 5 mm Extension connection Female connector M12, 5-pin Length of cable 150 mm Cable diameter 5 mm Configuration method DIP switch Application diagnostic output (ADO) ✔ IO-Link ✔ Electrical data Protection class III (IEC 61140) Supply voltage VS 24 V DC (19.2 V … 28.8 V) Ripple ≤ 10 % Ambient data Ambient operating temperature –30 °C … +55 °C Storage temperature –30 °C … +70 °C Air humidity 15 % … 95 %, Non-condensing Vibration resistance 5 g, 10 Hz … 55 Hz (IEC 60068-2-6) Shock resistance 10 g, 16 ms (IEC 60068-2-27) Classifications ECLASS 5.0 27272704 ECLASS 5.1.4 27272704 ECLASS 6.0 27272704 ECLASS 6.2 27272704 ECLASS 7.0 27272704 ECLASS 8.0 27272704 ECLASS 8.1 27272704 ECLASS 9.0 27272704 ECLASS 10.0 27272704 ECLASS 11.0 27272704 ECLASS 12.0 27272704 ETIM 5.0 EC002549 ETIM 6.0 EC002549 ETIM 7.0 EC002549 ETIM 8.0 EC002549 UNSPSC 16.0901 46171620 İlgili ürünler Busbar Connector – 141A-VC5GALLEN BRADLEYKonnektörler ₺450,00 Ürüne Git Sensor, Inductive, Limit Switch Style, 20-250V AC, AC/DC, 17 mm Sensing Range, Top Sensing, 2 Wire, Micro Quick Disconnect Connector, Shielded – 802PR-LBAF1ALLEN BRADLEYKonnektörler ₺450,00 Ürüne Git Frames K, M, External Neutral Connector, Qty 1 – 140G-K-CCALLEN BRADLEYKonnektörler ₺450,00 Ürüne Git Plug-In Control Plug – 141A-APC10MALLEN BRADLEYKonnektörler ₺450,00 Ürüne Git
Tecnichal data Features System part System plug Function range SP1 Items supplied System plug Functions Protective operation ✔ Automatic calibration of the protective field width ✔ Restart interlock ✔ External device monitoring (EDM) ✔ Cascading ✔ Interfaces System connection Male connector M12, 5-pin PIN assignment See table in “Pin assignment” graphic Length of cable 200 mm Cable diameter 5 mm Extension connection Female connector M12, 5-pin Length of cable 150 mm Cable diameter 5 mm Configuration method DIP switch Application diagnostic output (ADO) ✔ IO-Link ✔ Electrical data Protection class III (IEC 61140) Supply voltage VS 24 V DC (19.2 V … 28.8 V) Ripple ≤ 10 % Ambient data Ambient operating temperature –30 °C … +55 °C Storage temperature –30 °C … +70 °C Air humidity 15 % … 95 %, Non-condensing Vibration resistance 5 g, 10 Hz … 55 Hz (IEC 60068-2-6) Shock resistance 10 g, 16 ms (IEC 60068-2-27) Classifications ECLASS 5.0 27272704 ECLASS 5.1.4 27272704 ECLASS 6.0 27272704 ECLASS 6.2 27272704 ECLASS 7.0 27272704 ECLASS 8.0 27272704 ECLASS 8.1 27272704 ECLASS 9.0 27272704 ECLASS 10.0 27272704 ECLASS 11.0 27272704 ECLASS 12.0 27272704 ETIM 5.0 EC002549 ETIM 6.0 EC002549 ETIM 7.0 EC002549 ETIM 8.0 EC002549 UNSPSC 16.0901 46171620
