The safety-related semiconductor outputs are in the OFF state.
Safety laser scanners
nanoScan3 Core I/O
Protective field range
3 m
Safety task
Hazardous area protection
Ambient operating temperature
–10 °C … +50 °C
Storage temperature
–20 °C … +50 °C
Air humidity
90% at 50 °C (EN 61131-2)
Voltage supply
Supply voltage VS
24 V (16.8 V … 28.8 V)
Performance level
PL d (ISO 13849-1)
Items supplied

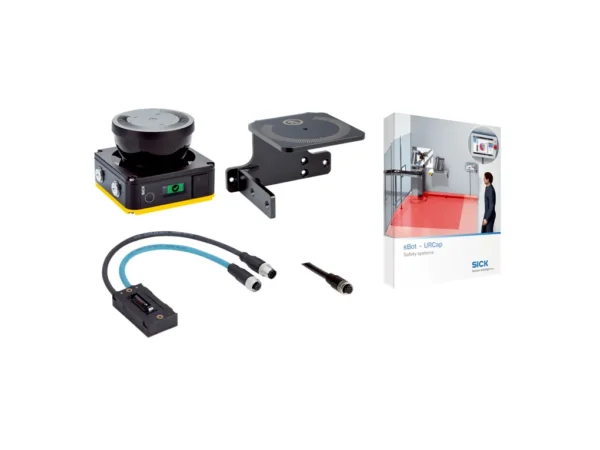

Hardware: nanoScan3 Core I/O safety laser scanner, mounting kit, system plug and connecting cable. Configuration tool software: nanoScan3 Tool – URCap and operating instructions for the sBot Stop – URCap safety system, Quick Start Guide, connection diagram and SISTEMA file. Not included with delivery: Ethernet extension cable must be selected separately.
Functions
Initiate a safety stop
Automated reset
✔
Operating mode
Operating mode selection (implemented in robot control)
