| Technical specifications |
| Accessory family |
Y-junctions |
| Connection type head A |
Male connector, M12, 4-pin, A-coded |
| Connection type head B |
Female connector, M8, 4-pin, A-coded |
| Connection type head C |
Female connector, M8, 4-pin, A-coded |
| Signal type |
Sensor/actuator cable |
| Connecting cable |
0.11 m, PVC |
| Cable material |
PVC |
| Conductor cross section |
0.34 mm² |
| Material knurled screw head A |
Zinc die-cast, nickel-plated |
| Material knurled screw head C |
Zinc die-cast, nickel-plated |
| Width across flats |
9 (M8), 13 (M12) |
| Tightening torque |
0.4 Nm (M8), 0.6 Nm (M12) |
| Shielding, head |
Unshielded |
| Reference voltage |
≤ 30 V DC |
| Rated impulse voltage |
0.8 kV |
| Current loading |
≤ 4 A |
| Contamination rating |
3 |
| Note |

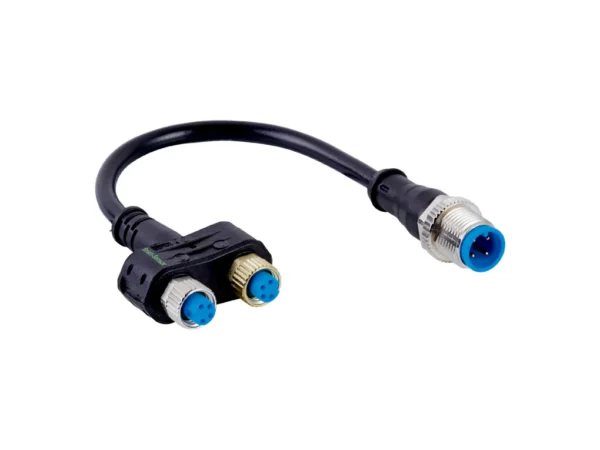

Slimline T-piece, 2 x M8 female connector + M12 male connector with cable |
| Ambient operating temperature |
–5 °C … +80 °C, flexible use
–30 °C … +80 °C, stationary position
|
| Enclosure rating |
IP67 |
| Description |
Y-distribution, 2 x M8 female connectors, 4-pin, straight, 0.11 m, PVC cable, 1 x M12 male connector, 4-pin, straight, connects a SICK sensor to a SICK Smart sensor; Female connector brassed (A): Auxiliary sensor; Female connector nickel-plated (B): Smart Sensor; Male connector nickel-plated (C): IO-Link master/ PLC |
| Ambient operating temperature |
|
| Head |
–25 °C … +80 °C |
|
|
