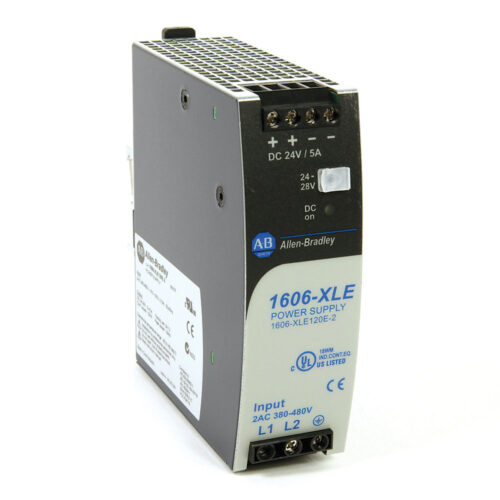

| certificates / approvals |
connection type |
screw connection |
|---|---|
number of phases |
3 phase power supply |
suitable for modular version |
no |
mounting type, other |
no |
mounting type, wall mounting |
no |
rail mounting possible |
yes |
housing material |
metal |
operating temperature min. |
-40 °C |
operating temperature max. |
71 °C |
relative humidity min. |
20 % |
relative humidity max. |
95 % |
storage temperature / transport min. |
85 °C |
storage temperature / transport max. |
-40 °C |
degree of protection (IP) |
IP20 |
pollution degree |
2 |
parallel-service possible |
no |
function display |
“DC OK” (LED green) (U(o) 17.6…19.4V) |
|---|---|
function display “DC Low” |
“DC Low” (LED red) |
short-circuit protective device |
current limiting (hiccup mode) |
temperature coefficient |
±0,03%/K |
ripple and noise |
< 0.1 V |
isolating voltage Output DC |
4242 V |
cohesive resistance (In-/Output) |
100 MOhm |
derating |
61°C…71°C: 2.5 %/K |
cooling |
free convection |
MTBF |
559,000h |
connector cross section (input |
min. 0.5mm² (AWG24)max. 6mm² (AWG10) |
connector cross section (output) |
min. 0.5mm² (AWG24)max. 6mm² (AWG10) |
wire strip length |
8 mm |
permissible torque max. |
0.6 Nm |
control “Adj” |
trimming potentiometer for fine-tuning of U(out) |
CE-Norm |
EN61000-6-3, EN 55022 Class B,EN61000-3-2, EN61000-3-3, EN61000-6-2,EN55024, EN61000-4-2, Level 4,EN61000-4-3 Level 3, EN61000-4-4 Level 4,EN61000-4-5 L-N Level 3, L/N-FG Level 4,EN61000-4-6 Level 3, EN61000-4-8 Level 4,EN61000-4-11, ENV 50204 Level 2,EN61204-3 |
TÜV/safety |
EN60950-1, EN61558-1, EN61558-2-16(comply with EN60204) , IRAM |
approval UL |
UL 508 Listed, UL60950-1 Recognized |
number of + |
2 |
number of – |
2 |
further terminals |
L1, L2, L3, N, PE, OK (2x Relay-NO) |
type of output voltage |
DC |
|---|---|
power output |
120 W |
output voltage stabilized |
yes |
output voltage |
24 V |
min. output voltage |
22.5 V |
max. output voltage |
28.5 V |
Over voltage proctection (OVP) |
≤ 33 V |
output current |
5 A |
type of voltage (input voltage) |
|
|---|---|
power consumption |
< 266 VA |
input voltage DC min. |
480 V |
input voltage DC max. |
820 V |
input voltage AC min. |
340 V |
input voltage AC max. |
575 V |
rated frequency min. |
47 Hz |
rated frequency max. |
63 Hz |
input current, max. |
0.36 A |
input current, max. |
0.5 A |
max. starting current |
10 A |
input fuse |
3x T2,0A / 600V AC (intern) |
input protection |
varistor (voltage-sensitive resistor) |
depth |
119 mm |
|---|---|
width |
74.3 mm |
height |
124 mm |
mounting distance horizontal |
25 mm |
mounting distance vertical |
25 mm |
weight |
800 g |
ECLASS 11 |
|
|---|---|
ECLASS 8.1 |
27049002 |
ETIM 9.0 |
EC002540 |
ETIM 8.0 |
EC002540 |
ETIM 7.0 |
EC002540 |
ETIM 6.0 |
EC002540 |
ETIM 5.0 |
EC002540 |
ROHS conformity status |
compliant |
|---|---|
REACH-SVHC conformity status |
compliant |
