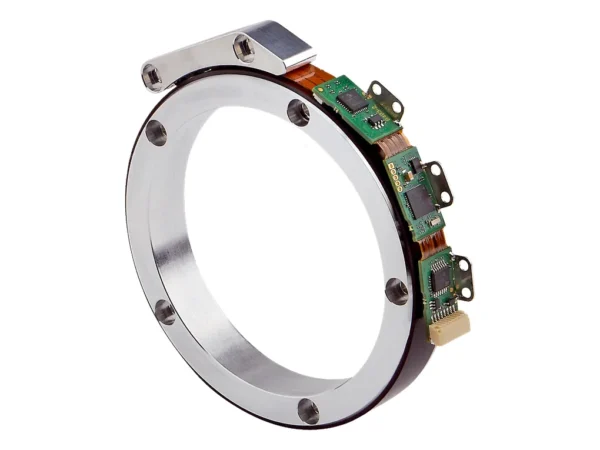

Home Akış (Flow) Sensörleri STS065-HN065-AK22 – 1121158 🔍 STS065-HN065-AK22 – 1121158 ✉ Teklif Al Teklif Al Stok kodu: 1121158 Kategoriler: Akış (Flow) Sensörleri Marka: SICK Açıklama Tecnichal data Features Items supplied Magnetic tape not included with delivery Performance Sine/cosine periods per revolution 128 Number of the absolute ascertainable revolutions 1 Total number of steps 4,096 via RS485 Measuring step 2.47 ″ For interpolation of the sine/cosine signals with, e. g., 12 bits Available memory area 1,792 Byte System accuracy ± 0.06° Repeatability 0.01°, Typical values for mechanical runout of the system from ≤ 50 µm and +20 °C Pin length 2 mm Interfaces Type of code for the absolute value Binary Code sequence Increasing, when turning the shaft For clockwise rotation, looking in direction “A” (see dimensional drawing) Communication interface HIPERFACE® Electrical data Connection type Male connector, 8-pin Supply voltage 7 V DC … 12 V DC Recommended supply voltage 8 V DC Current consumption 250 mA MTTF: mean time to dangerous failure 190 years (EN ISO 13849) Mechanical data Shaft version Through hollow shaft Material, sensor head Aluminum Material, magnetic tape 17410 Hard ferrite 9/28 P Material, ring Aluminum Dimensions See dimensional drawing Weight ≤ 0.15 kg (sensor head) ≤ 0.58 kg (Magnetic tape ring) Moment of inertia of the rotor 752 gcm² Operating speed 5,800 min⁻¹ Angular acceleration ≤ 50,000 rad/s² Permissible radial shaft movement ≤ 0.6 mm Permissible axial shaft movement ± 0.5 mm Ambient data Operating temperature range –30 °C … +105 °C, sensor head –30 °C … +100 °C, Magnetic tape ring Storage temperature range –30 °C … +100 °C, without package Relative humidity/condensation 95 %, Condensation not permitted Resistance to shocks 100 g, 6 ms (according to EN 60068-2-27) Frequency range of resistance to vibrations 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) EMC According to EN 61000-6-2 and EN 61000-6-4 Enclosure rating IP00 Temperature coefficient magnetic tape (11 ± 1) µm/K/m Maximum permitted ambient field strength < 3 kA/m … 4 kA/m (3.8 mT … 5 mT), to guarantee compliance with the quoted accuracy values Maximum permitted field strength < 150 kA/m (< 190 mT), to ensure that the magnetic tape is not permanently damaged Classifications ECLASS 5.0 27270590 ECLASS 5.1.4 27270590 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270590 ECLASS 8.0 27270590 ECLASS 8.1 27270590 ECLASS 9.0 27270590 ECLASS 10.0 27273805 ECLASS 11.0 27273901 ECLASS 12.0 27273901 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler SEM70-HN025AK22 – 1074669SICKAkış (Flow) Sensörleri ₺850,00 Ürüne Git FUM-H025F1MD80000 – 1082034SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git FUM-H025F1NE80000 – 1082035SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git FUM-H015F1NC80000 – 1082026SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git
Tecnichal data Features Items supplied Magnetic tape not included with delivery Performance Sine/cosine periods per revolution 128 Number of the absolute ascertainable revolutions 1 Total number of steps 4,096 via RS485 Measuring step 2.47 ″ For interpolation of the sine/cosine signals with, e. g., 12 bits Available memory area 1,792 Byte System accuracy ± 0.06° Repeatability 0.01°, Typical values for mechanical runout of the system from ≤ 50 µm and +20 °C Pin length 2 mm Interfaces Type of code for the absolute value Binary Code sequence Increasing, when turning the shaft For clockwise rotation, looking in direction “A” (see dimensional drawing) Communication interface HIPERFACE® Electrical data Connection type Male connector, 8-pin Supply voltage 7 V DC … 12 V DC Recommended supply voltage 8 V DC Current consumption 250 mA MTTF: mean time to dangerous failure 190 years (EN ISO 13849) Mechanical data Shaft version Through hollow shaft Material, sensor head Aluminum Material, magnetic tape 17410 Hard ferrite 9/28 P Material, ring Aluminum Dimensions See dimensional drawing Weight ≤ 0.15 kg (sensor head) ≤ 0.58 kg (Magnetic tape ring) Moment of inertia of the rotor 752 gcm² Operating speed 5,800 min⁻¹ Angular acceleration ≤ 50,000 rad/s² Permissible radial shaft movement ≤ 0.6 mm Permissible axial shaft movement ± 0.5 mm Ambient data Operating temperature range –30 °C … +105 °C, sensor head –30 °C … +100 °C, Magnetic tape ring Storage temperature range –30 °C … +100 °C, without package Relative humidity/condensation 95 %, Condensation not permitted Resistance to shocks 100 g, 6 ms (according to EN 60068-2-27) Frequency range of resistance to vibrations 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) EMC According to EN 61000-6-2 and EN 61000-6-4 Enclosure rating IP00 Temperature coefficient magnetic tape (11 ± 1) µm/K/m Maximum permitted ambient field strength < 3 kA/m … 4 kA/m (3.8 mT … 5 mT), to guarantee compliance with the quoted accuracy values Maximum permitted field strength < 150 kA/m (< 190 mT), to ensure that the magnetic tape is not permanently damaged Classifications ECLASS 5.0 27270590 ECLASS 5.1.4 27270590 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270590 ECLASS 8.0 27270590 ECLASS 8.1 27270590 ECLASS 9.0 27270590 ECLASS 10.0 27273805 ECLASS 11.0 27273901 ECLASS 12.0 27273901 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
