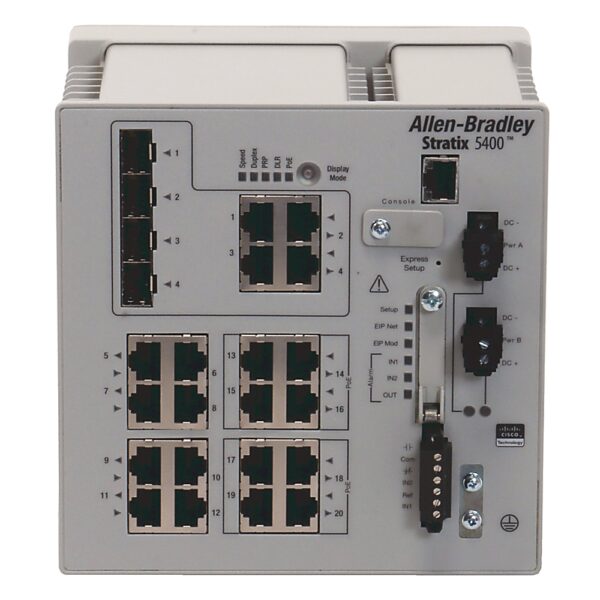

Tecnichal data
| Width | 15.54 cm |
| Height | 16.45 cm |
| Depth | 14.67 cm |
| Approximate weight | 2.88 kg |
| Screw torque, alarm terminal | 0.23 Nm |
| Screw torque, ground terminal | 0.51 Nm |
| Screw torque, power terminal | 0.56 Nm |
| Number of ports 10/100/1000 Mbps RJ45 | 16 |
| Number of combination-ports RJ45/Mini GBIC | 4 |
| Layer 2 | Yes |
| Layer 3 | No |
| Manageable | Yes |
| Power dissipation | 40 W |
| Number of combination ports 10/100/1000 Mbps | 4 |
| Power consumption at 24V DC, 40 ÃÃ ¡C | 40 W |
| Power input at 12 – 54V DC, maximum | 4.3 A |
| Total number of ports | 20 |
| Wire size, alarm connection, solid or stranded, UL/CSA-rated style 1007 or 1569 twisted-pair copper appliance wiring material (AWM) wire | 0.5 mmò |
| Wire size, ground connection, solid or stranded copper wire | 4 mmò |
| Mounting method | DIN rail (top hat rail) |
| Ethernet | Yes |
| Protection type | Alarm not rated |
| Alarm relay at 30V DC | 1 A |
| Alarm relay at 48V DC | 0.5 A |
| CIP sync (IEEE 1588) | Yes |
| DLR | Yes |
| Isolation voltage (continuous), basic insulation type, all ports to ground | 60 V |
| NAT | Yes |
| Wire size, DC power connection, solid or stranded copper wire rated at 30 Ãà ¡C, or greater, above the surrounding air temperature | 0.52 mmò |
| Wire strip length, alarm connection | 6.3ñ0.5 mm |
| Wire strip length, DC power connection | 6.3ñ0.5 mm |
| Wiring category on console ports | 3 |
| Wiring category on DC power and alarm ports | 2 |
| Wiring category on Ethernet ports | 2 |
| Housing base material | Open-style |
| Nominal position | T3 |
| Delta connected motor power, max | T3 |
| Temperature, surrounding air, maximum | 70 ðC |
| ESD immunity, IEC 61000-4-2, air discharges | 8 kV |
| ESD immunity, IEC 61000-4-2, contact discharges | 6 kV |
| Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 2000 – 2700 MHz | 20 Kg/Km |
| Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 80 – 2000 MHz | 20 Kg/Km |
| Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 900 MHz | 10 Kg/Km |
| Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock) | 30 g |
| Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock) | 15 g |
| Surge transient immunity, IEC 61000-4-5, line-earth (CM) on Ethernet ports | ñ2 kV |
| Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold) | -40 ðC |
| Temperature, operating, IEC 60068-2-14 (test Nb, operating, thermal shock) | -40 ðC |
| Temperature, operating, IEC 60068-2-2 (test Bd, operating, dry heat) | -40 ðC |
| Emissions | IEC 61000-6-4 |
| Conducted RF immunity, IEC 61000-4-6 with 1 kHz sine-wave 80% AM from 150 kHz – 80 MHz (rms) | 10 V |
| Damped oscillatory wave immunity, IEC 61000-4-18, line-earth (CM) on Ethernet ports | ñ2.5 kV |
| Damped oscillatory wave immunity, IEC 61000-4-18, line-earth (CM) on power and alarm ports | ñ2.5 kV |
| Damped oscillatory wave immunity, IEC 61000-4-18, line-line (DM) on power and alarm ports | ñ1 kV |
| EFT/B immunity for IEC 61000-4-4 at 5 Р100 kHz on alarm ports | ̱3 kV |
| EFT/B immunity for IEC 61000-4-4 at 5 Р100 kHz on DC power ports | ̱3 kV |
| EFT/B immunity for IEC 61000-4-4 at 5 Р100 kHz on Ethernet ports | ̱3 kV |
| Magnetic field immunity, IEC 61000-4-8, long duration at 50 – 60 Hz (A/m) | 300 |
| Magnetic field immunity, IEC 61000-4-8, short duration at 50 – 60 Hz (A/m) | 1000 |
| Magnetic pulse immunity, IEC 61000-4-9 (A/m) | 300 |
| Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 1890 MHz | 10 Kg/Km |
| Relative humidity, IEC 60068-2-30 (test Db, unpackaged damp heat), non-condensing | 5 % |
| Surge transient immunity, IEC 61000-4-5, line-earth (CM) on alarm ports | ñ2 kV |
| Surge transient immunity, IEC 61000-4-5, line-earth (CM) on DC power ports | ñ2 kV |
| Surge transient immunity, IEC 61000-4-5, line-line (DM) on alarm ports | ñ1 kV |
| Surge transient immunity, IEC 61000-4-5, line-line (DM) on DC power ports | ñ1 kV |
| Temperature, non-operating, IEC 60068-2-1 (test Ab, unpackaged non-operating cold) | -40 ðC |
| Temperature, non-operating, IEC 60068-2-14 (test Na, unpackaged non-operating thermal shock) | -40 ðC |
| Temperature, non-operating, IEC 60068-2-2 (test Bb, unpackaged non-operating dry heat) | -40 ðC |
| Vibration, IEC 60068-2-6 (test Fc, operating) at 5 – 150 Hz | 1 g |
| Voltage variation, IEC 61000-4-29, interruption on DC power ports | 10 ms |
