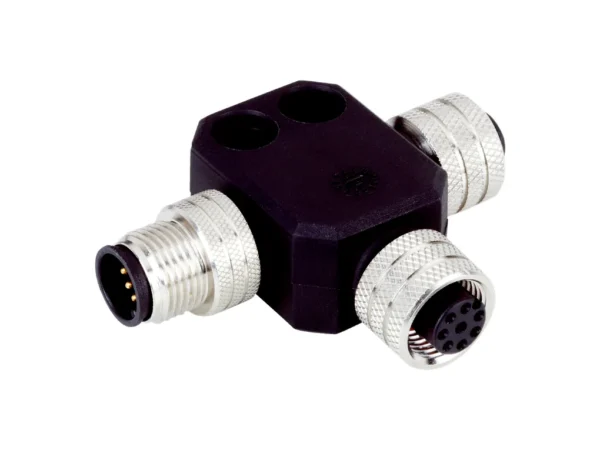

Home Emniyet Switchleri STR1-XXA T-JUNCTION – 5339609 🔍 STR1-XXA T-JUNCTION – 5339609 ✉ Teklif Al Teklif Al Stok kodu: 5339609 Kategoriler: Emniyet Switchleri Marka: SICK Açıklama Tecnichal data Technical specifications Accessory family T-junctions Connection type head A Male connector, M12, 5-pin, A-coded Connection type head B Female connector, M12, 5-pin, A-coded Connection type head C Female connector, M12, 8-pin, A-coded Housing material PP Connector material head A PA Connector material head C PA Housing color Black Locking nut material Zinc alloy, nickel-plated Shielding, head Unshielded Reference voltage ≤ 30 V DC Current loading ≤ 5 A, A-B, A/B-C Note M12 male connector, 5-pin, A-coded, on 1 x M12 female connector, 5-pin, A-coded, on 1 x M12 female connector, 8-pin, A-coded Ambient operating temperature –25 °C … +90 °C Enclosure rating IP68 Description T-connector for safe series connection Classifications ECLASS 5.0 27279201 ECLASS 5.1.4 27279201 ECLASS 6.0 27279201 ECLASS 6.2 27279201 ECLASS 7.0 27279201 ECLASS 8.0 27279201 ECLASS 8.1 27279201 ECLASS 9.0 27440108 ECLASS 10.0 27440108 ECLASS 11.0 27440108 ECLASS 12.0 27440108 ETIM 5.0 EC002585 ETIM 6.0 EC002585 ETIM 7.0 EC002585 ETIM 8.0 EC002585 UNSPSC 16.0901 31163032 İlgili ürünler STR1-SAMM0AC5 – 1069570SICKEmniyet Switchleri ₺3.200,00 Ürüne Git STR1-SAFM10P5 – 1069568SICKEmniyet Switchleri ₺3.200,00 Ürüne Git STR1-SAMM0AC8 – 1069571SICKEmniyet Switchleri ₺3.200,00 Ürüne Git RE23-SA64 – 1062542SICKEmniyet Switchleri ₺3.200,00 Ürüne Git
Tecnichal data Technical specifications Accessory family T-junctions Connection type head A Male connector, M12, 5-pin, A-coded Connection type head B Female connector, M12, 5-pin, A-coded Connection type head C Female connector, M12, 8-pin, A-coded Housing material PP Connector material head A PA Connector material head C PA Housing color Black Locking nut material Zinc alloy, nickel-plated Shielding, head Unshielded Reference voltage ≤ 30 V DC Current loading ≤ 5 A, A-B, A/B-C Note M12 male connector, 5-pin, A-coded, on 1 x M12 female connector, 5-pin, A-coded, on 1 x M12 female connector, 8-pin, A-coded Ambient operating temperature –25 °C … +90 °C Enclosure rating IP68 Description T-connector for safe series connection Classifications ECLASS 5.0 27279201 ECLASS 5.1.4 27279201 ECLASS 6.0 27279201 ECLASS 6.2 27279201 ECLASS 7.0 27279201 ECLASS 8.0 27279201 ECLASS 8.1 27279201 ECLASS 9.0 27440108 ECLASS 10.0 27440108 ECLASS 11.0 27440108 ECLASS 12.0 27440108 ETIM 5.0 EC002585 ETIM 6.0 EC002585 ETIM 7.0 EC002585 ETIM 8.0 EC002585 UNSPSC 16.0901 31163032
