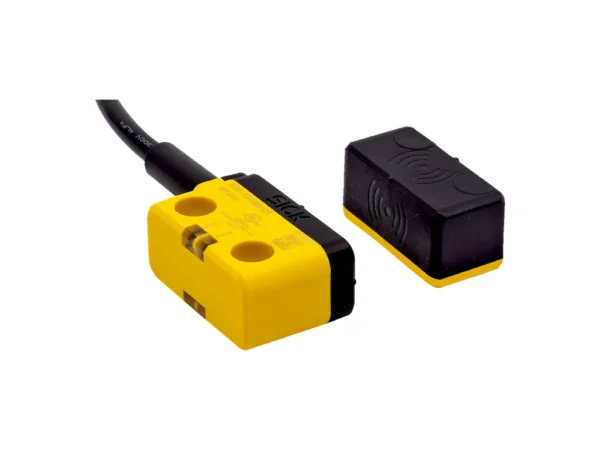

Home Emniyet Switchleri STR1-SACU0BC8 – 1106352 🔍 STR1-SACU0BC8 – 1106352 ✉ Teklif Al Teklif Al Stok kodu: 1106352 Kategoriler: Emniyet Switchleri Marka: SICK Açıklama Tecnichal data Features System part Sensor with actuator Sensor principle RFID Number of safe outputs 2 Auxiliary contact (AUX) 1 (Switching behavior complementary to OSSDs) Safe switch on distance Sao 10 mm (–30 °C … +70 °C) Safe switch off distance Sar 25 mm Active sensor surfaces 3 Active sensor surface Top, sides (left, right) Actuation directions 5 Coding Uniquely coded Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 5,21 x 10-9 TM (mission time) 20 years (EN ISO 13849) Type Type 4 (EN ISO 14119) Actuator coding level High coding level (EN ISO 14119) Safe state in the event of a fault At least one safety-related semiconductor output (OSSD) is in the OFF state. Functions Safe series connection None, only individual wiring (with diagnostics) Interfaces Connection type Cable with plug M8, 8-pin Length of cable 0.2 m Long connecting cable ≤ 200 m Cable diameter 5.5 mm Conductor cross section 0.12 mm² Bend radius (with fixed installation) > 8 x cable diameter Bend radius (with moving cable) > 12 x cable diameter Cable material PVC Conductor material Copper Coupling nut material Zinc die-cast, nickel-plated Display elements LEDs Diagnostics indicator ✔ Status display ✔ Electrical data Protection class III (IEC 61140) Classification according to cULus Class 2 Supply voltage Vs 24 V DC (19.2 V DC … 28.8 V DC) Power consumption 50 mA Type of output Self-monitoring semiconductor outputs (OSSDs) Output current ≤ 100 mA Response time 40 ms Release time 100 ms Risk time 80 ms Switch-on time 2.5 s Mechanical data Dimensions (W x H x D) 40 mm x 18 mm x 26 mm Weight 69 g Housing material VISTAL® Ambient data Enclosure rating IP67, IP69K (EN 60529, ISO 20653) Ambient operating temperature –30 °C … +70 °C Storage temperature –30 °C … +70 °C Vibration resistance 10 Hz … 55 Hz, 1 mm (IEC 60068-2-6) Shock resistance 30 g, 11 ms (IEC 60068-2-27) EMC EN IEC 61326-3-1 EN IEC 60947-5-2 EN IEC 60947-5-3 EN 300330 V2.1.1 Classifications ECLASS 5.0 27272403 ECLASS 5.1.4 27272403 ECLASS 6.0 27272403 ECLASS 6.2 27272403 ECLASS 7.0 27272403 ECLASS 8.0 27272403 ECLASS 8.1 27272403 ECLASS 9.0 27272403 ECLASS 10.0 27272403 ECLASS 11.0 27272403 ECLASS 12.0 27274601 ETIM 5.0 EC001829 ETIM 6.0 EC001829 ETIM 7.0 EC001829 ETIM 8.0 EC001829 UNSPSC 16.0901 39122205 İlgili ürünler RE23-SA05 – 1061726SICKEmniyet Switchleri ₺3.200,00 Ürüne Git STR1-SAMM03P5 – 1069572SICKEmniyet Switchleri ₺3.200,00 Ürüne Git STR1-SAMM0AC5 – 1069570SICKEmniyet Switchleri ₺3.200,00 Ürüne Git STR1-SAMM10P5 – 1069573SICKEmniyet Switchleri ₺3.200,00 Ürüne Git
Tecnichal data Features System part Sensor with actuator Sensor principle RFID Number of safe outputs 2 Auxiliary contact (AUX) 1 (Switching behavior complementary to OSSDs) Safe switch on distance Sao 10 mm (–30 °C … +70 °C) Safe switch off distance Sar 25 mm Active sensor surfaces 3 Active sensor surface Top, sides (left, right) Actuation directions 5 Coding Uniquely coded Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 5,21 x 10-9 TM (mission time) 20 years (EN ISO 13849) Type Type 4 (EN ISO 14119) Actuator coding level High coding level (EN ISO 14119) Safe state in the event of a fault At least one safety-related semiconductor output (OSSD) is in the OFF state. Functions Safe series connection None, only individual wiring (with diagnostics) Interfaces Connection type Cable with plug M8, 8-pin Length of cable 0.2 m Long connecting cable ≤ 200 m Cable diameter 5.5 mm Conductor cross section 0.12 mm² Bend radius (with fixed installation) > 8 x cable diameter Bend radius (with moving cable) > 12 x cable diameter Cable material PVC Conductor material Copper Coupling nut material Zinc die-cast, nickel-plated Display elements LEDs Diagnostics indicator ✔ Status display ✔ Electrical data Protection class III (IEC 61140) Classification according to cULus Class 2 Supply voltage Vs 24 V DC (19.2 V DC … 28.8 V DC) Power consumption 50 mA Type of output Self-monitoring semiconductor outputs (OSSDs) Output current ≤ 100 mA Response time 40 ms Release time 100 ms Risk time 80 ms Switch-on time 2.5 s Mechanical data Dimensions (W x H x D) 40 mm x 18 mm x 26 mm Weight 69 g Housing material VISTAL® Ambient data Enclosure rating IP67, IP69K (EN 60529, ISO 20653) Ambient operating temperature –30 °C … +70 °C Storage temperature –30 °C … +70 °C Vibration resistance 10 Hz … 55 Hz, 1 mm (IEC 60068-2-6) Shock resistance 30 g, 11 ms (IEC 60068-2-27) EMC EN IEC 61326-3-1 EN IEC 60947-5-2 EN IEC 60947-5-3 EN 300330 V2.1.1 Classifications ECLASS 5.0 27272403 ECLASS 5.1.4 27272403 ECLASS 6.0 27272403 ECLASS 6.2 27272403 ECLASS 7.0 27272403 ECLASS 8.0 27272403 ECLASS 8.1 27272403 ECLASS 9.0 27272403 ECLASS 10.0 27272403 ECLASS 11.0 27272403 ECLASS 12.0 27274601 ETIM 5.0 EC001829 ETIM 6.0 EC001829 ETIM 7.0 EC001829 ETIM 8.0 EC001829 UNSPSC 16.0901 39122205
