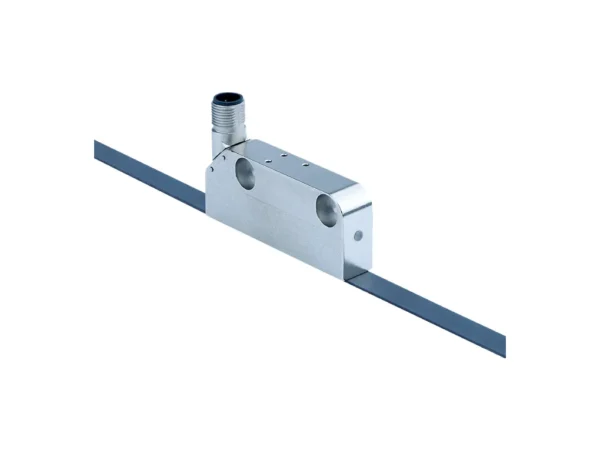

Home Sensör Kabloları STL70-0HA8 – 1116912 🔍 STL70-0HA8 – 1116912 ✉ Teklif Al Teklif Al Stok kodu: 1116912 Kategoriler: Sensör Kabloları Marka: SICK Açıklama Tecnichal data Features Items supplied Magnetic tape not included with delivery Performance Measuring range 0 mm … 16,384 mm Resolution 0.448 µm, For interpolation of the sine/cosine signals with e.g. 12 bit Length of period 2 mm Traversing speed 4.5 m/s, ≤ 10 m/s up to which the absolute position can be reliably produced, dynamic operation (Sin/Cos) Repeatability < 1 µm System accuracy ± 10 µm Max. reading distance 0.8 mm Interfaces Communication interface HIPERFACE® Electrical data Supply voltage 7 V DC … 12 V DC Current consumption < 200 mA Connection type Male connector, M12, 8-pin, universal Status display RGB LED Mechanical data Dimensions See dimensional drawing Scope of delivery Magnetic tape not included with delivery Read head material Zinc diecast Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP67, with mating connector inserted (IEC 60529) Operating temperature range –30 °C … +85 °C Storage temperature range –40 °C … +85 °C, without package Permissible relative humidity 100 %, condensation permitted Resistance to shocks 500 m/s², 11 ms (EN 60068-2-27) Resistance to vibration 100 m/s², 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270705 eCl@ss 5.1.4 27270705 eCl@ss 6.0 27270705 eCl@ss 6.2 27270705 eCl@ss 7.0 27270705 eCl@ss 8.0 27270705 eCl@ss 8.1 27270705 eCl@ss 9.0 27270705 eCl@ss 10.0 27270705 eCl@ss 11.0 27270705 eCl@ss 12.0 27273902 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC001486 UNSPSC 16.0901 41111613 İlgili ürünler Endüstriyel bağlantı kablosu – 889D-M4WE-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-F4HE-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889P-P3AB-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889M-FX9AE-15ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git
Tecnichal data Features Items supplied Magnetic tape not included with delivery Performance Measuring range 0 mm … 16,384 mm Resolution 0.448 µm, For interpolation of the sine/cosine signals with e.g. 12 bit Length of period 2 mm Traversing speed 4.5 m/s, ≤ 10 m/s up to which the absolute position can be reliably produced, dynamic operation (Sin/Cos) Repeatability < 1 µm System accuracy ± 10 µm Max. reading distance 0.8 mm Interfaces Communication interface HIPERFACE® Electrical data Supply voltage 7 V DC … 12 V DC Current consumption < 200 mA Connection type Male connector, M12, 8-pin, universal Status display RGB LED Mechanical data Dimensions See dimensional drawing Scope of delivery Magnetic tape not included with delivery Read head material Zinc diecast Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP67, with mating connector inserted (IEC 60529) Operating temperature range –30 °C … +85 °C Storage temperature range –40 °C … +85 °C, without package Permissible relative humidity 100 %, condensation permitted Resistance to shocks 500 m/s², 11 ms (EN 60068-2-27) Resistance to vibration 100 m/s², 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270705 eCl@ss 5.1.4 27270705 eCl@ss 6.0 27270705 eCl@ss 6.2 27270705 eCl@ss 7.0 27270705 eCl@ss 8.0 27270705 eCl@ss 8.1 27270705 eCl@ss 9.0 27270705 eCl@ss 10.0 27270705 eCl@ss 11.0 27270705 eCl@ss 12.0 27273902 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC001486 UNSPSC 16.0901 41111613
