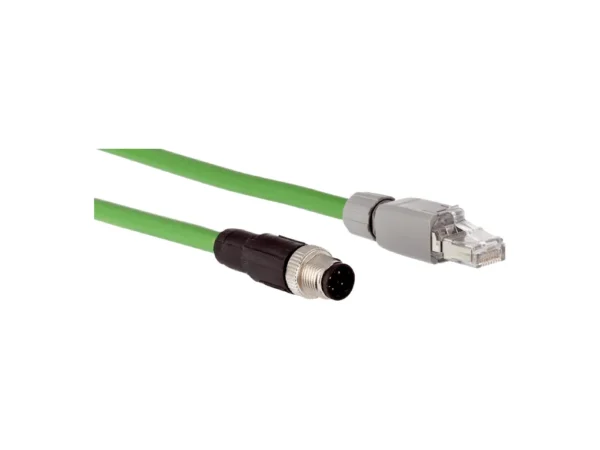

Home Sensör Kabloları SSL-2J04-G10MR – 6049507 🔍 SSL-2J04-G10MR – 6049507 ✉ Teklif Al Teklif Al Stok kodu: 6049507 Kategoriler: Sensör Kabloları Marka: SICK Açıklama Tecnichal data Technical specifications Accessory group Plug connectors and cables Accessory family Connection cables Connection type head A Male connector, M12, 4-pin, straight, D-coded Connection type head B Male connector, RJ45, 8-pin, straight Connector color Black Locking nut material Zinc die-cast, nickel-plated Tightening torque 0.4 Nm Cable 10 m, 4-wire, CAT5, CAT5e, PUR, halogen-free Jacket material PUR, halogen-free Jacket color Green Cable diameter 6.5 mm Conductor cross section 4 x 0.34 mm² Shielding Shielded Bending radius Flexible use > 5 x cable diameter Stationary position > 5 x cable diameter Reference voltage ≤ 50 V Current loading 1 A Signal type PROFINET Torsion force ± 180° Torsion cycles 1,000,000 Application Zones with oils and lubricants Robot Enclosure rating IP67 (M12), IP20 (RJ45) Ambient operating temperature Flexible use –40 °C … +80 °C Stationary position –40 °C … +80 °C Head –25 °C … +80 °C Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604 İlgili ürünler Endüstriyel bağlantı kablosu – 889D-F4HC-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-F4UC-20ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-E4HJ-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-R8AB-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git
Tecnichal data Technical specifications Accessory group Plug connectors and cables Accessory family Connection cables Connection type head A Male connector, M12, 4-pin, straight, D-coded Connection type head B Male connector, RJ45, 8-pin, straight Connector color Black Locking nut material Zinc die-cast, nickel-plated Tightening torque 0.4 Nm Cable 10 m, 4-wire, CAT5, CAT5e, PUR, halogen-free Jacket material PUR, halogen-free Jacket color Green Cable diameter 6.5 mm Conductor cross section 4 x 0.34 mm² Shielding Shielded Bending radius Flexible use > 5 x cable diameter Stationary position > 5 x cable diameter Reference voltage ≤ 50 V Current loading 1 A Signal type PROFINET Torsion force ± 180° Torsion cycles 1,000,000 Application Zones with oils and lubricants Robot Enclosure rating IP67 (M12), IP20 (RJ45) Ambient operating temperature Flexible use –40 °C … +80 °C Stationary position –40 °C … +80 °C Head –25 °C … +80 °C Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604
