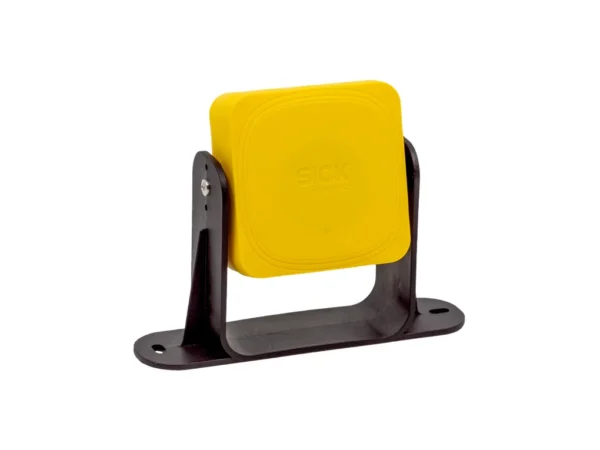

Home Emniyet Switchleri SRA2-AAR140AKZI SAFERADAR SENSOR – 6073487 🔍 SRA2-AAR140AKZI SAFERADAR SENSOR – 6073487 ✉ Teklif Al Teklif Al Stok kodu: 6073487 Kategoriler: Emniyet Switchleri Marka: SICK Açıklama Tecnichal data Features Application Indoor Scope Stationary Protective field range 1 m … 4 m Warning field range 1 m … 4 m Number of protective fields 1 Field of view Large 110° (horizontal plane) 30° (vertical plane) Narrow 50° (horizontal plane) 15° (vertical plane) Response time ≤ 100 ms Safety-related parameters Safety integrity level SIL 2 (IEC 62061) Category Category 2 (outputs category 3) (EN ISO 13849) Performance level PL d (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 4.34 x 10-8 MTTFD (mean time to dangerous failure) 40 years (IEC 60050) TM (mission time) 20 years (EN ISO 13849) Safe state in the event of a fault At least one safety relay is in the OFF state Functions Restart interlock ✔ Muting ✔ Manipulation protection ✔ Safe detection of a person ✔ Interfaces Connection type Voltage supply and signal transmission Male connector, M12, 5-pin, A-coded Female connector, M12, 5-pin, A-coded Electrical data Supply voltage Vs 24 V DC (20 V DC … 28 V DC) Power consumption ≤ 0.6 A Power consumption ≤ 11 W, control unit and six sensors Mechanical data Dimensions (W x H x D) 85 mm x 85 mm x 53 mm Housing material PA 66 Ambient data Enclosure rating IP67 (IEC 60529) Ambient operating temperature –40 °C … +60 °C Storage temperature –40 °C … +80 °C Other information Bandwidth 24 GHz … 24.25 GHz Transmissin power ≤ 13 dBm Radio class Class 2 (2014/53/EU, RED – radio equipment) Detection method FMCW radar for motion detection Items supplied safeRS sensor Safety instruction Mounting instructions Operating instructions for download safeRS3 Designer (configuration and diagnostic software) for download Classifications ECLASS 5.0 27270890 ECLASS 5.1.4 27270890 ECLASS 6.0 27280800 ECLASS 6.2 27280800 ECLASS 7.0 27280890 ECLASS 8.0 27280890 ECLASS 8.1 27280890 ECLASS 9.0 27280890 ECLASS 10.0 27280890 ECLASS 11.0 27280890 ECLASS 12.0 27280890 ETIM 5.0 EC001825 ETIM 6.0 EC001825 ETIM 7.0 EC001825 ETIM 8.0 EC001825 UNSPSC 16.0901 39121528 İlgili ürünler STR1-SAMM0AC5 – 1069570SICKEmniyet Switchleri ₺3.200,00 Ürüne Git STR1-SAFM0AC5 – 1069565SICKEmniyet Switchleri ₺3.200,00 Ürüne Git STR1-SASM10P8 – 1069569SICKEmniyet Switchleri ₺3.200,00 Ürüne Git RE23-SA05 – 1061726SICKEmniyet Switchleri ₺3.200,00 Ürüne Git
Tecnichal data Features Application Indoor Scope Stationary Protective field range 1 m … 4 m Warning field range 1 m … 4 m Number of protective fields 1 Field of view Large 110° (horizontal plane) 30° (vertical plane) Narrow 50° (horizontal plane) 15° (vertical plane) Response time ≤ 100 ms Safety-related parameters Safety integrity level SIL 2 (IEC 62061) Category Category 2 (outputs category 3) (EN ISO 13849) Performance level PL d (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 4.34 x 10-8 MTTFD (mean time to dangerous failure) 40 years (IEC 60050) TM (mission time) 20 years (EN ISO 13849) Safe state in the event of a fault At least one safety relay is in the OFF state Functions Restart interlock ✔ Muting ✔ Manipulation protection ✔ Safe detection of a person ✔ Interfaces Connection type Voltage supply and signal transmission Male connector, M12, 5-pin, A-coded Female connector, M12, 5-pin, A-coded Electrical data Supply voltage Vs 24 V DC (20 V DC … 28 V DC) Power consumption ≤ 0.6 A Power consumption ≤ 11 W, control unit and six sensors Mechanical data Dimensions (W x H x D) 85 mm x 85 mm x 53 mm Housing material PA 66 Ambient data Enclosure rating IP67 (IEC 60529) Ambient operating temperature –40 °C … +60 °C Storage temperature –40 °C … +80 °C Other information Bandwidth 24 GHz … 24.25 GHz Transmissin power ≤ 13 dBm Radio class Class 2 (2014/53/EU, RED – radio equipment) Detection method FMCW radar for motion detection Items supplied safeRS sensor Safety instruction Mounting instructions Operating instructions for download safeRS3 Designer (configuration and diagnostic software) for download Classifications ECLASS 5.0 27270890 ECLASS 5.1.4 27270890 ECLASS 6.0 27280800 ECLASS 6.2 27280800 ECLASS 7.0 27280890 ECLASS 8.0 27280890 ECLASS 8.1 27280890 ECLASS 9.0 27280890 ECLASS 10.0 27280890 ECLASS 11.0 27280890 ECLASS 12.0 27280890 ETIM 5.0 EC001825 ETIM 6.0 EC001825 ETIM 7.0 EC001825 ETIM 8.0 EC001825 UNSPSC 16.0901 39121528
