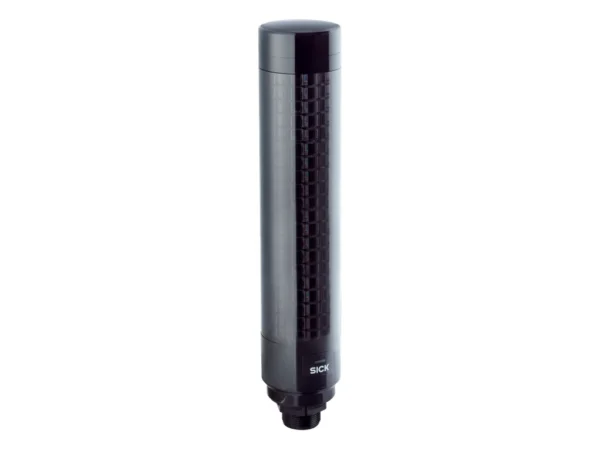

Home Diğer (Montaj / Aksesuar) SLT060-0B010J700 – 6075938 🔍 SLT060-0B010J700 – 6075938 ✉ Teklif Al Teklif Al Stok kodu: 6075938 Kategoriler: Diğer (Montaj / Aksesuar) Marka: SICK Açıklama Tecnichal data Features Product category LED signal lamp Application Indoor area Features Number of colors 21, pre-defined Number of LED segments 20 Types of light Continuous light, blinking light, flashing light, pulse light Light frequency Slow (0.5 Hz), medium (1.5 Hz), fast (2.0 Hz) Dimmer function Yes Brightness levels 0% … 100%, can be adjusted in 10% increments Operating modes Signal lamp mode ✔ Filling level mode ✔ Animation mode ✔ Further functions IO-Link signal lamp Parameterization via IO-Link Simple configuration directly via the SOPAS ET user interface, the engineering tool from SICK Mechanics/electronics Connections IO-Link 1 x M12, 5-pin male connector, A-coded Nominal voltage 24 V DC Supply voltage 18 V DC … 30 V DC Current consumption ≤ 300 mA Switch-on current 30 A Switch-on time 0.1 ms Housing material Polycarbonat (PC) Housing color Black Weight 590 g Dimensions (W x H x D) 60 mm x 306 mm x 60 mm Mounting direction Vertical Protection class III Enclosure rating IP65 UL File No. E198242 Communication interface Communication interface IO-Link V1.12, Port Class A Communication Interface detail COM2 (38,4 kBaud) Cycle time < 8 ms Process data length 2 Byte Out Operator interfaces SOPAS ET, the engineering tool for configuration (connection to an IO-Link master required) Additional interfaces Interface for accessories for beeper SLB060-0B010K700 Optical indicators 1 LED (green, for IO-Link communication) Ambient data Ambient operating temperature –25 °C … +50 °C Ambient temperature, storage –30 °C … +60 °C Permissible relative humidity 90 % (Non-condensing) Electromagnetic compatibility (EMC) EN 61000-6-4 / EN 61000-6-2 Classifications eCl@ss 5.0 27371220 eCl@ss 5.1.4 27371220 eCl@ss 6.0 27371220 eCl@ss 6.2 27371220 eCl@ss 7.0 27371220 eCl@ss 8.0 27371220 eCl@ss 8.1 27371220 eCl@ss 9.0 27371220 eCl@ss 10.0 27371220 eCl@ss 11.0 27371220 eCl@ss 12.0 27371220 ETIM 5.0 EC000232 ETIM 6.0 EC000232 ETIM 7.0 EC000232 ETIM 8.0 EC000232 UNSPSC 16.0901 39121107 İlgili ürünler IE-SFP/1250-ED SSLX-SM1310-SC – 808-38221AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSBX-SM1490-LC – 808-38728AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP MODULE 1000BASE-SX, MM 550M – SFP-1000SX-M-550M-TAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSLX-SM1550/PLUS-LC – 808-38724AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git
Tecnichal data Features Product category LED signal lamp Application Indoor area Features Number of colors 21, pre-defined Number of LED segments 20 Types of light Continuous light, blinking light, flashing light, pulse light Light frequency Slow (0.5 Hz), medium (1.5 Hz), fast (2.0 Hz) Dimmer function Yes Brightness levels 0% … 100%, can be adjusted in 10% increments Operating modes Signal lamp mode ✔ Filling level mode ✔ Animation mode ✔ Further functions IO-Link signal lamp Parameterization via IO-Link Simple configuration directly via the SOPAS ET user interface, the engineering tool from SICK Mechanics/electronics Connections IO-Link 1 x M12, 5-pin male connector, A-coded Nominal voltage 24 V DC Supply voltage 18 V DC … 30 V DC Current consumption ≤ 300 mA Switch-on current 30 A Switch-on time 0.1 ms Housing material Polycarbonat (PC) Housing color Black Weight 590 g Dimensions (W x H x D) 60 mm x 306 mm x 60 mm Mounting direction Vertical Protection class III Enclosure rating IP65 UL File No. E198242 Communication interface Communication interface IO-Link V1.12, Port Class A Communication Interface detail COM2 (38,4 kBaud) Cycle time < 8 ms Process data length 2 Byte Out Operator interfaces SOPAS ET, the engineering tool for configuration (connection to an IO-Link master required) Additional interfaces Interface for accessories for beeper SLB060-0B010K700 Optical indicators 1 LED (green, for IO-Link communication) Ambient data Ambient operating temperature –25 °C … +50 °C Ambient temperature, storage –30 °C … +60 °C Permissible relative humidity 90 % (Non-condensing) Electromagnetic compatibility (EMC) EN 61000-6-4 / EN 61000-6-2 Classifications eCl@ss 5.0 27371220 eCl@ss 5.1.4 27371220 eCl@ss 6.0 27371220 eCl@ss 6.2 27371220 eCl@ss 7.0 27371220 eCl@ss 8.0 27371220 eCl@ss 8.1 27371220 eCl@ss 9.0 27371220 eCl@ss 10.0 27371220 eCl@ss 11.0 27371220 eCl@ss 12.0 27371220 ETIM 5.0 EC000232 ETIM 6.0 EC000232 ETIM 7.0 EC000232 ETIM 8.0 EC000232 UNSPSC 16.0901 39121107
