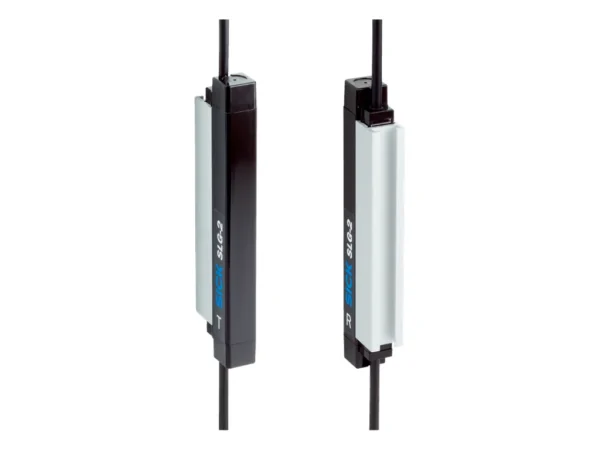

Home Işık Perdeleri SLG10S-020FAKA1K01 – 1222990 🔍 SLG10S-020FAKA1K01 – 1222990 ✉ Teklif Al Teklif Al Stok kodu: 1222990 Kategoriler: Işık Perdeleri Marka: SICK Açıklama Tecnichal data Features Device version FlexChain Guest Sensor principle Sender/receiver Light grid system Minimum detectable object (MDO) 15 mm Beam separation 10 mm Optical light exit Flat Number of beams 20 Detection height 200 mm Mechanics/electronics Light source Infrared light Wave length 850 nm Supply voltage Vs Via FlexChain (host) Output load, capacitive 100 nF Output load, Inductive 1 H Initialization time 1 s Dimensions (W x H x D) 11.8 mm x 199.2 mm x 24.1 mm Connection type Cable with M8 male connector, 4-pin, Cable with female connector, M8, 4-pin, 0.5 m Indication LED Synchronization Via FlexChain (host) Enclosure rating IP65, IP67 Circuit protection UV connections, reverse polarity protected Interference pulse suppression Outputs overcurrent and short-circuit protected Protection class III Weight 146 g Front screen PMMA Performance Maximum range 6 m Minimum range ≥ 0 m Operating range 4 m Scanning time 1.1 ms Ambient data Shock resistance 10 g, 16 ms, DIN EN 60068-2-27 Vibration resistance 10-150 Hz 0.5 mm, IEC 60068-2-6 EMC EN 61000-6-2, EN 61000-6-4 Ambient light immunity Direct: 30,000 lx Ambient operating temperature –25 °C … +55 °C Ambient temperature, storage –25 °C … +70 °C Classifications ECLASS 5.0 27270910 ECLASS 5.1.4 27270910 ECLASS 6.0 27270910 ECLASS 6.2 27270910 ECLASS 7.0 27270910 ECLASS 8.0 27270910 ECLASS 8.1 27270910 ECLASS 9.0 27270910 ECLASS 10.0 27270910 ECLASS 11.0 27270910 ECLASS 12.0 27270910 ETIM 5.0 EC002549 ETIM 6.0 EC002549 ETIM 7.0 EC002549 ETIM 8.0 EC002549 UNSPSC 16.0901 39121528 İlgili ürünler Transceiver, LineE 1350 – 14mm, Product line E, Type4/Cat.4, 14mm Finger resolution, Protective height: 1350 mm, Laser integrated, Enclosure rating IP65, GuardShield – 450L-E4FL1350YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Transceiver, LineE 1050 – 30mm, Product line E, Type4/Cat.4, 30mm Hand resolution, Protective height: 1050 mm, Laser integrated, Enclosure rating IP65, GuardShield – 450L-E4HL1050YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Safety Light Curtain, GuardShield, Type 4, Cascade, Pair, Resolution 14mm, Protected Height 1280mm, with Laser – 440L-C4JL1280YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Transceiver, LineE 300 – 30mm, Product line E, Type4/Cat.4, 30mm Hand resolution, Protective height: 300 mm, Laser integrated, Enclosure rating IP65, GuardShield – 450L-E4HL0300YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git
Tecnichal data Features Device version FlexChain Guest Sensor principle Sender/receiver Light grid system Minimum detectable object (MDO) 15 mm Beam separation 10 mm Optical light exit Flat Number of beams 20 Detection height 200 mm Mechanics/electronics Light source Infrared light Wave length 850 nm Supply voltage Vs Via FlexChain (host) Output load, capacitive 100 nF Output load, Inductive 1 H Initialization time 1 s Dimensions (W x H x D) 11.8 mm x 199.2 mm x 24.1 mm Connection type Cable with M8 male connector, 4-pin, Cable with female connector, M8, 4-pin, 0.5 m Indication LED Synchronization Via FlexChain (host) Enclosure rating IP65, IP67 Circuit protection UV connections, reverse polarity protected Interference pulse suppression Outputs overcurrent and short-circuit protected Protection class III Weight 146 g Front screen PMMA Performance Maximum range 6 m Minimum range ≥ 0 m Operating range 4 m Scanning time 1.1 ms Ambient data Shock resistance 10 g, 16 ms, DIN EN 60068-2-27 Vibration resistance 10-150 Hz 0.5 mm, IEC 60068-2-6 EMC EN 61000-6-2, EN 61000-6-4 Ambient light immunity Direct: 30,000 lx Ambient operating temperature –25 °C … +55 °C Ambient temperature, storage –25 °C … +70 °C Classifications ECLASS 5.0 27270910 ECLASS 5.1.4 27270910 ECLASS 6.0 27270910 ECLASS 6.2 27270910 ECLASS 7.0 27270910 ECLASS 8.0 27270910 ECLASS 8.1 27270910 ECLASS 9.0 27270910 ECLASS 10.0 27270910 ECLASS 11.0 27270910 ECLASS 12.0 27270910 ETIM 5.0 EC002549 ETIM 6.0 EC002549 ETIM 7.0 EC002549 ETIM 8.0 EC002549 UNSPSC 16.0901 39121528
