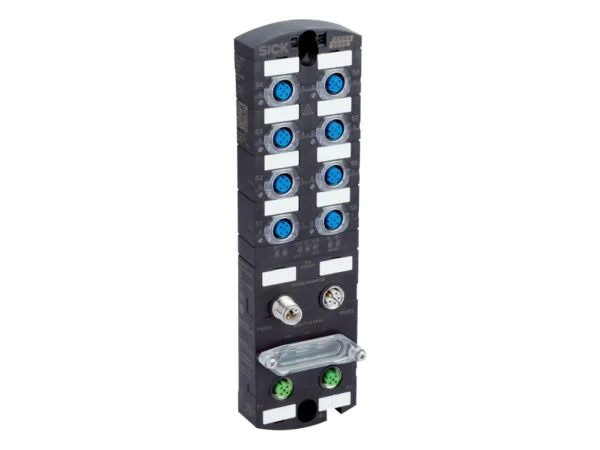

Name: SICK 6076924 | Plc Modülü | Royal Endüstriyel
Brand: SICK
SKU: 6076924
Price: 8500.00 TRY
Availability: InStock

Tecnichal data

Features

Product category	IO-Link Master
Supported products	IO-Link Devices Binary switching sensors Binary actuators
Further functions	Web server integrated IIoT interface available (dual talk)
Items supplied	SIG350-0006AP100, Marking labels, quickstart

Mechanics/electronics

Connections
IO-Link	8 x M12, 5-pin female connector, A-coded
Power	1 x M12, 5-pin male connector, L-coded 1 x M12, 5-pin female connector, L-coded
Ethernet	2 x M12, 4-pin female connector, D-coded

Power voltage supply
Supply voltage	18 V DC … 30 V DC
Current carrying capacity (PWR1, PWR2) max.	≤ 16 A, U_S
	≤ 16 A, U_A

Current consumption
	≤ 180 mA

Voltage supply U_S (sensors)
Total current (S1 … S8)	≤ 10 A
Voltage supply (pin 1)	2 A
Output current (DO) (pin 2 + pin 4)	2 A
Current carrying capacity per port max.	4 A

Voltage supply U_A (actuators)
Total current (S1 … S8)	≤ 10 A
Voltage supply (pin 2)	2 A
Current carrying capacity per port max.	4 A

Digital inputs
Number	16, configurable
Input characteristics	EN 61131-2 type 1 and type 3
Type	PNP
Filter time	0 ms … 15 ms
Delay time at signal change	2 ms … 5 ms
Circuit protection	Short-circuit protected (MOSFET with current measurement)

Digital outputs
Number	16, configurable
Type	PNP
Switching frequency	≤ 50 Hz
Circuit protection	Short-circuit protected (MOSFET with current measurement)

Optical indicators

8 LED green/yellow/red (Communication pin 4)

8 LED yellow/red (Communication pin 2)

1 LED green/red (device status)

1 LED green/yellow (Network status)

1 LED green (PLC operational status)

1 LED red (PLC configuration)

3 LED green (PLC communication)

2 LED green/red (power supply)

Enclosure rating

IP67 (In fastened condition)

Protection class

III

Contamination rating

Housing material

Plastic (Valox 553)

Housing color

Dark gray

Weight

486 g

Dimensions (L x W x H)

225 mm x 63 mm x 37.4 mm

UL File No.

E238799

Communication interface

IO-Link	✔ , V1.1
Number of ports	8
Port Class	A/B
Data transmission rate	COM1, COM2, COM3
Additional features	Data Storage

Ethernet

✔

EtherCAT^®	✔
Number of ports	2
Data transmission rate	10/100 MBit/s
Cycle time	≥ 250 µs
Addressing	Auto-increment, fixed addressing (rotary switch: static EtherCAT address (0-99))
Factory setting	Static IP address 0.0.0.0, DHCP client not activated

REST API	✔
Specification	JSON integration for IO-Link version (V1.0.0)

MQTT	✔
Specification	JSON integration for IO-Link version (V1.0.0)

OPC UA	✔
Specification	IO-Link Companion Specification Version (V1.0)

Operator interfaces

Integrated web server (a suitable EtherCAT PLC is required to activate the web server)

Ambient data

Ambient operating temperature	–25 °C … +70 °C
Ambient temperature, storage	–40 °C … +80 °C
Electromagnetic compatibility (EMC)	EN 61000-6-2:2016 EN 61000-6-4:2020
Shock load	EN 60068-2-27

Classifications

eCl@ss 5.0	27242208
eCl@ss 5.1.4	27242608
eCl@ss 6.0	27242608
eCl@ss 6.2	27242608
eCl@ss 7.0	27242608
eCl@ss 8.0	27242608
eCl@ss 8.1	27242608
eCl@ss 9.0	27242608
eCl@ss 10.0	27242608
eCl@ss 11.0	27242608
eCl@ss 12.0	27242608
ETIM 5.0	EC001604
ETIM 6.0	EC001604
ETIM 7.0	EC001604
ETIM 8.0	EC001604
UNSPSC 16.0901	32151705
